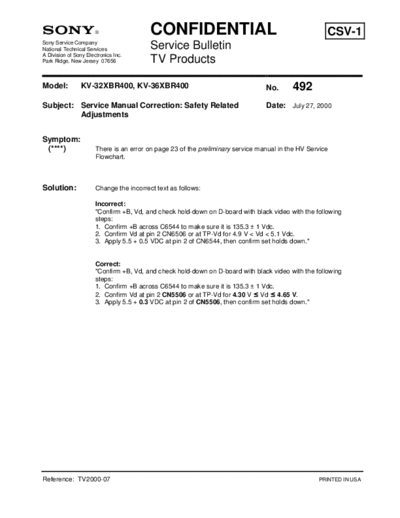

                                          CONFIDENTIAL                                                CSV-1
Sony Service Company
National Technical Services               Service Bulletin
A Division of Sony Electronics Inc.
Park Ridge, New Jersey 07656              TV Products

Model:          KV-32XBR400, KV-36XBR400                                         No.      492
Subject: Service Manual Correction: Safety Related                               Date: July 27, 2000
         Adjustments


Symptom:
 (****)                There is an error on page 23 of the preliminary service manual in the HV Service
                       Flowchart.



Solution:              Change the incorrect text as follows:

                       Incorrect:
                       "Confirm +B, Vd, and check hold-down on D-board with black video with the following
                       steps:
                       1. Confirm +B across C6544 to make sure it is 135.3
