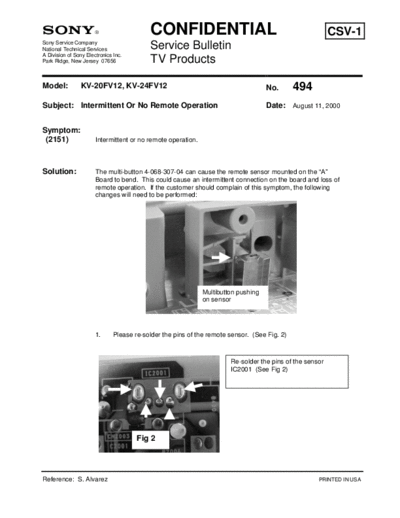

Image preview - the first page of the document
>> Download TVP0494 documenatation <<
Text preview - extract from the document
CONFIDENTIAL CSV-1
Sony Service Company
National Technical Services Service Bulletin
A Division of Sony Electronics Inc.
Park Ridge, New Jersey 07656 TV Products
Model: KV-20FV12, KV-24FV12 No. 494
Subject: Intermittent Or No Remote Operation Date: August 11, 2000
Symptom:
(2151) Intermittent or no remote operation.
Solution: The multi-button 4-068-307-04 can cause the remote sensor mounted on the "A"
Board to bend. This could cause an intermittent connection on the board and loss of
remote operation. If the customer should complain of this symptom, the following
changes will need to be performed:
Multibutton pushing
on sensor
1. Please re-solder the pins of the remote sensor. (See Fig. 2)
Re-solder the pins of the sensor
IC2001 (See Fig 2)
Fig 2
Reference: S. Alvarez PRINTED IN USA
TV Products Service Bulletin No. 494
2. Cut the Multibutton plastic housing as shown in Figures 3 through 4.
Area of Multibutton to be cut is shown in
the picture.
Multibutton 4-068-307-04
Fig 3
2. Cut these ribs at least 1mm. (See figures 4, 5, 6, & 7)
Fig 4
Fig 5
1. Cut with pliers at least 1mm of the plastic as the
picture shows in Fig 5.
2
TV Products Service Bulletin No. 494
2. Cut the rib back as a groove as shown in the
picture & diagram of Fig 6.
Not drawn to
scale
To convert millimeters
to inches multiply by
0.03937
Fig 6
3. Finally, cut the right side of the rib as
shown in the picture.of Fig 7.
Fig 7
Original condition 4. Final condition of the multibutton, to
Fig 8 install in the bezel should be as the
picture shows in Fig 8.
3
