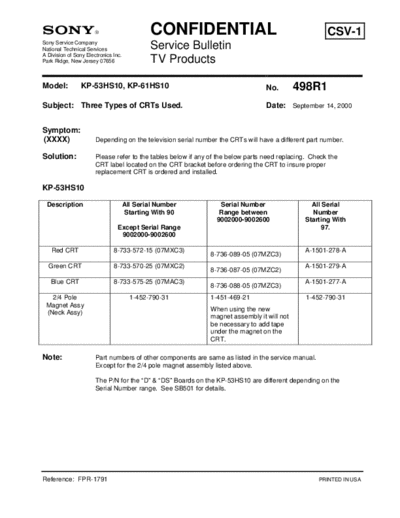

Image preview - the first page of the document



>> Download TVP0498 documenatation <<

Text preview - extract from the document

                                              CONFIDENTIAL                                             CSV-1
Sony Service Company
National Technical Services                   Service Bulletin
A Division of Sony Electronics Inc.
Park Ridge, New Jersey 07656                  TV Products

Model:          KP-53HS10, KP-61HS10                                              No.        498R1
Subject: Three Types of CRTs Used.                                                Date: September 14, 2000


Symptom:
(XXXX)                 Depending on the television serial number the CRTs will have a different part number.

Solution:              Please refer to the tables below if any of the below parts need replacing. Check the
                       CRT label located on the CRT bracket before ordering the CRT to insure proper
                       replacement CRT is ordered and installed.

KP-53HS10

  Description                         All Serial Number           Serial Number                  All Serial
                                       Starting With 90           Range between                  Number
                                                                 9002000-9002600               Starting With
                                 Except Serial Range                                                 97.
                                  9002000-9002600

   Red CRT                     8-733-572-15 (07MXC3)                                           A-1501-278-A
                                                               8-736-089-05 (07MZC3)
  Green CRT                    8-733-570-25 (07MXC2)                                           A-1501-279-A
                                                               8-736-087-05 (07MZC2)
   Blue CRT                    8-733-575-25 (07MAC3)                                           A-1501-277-A
                                                               8-736-088-05 (07MZC3)
   2/4 Pole                             1-452-790-31           1-451-469-21                     1-452-790-31
 Magnet Assy
                                                               When using the new
 (Neck Assy)
                                                               magnet assembly it will not
                                                               be necessary to add tape
                                                               under the magnet on the
                                                               CRT.

Note:                  Part numbers of other components are same as listed in the service manual.
                       Except for the 2/4 pole magnet assembly listed above.

                       The P/N for the "D" & "DS" Boards on the KP-53HS10 are different depending on the
                       Serial Number range. See SB501 for details.




Reference: FPR-1791                                                                                 PRINTED IN USA
  TV Products Service Bulletin No. 498R1


KP-61HS10
              Description            All Serial Number       Serial Number Range
                                      Starting With 90              Between
                                                              9000600
