S CONFIDENTIAL CSV-1
Sony Service Company
National Technical Services Service Bulletin
A Division of Sony Electronics Inc.
Park Ridge, New Jersey 07656 TV Products
Model: KD-34XBR2, KV-32XBR400, KV-32XBR450, No. 546
KV-32HS20, KV-36XBR400, KV-36XBR450,
KV-36HS20
Subject: Part Number For Main Power Switch Plastic Date: August 21, 2001
Actuator.
Symptom:
(****) The plastic actuator piece mounted on the stem of the main power switch is not
shown in the service manual.
Solution: The plastic bracket that the HA board is mounted on has an extra actuator piece
molded in. This piece can be twisted out and used in place of the original piece if it
becomes lost. There is no part number for the actuator piece.

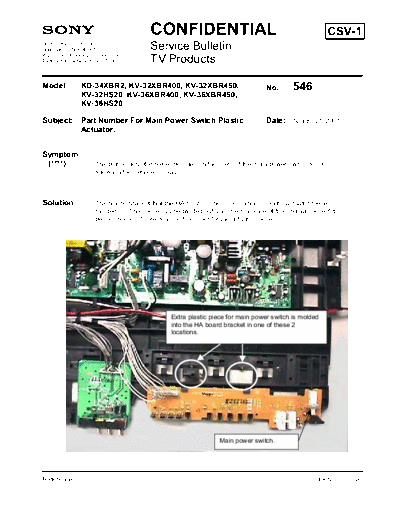

Extra plastic piece for main power switch is molded
into the HA board bracket in one of these 2
locations.
Main power switch.
Reference: PRINTED IN USA
