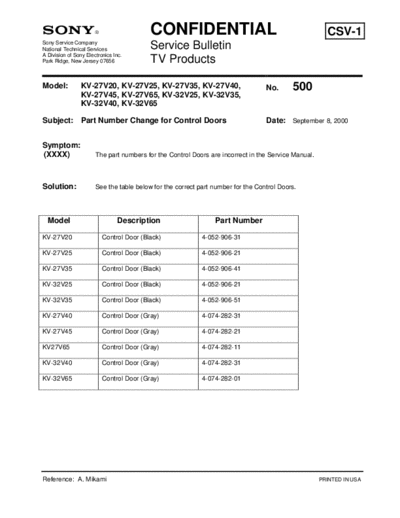

Image preview - the first page of the document
>> Download TVP0500 documenatation <<
Text preview - extract from the document
CONFIDENTIAL CSV-1
Sony Service Company
National Technical Services Service Bulletin
A Division of Sony Electronics Inc.
Park Ridge, New Jersey 07656 TV Products
Model: KV-27V20, KV-27V25, KV-27V35, KV-27V40, No. 500
KV-27V45, KV-27V65, KV-32V25, KV-32V35,
KV-32V40, KV-32V65
Subject: Part Number Change for Control Doors Date: September 8, 2000
Symptom:
(XXXX) The part numbers for the Control Doors are incorrect in the Service Manual.
Solution: See the table below for the correct part number for the Control Doors.
Model Description Part Number
KV-27V20 Control Door (Black) 4-052-906-31
KV-27V25 Control Door (Black) 4-052-906-21
KV-27V35 Control Door (Black) 4-052-906-41
KV-32V25 Control Door (Black) 4-052-906-21
KV-32V35 Control Door (Black) 4-052-906-51
KV-27V40 Control Door (Gray) 4-074-282-31
KV-27V45 Control Door (Gray) 4-074-282-21
KV27V65 Control Door (Gray) 4-074-282-11
KV-32V40 Control Door (Gray) 4-074-282-31
KV-32V65 Control Door (Gray) 4-074-282-01
Reference: A. Mikami PRINTED IN USA
