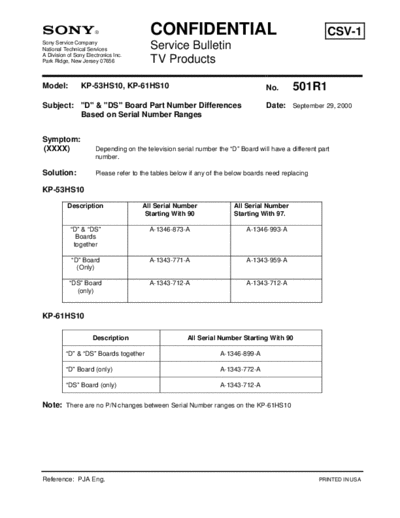

Image preview - the first page of the document



>> Download TVP0501 documenatation <<

Text preview - extract from the document

                                          CONFIDENTIAL                                                  CSV-1
Sony Service Company
National Technical Services               Service Bulletin
A Division of Sony Electronics Inc.
Park Ridge, New Jersey 07656              TV Products

Model:          KP-53HS10, KP-61HS10                                              No.       501R1
Subject: "D" & "DS" Board Part Number Differences                                 Date: September 29, 2000
         Based on Serial Number Ranges


Symptom:
(XXXX)                 Depending on the television serial number the "D" Board will have a different part
                       number.

Solution:              Please refer to the tables below if any of the below boards need replacing

KP-53HS10

           Description                 All Serial Number               All Serial Number
                                        Starting With 90               Starting With 97.

            "D" & "DS"                   A-1346-873-A                      A-1346-993-A
              Boards
             together

            "D" Board                    A-1343-771-A                      A-1343-959-A
              (Only)

           "DS" Board                    A-1343-712-A                      A-1343-712-A
             (only)


KP-61HS10

                      Description                      All Serial Number Starting With 90

          "D" & "DS" Boards together                              A-1346-899-A

          "D" Board (only)                                        A-1343-772-A

          "DS" Board (only)                                       A-1343-712-A


Note: There are no P/N changes between Serial Number ranges on the KP-61HS10




Reference: PJA Eng.                                                                                  PRINTED IN USA
