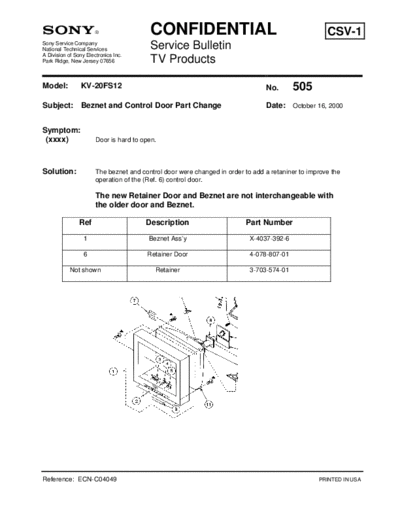

CONFIDENTIAL CSV-1
Sony Service Company
National Technical Services Service Bulletin
A Division of Sony Electronics Inc.
Park Ridge, New Jersey 07656 TV Products
Model: KV-20FS12 No. 505
Subject: Beznet and Control Door Part Change Date: October 16, 2000
Symptom:
(xxxx) Door is hard to open.
Solution: The beznet and control door were changed in order to add a retaniner to improve the
operation of the (Ref. 6) control door.
The new Retainer Door and Beznet are not interchangeable with
the older door and Beznet.
Ref Description Part Number
1 Beznet Ass'y X-4037-392-6
6 Retainer Door 4-078-807-01
Not shown Retainer 3-703-574-01
Reference: ECN-C04049 PRINTED IN USA
TV Products Service Bulletin No. 505
Original Bezel with no retainer New Bezel with retainer
Original Door New Door with hooks for retainer catching
