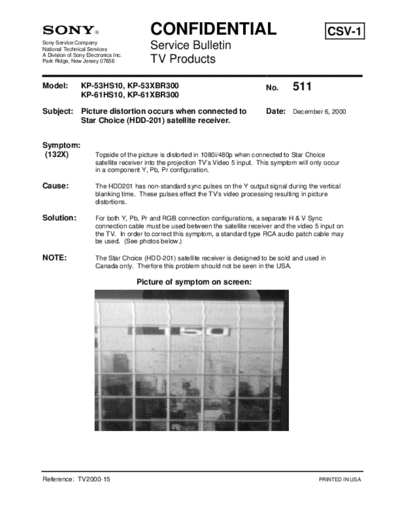

Image preview - the first page of the document



>> Download TVP0511 documenatation <<

Text preview - extract from the document

                                          CONFIDENTIAL                                                   CSV-1
Sony Service Company
National Technical Services               Service Bulletin
A Division of Sony Electronics Inc.
Park Ridge, New Jersey 07656              TV Products

Model:          KP-53HS10, KP-53XBR300                                             No.       511
                KP-61HS10, KP-61XBR300

Subject: Picture distortion occurs when connected to                               Date: December 6, 2000
         Star Choice (HDD-201) satellite receiver.


Symptom:
 (132X)                Topside of the picture is distorted in 1080i/480p when connected to Star Choice
                       satellite receiver into the projection TV's Video 5 input. This symptom will only occur
                       in a component Y, Pb, Pr configuration.

Cause:                 The HDD201 has non-standard sync pulses on the Y output signal during the vertical
                       blanking time. These pulses effect the TV's video processing resulting in picture
                       distortions.

Solution:              For both Y, Pb, Pr and RGB connection configurations, a separate H & V Sync
                       connection cable must be used between the satellite receiver and the video 5 input on
                       the TV. In order to correct this symptom, a standard type RCA audio patch cable may
                       be used. (See photos below.)

NOTE:                  The Star Choice (HDD-201) satellite receiver is designed to be sold and used in
                       Canada only. Therfore this problem should not be seen in the USA.

                                      Picture of symptom on screen:




Reference: TV2000-15                                                                                  PRINTED IN USA
TV Products Service Bulletin No. 511




               Connection on rear side of Star Choice HDD-201:
               Separate H and V sync cables required to connect to
               KP-53HS10 and KP-61HS10 video 5 input.




               Connection to Rear side of HS10 model
               Connect separate H and V sync from Star Choice cables to
               KP-53 and 61HS10 video 5 input
