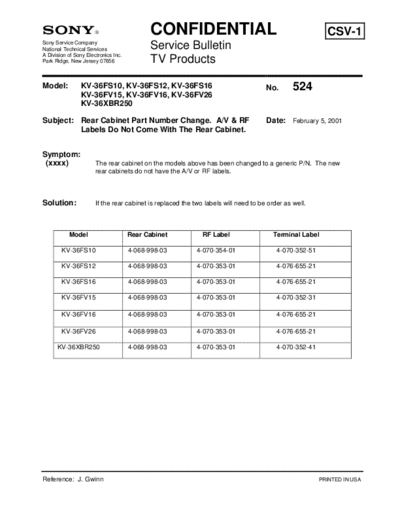

CONFIDENTIAL CSV-1
Sony Service Company
National Technical Services Service Bulletin
A Division of Sony Electronics Inc.
Park Ridge, New Jersey 07656 TV Products
Model: KV-36FS10, KV-36FS12, KV-36FS16 No. 524
KV-36FV15, KV-36FV16, KV-36FV26
KV-36XBR250
Subject: Rear Cabinet Part Number Change. A/V & RF Date: February 5, 2001
Labels Do Not Come With The Rear Cabinet.
Symptom:
(xxxx) The rear cabinet on the models above has been changed to a generic P/N. The new
rear cabinets do not have the A/V or RF labels.
Solution: If the rear cabinet is replaced the two labels will need to be order as well.
Model Rear Cabinet RF Label Terminal Label
KV-36FS10 4-068-998-03 4-070-354-01 4-070-352-51
KV-36FS12 4-068-998-03 4-070-353-01 4-076-655-21
KV-36FS16 4-068-998-03 4-070-353-01 4-076-655-21
KV-36FV15 4-068-998-03 4-070-353-01 4-070-352-31
KV-36FV16 4-068-998-03 4-070-353-01 4-076-655-21
KV-36FV26 4-068-998-03 4-070-353-01 4-076-655-21
KV-36XBR250 4-068-998-03 4-070-353-01 4-070-352-41
Reference: J. Gwinn PRINTED IN USA
