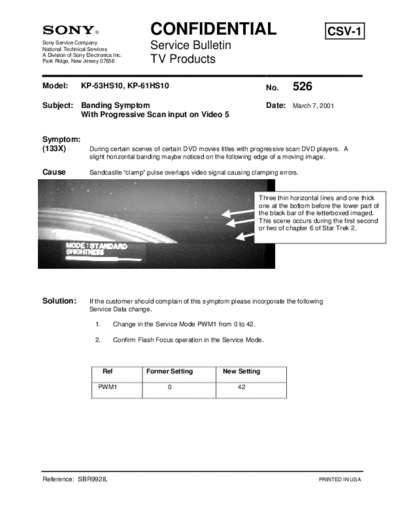

                                              CONFIDENTIAL                                                CSV-1
Sony Service Company
National Technical Services                   Service Bulletin
A Division of Sony Electronics Inc.
Park Ridge, New Jersey 07656                  TV Products

Model:          KP-53HS10, KP-61HS10                                                   No.    526
Subject: Banding Symptom                                                               Date: March 7, 2001
         With Progressive Scan input on Video 5


Symptom:
(133X)              During certain scenes of certain DVD movies titles with progressive scan DVD players. A
                    slight horizontal banding maybe noticed on the following edge of a moving image.

Cause               Sandcastle "clamp" pulse overlaps video signal causing clamping errors.


                                                                                  Three thin horizontal lines and one thick
                                                                                  one at the bottom before the lower part of
                                                                                  the black bar of the letterboxed imaged.
                                                                                  This scene occurs during the first second
                                                                                  or two of chapter 6 of Star Trek 2.




Solution:           If the customer should complain of this symptom please incorporate the following
                    Service Data change.

                       1.         Change in the Service Mode PWM1 from 0 to 42.

                       2.         Confirm Flash Focus operation in the Service Mode.



                            Ref              Former Setting           New Setting

                        PWM1                        0                      42




Reference: SBR9928.                                                                                   PRINTED IN USA
