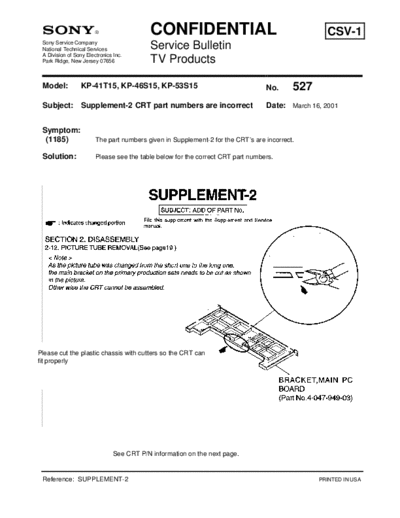

                                            CONFIDENTIAL                                          CSV-1
 Sony Service Company
 National Technical Services                Service Bulletin
 A Division of Sony Electronics Inc.
 Park Ridge, New Jersey 07656               TV Products

 Model:          KP-41T15, KP-46S15, KP-53S15                                    No.      527
 Subject: Supplement-2 CRT part numbers are incorrect                            Date: March 16, 2001


 Symptom:
  (1185)                The part numbers given in Supplement-2 for the CRT's are incorrect.

 Solution:              Please see the table below for the correct CRT part numbers.




Please cut the plastic chassis with cutters so the CRT can
fit properly




                                See CRT P/N information on the next page.


 Reference: SUPPLEMENT-2                                                                        PRINTED IN USA
TV Products Service Bulletin No. 527


  Model             Description         Incorrect       Correct       Subbed to

KP-41T15             CRT Red           8-733-496-01   8-736-080-05   8-733-578-25

                    CRT Green          8-733-494-01   8-736-078-05   8-733-577-25

                     CRT Blue          8-733-495-01   8-736-079-05   8-733-574-15

KP-46S15             CRT Red           8-733-496-01   8-736-080-05   8-733-578-25

                    CRT Green          8-733-494-01   8-736-078-05   8-733-577-25

                     CRT Blue          8-733-495-01   8-736-079-05   8-733-574-15

KP-53S15             CRT Red           8-733-498-01   8-736-082-05   8-733-579-25

                    CRT Green          8-733-497-01   8-736-078-05   8-733-577-25

                     CRT Blue                         8-736-081-05   8-733-575-15
