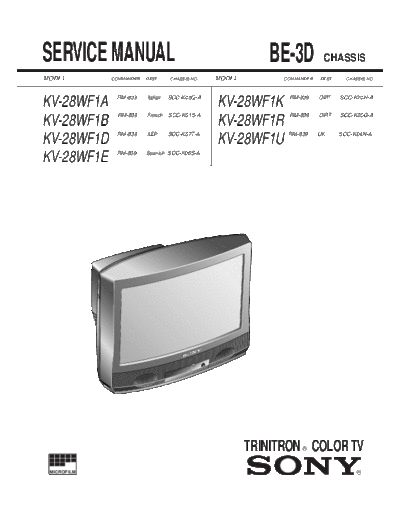

Image preview - the first page of the document
sony chassis BE-3D-3


>> Download sony chassis BE-3D-3 documenatation <<

Text preview - extract from the document
                                                                               KV-28WF1



SERVICE MANUAL                                              BE-3D          CHASSIS
MODEL        COMMANDER   DEST.     CHASSIS NO.   MODEL        COMMANDER   DEST.     CHASSIS NO.




KV-28WF1A     RM-839     Italian   SCC-K05Q-A
                                                     KV-28WF1K   RM-839   OIRT    SCC-K20H-A


              RM-839     French SCC-K01S-A                       RM-839   OIRT    SCC-K20G-A
KV-28WF1B                                            KV-28WF1R
              RM-839     AEP       SCC-K07T-A                    RM-839   UK      SCC-K04N-A
KV-28WF1D                                            KV-28WF1U
KV-28WF1E     RM-839     Spanish SCC-K06S-A




                                                         TRINITRON COLOR TV
                                                                     R




 MICROFILM                                                                              R




                                             --1--
KV-28WF1

    ITEM MODEL   Television System                  Channel Coverage                    Colour System


                                                                                    PAL
                                     VHF: E2-E12, S1-S20, A-H, H1,H2
    Italian       B/G/H                                                             NTSC3.58/4.43
                                     UHF: E21-E69
                                                                                    (video input only)

                                     L SECAM VHF: F2-F10 UHF: F21-F69
                                     TV CABLE TV (1) VHF: B-Q UHF: S21-S44
                                     PAL B/G/H VHF: E2-E12 UHF: E21-E69
                                                                                    PAL, SECAM
                                     CABLE TV (1) : S1-S41
    French        B/G/H, D/K, L, I                                                  NTSC3.58/4.43
                                     CABLE TV (2) : S01-S05, M1-M10, U1-U10
                                                                                    (video input only)
                                     ITALIA VHF: A-H, H1, H2
                                     PAL I UHF: B21-B69
                                     D/K VHF: R01-R20 UHF: B21-B69

                                     B/G/H VHF: E2-E12 UHF: S1-S20
                                     CABLE TV (1) : S1-S41                          PAL, SECAM
    AEP           B/G/H, D/K         CABLE TV (2) : S01-S05, M1-M10, U1-U10         NTSC3.58/4.43
                                     ITALIA VHF: A-H, H1, H2                        (video input only)
                                     D/K VHF: R01-R20 UHF: B21-B69

                                     PAL B/G/H VHF: E2-E12 UHF: E21-E69
                                     CABLE TV (1) : S1-S41                          PAL, SECAM
    Spanish       B/G/H, D/K         CABLE TV (2) : S01-S05, M1-M10, U1-U10         NTSC3.58/4.43
                                     ITALIA VHF: A-H, H1, H2                        (video input only)
                                     D/K VHF: R01-R20 UHF: B21-B69

                                     B/G/H VHF: E2-E12 UHF: E21-E69
                                     CABLE TV (1) : S1-S41                          PAL, SECAM
    OIRT          B/G/H, D/K         CABLE TV (2) : S01-S05, M1-M10, U1-U10         NTSC3.58/4.43
                                     ITALIA VHF: A-H, H1, H2                        (video input only)
                                     D/K VHF: R01-R12 UHF: R21-R69


                                                                                    PAL
    UK            I                  UHF: U21-U69                                   NTSC3.58/4.43
                                                                                    (video input only)




    MODEL                  28WF1A        28WF1B        28WF1D          28WF1E       28WF1K          28WF1R     28WF1U
    Power Consumption          84W         95W            95W           95W           95W                95W    146W



                                                             SPECIFICATIONS


Picture Tube          Super Trinitron                                   [FRONT]
                      Approx. 71 cm (28 inches)                               3 , Video input - phono jack
                      (Approx. 66 cm picture measured                         3 , Audio inputs - phono jacks
                       diagonally)                                            3 , S video input - 4 pin DIN
                      110
