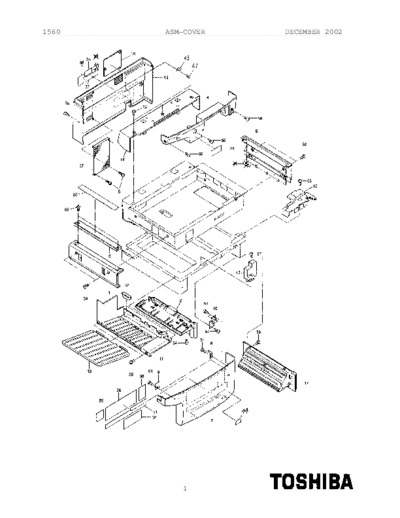

Image preview - the first page of the document
>> Download Toshiba 1560pc documenatation <<
Text preview - extract from the document
1560 ASM-COVER DECEMBER 2002
1
1560 DECEMBER 2002
Q'TY SPE
ITEM PARTS Q'TY BSI SERIAL
PARTS NAME / / PRICE P I R TO FROM REMARKS
NO. NO. PAGE PACK IN NONE NO. NO.
1 4400 667880 K-COV-LEFT-OPT 1 1/PP
2 4400 660960 COVER-LEFT-U 1 1/PP
3 4400 665220 PLATE-GLASS-ORG 1 1/PP
4 4400 661780 COVER-IN-F-U 1 1/PP
5 4400 667910 K-COV-RIGHT-OPT 1 1/PP
7 4402 901560 F-COVER-FRONT 1 1/PP F97I037
8 4400 661040 PUSHER-SW-D 1 1/P
9 4400 661050 PLT-MGN-CATCH 2 1/P
10 4400 661060 K-HINGE-COV-F 2 1/P
11 4400 664460 COVER-LEFT-L 1 1/PP
12 4400 661270 TRAY-140 1 1/PP
13 4400 664440 COV-FUS-F 1 1/PP
14 4400 661100 COVER-TOP-R 1 1/PP
15 4400 661120 COVER-REAR 1 1/PP
16 4400 661280 COV-POCKET-INST 1 1/P
17 4402 901750 COVER-RIGHT-L 1 1/PP F97I037
24 4400 660500 LABEL-DRUM-140 1 5/P
25A 4400 665280 LABEL-SCALE-U 1 1/KP USA SIZE
25B 4400 665290 LABEL-SCALE-E 1 1/KP EUR SIZE
27 4400 661790 GUARD-ACC 1 1/PP
28 4400 660480 LBL-INST-TNR 1 1/KP
29 4400 661860 LBL-SHELL-LOCK 1 5/P
30A 4400 660590 LBL-INST-TNR-E 1 5/P F97I037 EUR
30B 4400 660590 LBL-INST-TNR-E 1 5/P FOR EUR
30Z 4402 901620 LBL-INST-TNR141 1 5/P F97I037 OTHERS
31B 4402 841590 LBL-INST-TNR3-E 1 5/KP FOR EUR
32B 4400 660520 LBL-PM-140 1 1/KP FOR EUR
33 4400 664400 COVER-FEED-F 1 1/P
35A 4400 740530 LABEL-FCC 1 10/KP TAD
35G 4402 860770 LBL-C-TICK-MARK 1 5/P F97I037 AUD
36B 4400 945700 LABEL-CANADA 1 5/P CSD
37 4402 840980 LBL-SERVICE 1 5/P
42 4400 662970 K-PLATE-EXIT 2 1/P
43B 4400 683560 SPL-SHIELD 1 1/P 200V SERIES
44A 4401 910990 LBL-ENERGY-T 1 5/P F97I037 TAD
51A 4842 040495 PTBR30*06MSZN3A 8 50/P 100V SERIES
51B 4842 040495 PTBR30*06MSZN3A 9 50/P 200V SERIES
52 7043 300613 BID30*06MSCR1AI 4 50/P
53 4842 040684 TBID3006MSCR3C 4 50/P
54 4842 040370 TBID3006MSZN3L 1 50/P
55 7043 400813 BID40*08MSCR1AI 4 50/P
56 4842 041794 TBIDS-40*08-CP 11 50/P
57 4401 787160 SCREW-M4-7-R 5 10/P
58 4842 041800 SCREW-M4-7-R 1 50/P
1
TOSHIBA
1560 ASM-CONTROL-PANEL DECEMBER 2002
2
1560 DECEMBER 2002
Q'TY SPE
ITEM PARTS Q'TY BSI SERIAL
PARTS NAME / / PRICE P I R TO FROM REMARKS
NO. NO. PAGE PACK IN NONE NO. NO.
1A 4400 683610 F-COV-CONP-U 1 1/PP TAD
1B 4400 683610 F-COV-CONP-U 1 1/PP CSD
1C 4400 683620 F-COV-CONP-E 1 1/PP EUD
1D 4400 683620 F-COV-CONP-E 1 1/PP MJD
1E 4400 683620 F-COV-CONP-E 1 1/PP MFD
1F 4400 683620 F-COV-CONP-E 1 1/PP UKD
1G 4400 683630 F-COV-CONP-AU 1 1/PP AUD
1H 4400 683630 F-COV-CONP-AU 1 1/PP TWD
1I 4400 683630 F-COV-CONP-AU 1 1/PP SAD
1J 4400 683630 F-COV-CONP-AU 1 1/PP ASD
2 4400 661900 K-STAY-CONPANE 1 1/P
3 4400 662550 COVER-LED-L 6 1/P
4 4400 661620 COVER-LED-OPT 5 1/P
5 4400 683640 KEY-M-UP 1 1/P
6 4400 683650 KEY-M-DOWN 1 1/P
7 4400 662530 KEY-ZOOM-UP 1 1/P
8 4400 662540 KEY-ZOOM-DOWN 1 1/P
9 4400 661330 KEY-CENTER 1 1/P
10 4400 661630 COVER-LED-C 1 1/P
11 4400 661390 KEY-DISP 1 1/P
12 4400 661610 KEY-PRINT 1 1/P
13 4400 661600 KEY-CL 1 1/P
14 4400 662590 KEY-TEN 1 1/P
15 4400 662580 KEY-D/P-C-I/M 1 1/P
16 4400 661640 COVER-LED-KEY 4 1/P
17 4400 661380 KEY-EXPO 1 1/P
18 4400 662570 KEY-E/S-INT 1 1/P
19 4400 662500 KEY-OPTION 2 1/P
20A 4400 661360 PANEL-DSP-140U 1 1/KP TAD
20B 4400 661360 PANEL-DSP-140U 1 1/KP CSD
20C 4400 661370 PANEL-DSP-140E 1 1/KP EUD
20D 4400 661370 PANEL-DSP-140E 1 1/KP MJD
20E 4400 661370 PANEL-DSP-140E 1 1/KP MFD
20F 4400 661370 PANEL-DSP-140E 1 1/KP UKD
20G 4400 661350 PANEL-DSP-140AU 1 1/KP AUD
20H 4400 661350 PANEL-DSP-140AU 1 1/KP TWD
20I 4400 661350 PANEL-DSP-140AU 1 1/KP SAD
20J 4400 661350 PANEL-DSP-140AU 1 1/KP ASD
21 4400 662660 SHEET-PNL-140 1 1/KP
22 4400 677000 PWA-F-PNL-140 1 1/SB
23 4400 678000 K-WH-PNLUNT-140 1 1/P
24 4400 661950 SHEET-CONPANE 1 1/KP
25 4400 728110 COVER-PNL-MG 2 1/P
26 4400 661940 BRKT-CONP-CTR 1 1/P
27 4400 679470 CTR-E650B-140 1 1/C
28 4400 661670 MYLAR-PNL 1 5/P
29 4400 662640 SEAL-KEY-4 1 5/P
30 4400 662650 SEAL-KEY-8 1 5/P
51 4842 040370 TBID3006MSZN3L 3 50/P
52 4842 040495 PTBR30*06MSZN3A 14 50/P
53 7043 300613 BID30*06MSCR1AI 1 50/P
2
TOSHIBA
1560 ASM-UPPER-FRAME-1 DECEMBER 2002
3
1560 DECEMBER 2002
Q'TY SPE
ITEM PARTS Q'TY BSI SERIAL
PARTS NAME / / PRICE P I R TO FROM REMARKS
NO. NO. PAGE PACK IN NONE NO. NO.
1 4402 903150 BRKT-OPT 1 N/A***
2 4400 665050 STAY-BRKT-OPT 1 1/P
3 4400 663370 DUCT-FAN-140 1 1/PP
4 4400 663430 PUSHER-FUSER 2 1/P
5 4400 663420 SPL-DUCT-SCRAP 2 1/P
6 4400 663710 SPC-DUCT-FUSER 2 5/P
7 4400 685600 FILTER-U-140 1 1/C
8 4400 678750 FAN-DC-EXIT-140 3 1/D
9 4400 677890 K-WH-LGCPNL-140 1 1/P
11 4400 682160 K-BRKT-LOCK-U-R 1 1/P
12 4400 682170 K-BRKT-LOCK-U-L 1 1/P
13 4400 682490 HOLDER-LVR-LOCK 2 1/P
14 4400 682180 STAY-LOCK-ARM 1 1/P
15 4400 682190 SPA180-SWICF-LK 1 1/P
16 4400 683470 LEVER-LOCK-R 1 1/P
17 4400 683480 LEVER-LOCK-L 1 1/P
19 4400 682090 LABEL-LOCK-CLM 1 5/P
20 4400 682290 BRKT-MGN-CA-R 1 1/P
21 4400 682300 MGN-CATCH-22S 2 1/P
22 4400 682050 BRKT-MGN-CA-L 1 1/P
23 4842 700421 JOT-EDS-1208U 1 5/P
25 4400 677760 WH-I/F-SRT-140 1 1/P
26 4400 677770 WH-I/F-DF-140 1 1/P
27 4400 682390 DUCT-FAN-OPT-F 1 1/P
28 4400 666400 DUCT-FAN-OPT-R 1 1/P
31 4400 666420 COV-FILTER-FAN 2 1/P
32 4400 666440 FILTER-FAN-60 2 1/KP
33 4400 663590 SHEET-DUCT-FAN 1 5/P
40C 4400 683490 LINK-LEV-LOCK 1 1/P EUD
40D 4400 683490 LINK-LEV-LOCK 1 1/P MJD
40E 4400 683490 LINK-LEV-LOCK 1 1/P MFD
40F 4400 683490 LINK-LEV-LOCK 1 1/P UKD
41H 4402 802370 HLDR-CONDENSER 1 1/P TWD
42H 4400 817530 K-CONDENSER-306 1 1/D TWD
51H 4842 040370 TBID3006MSZN3L 26 50/P TWD
51Z 4842 040370 TBID3006MSZN3L 25 50/P OTHERS
52 7120 403511 12PAN4035MSZN3A 2 50/P
54 4402 807030 SCREW-SOCKET 2 10/P
55 4842 040685 TBID3008MSZN3A 4 50/P
56 4842 040495 PTBR30*06MSZN3A 2 50/P
3
TOSHIBA
1560 ASM-UPPER-FRAME-2 DECEMBER 2002
4
1560 DECEMBER 2002
Q'TY SPE
ITEM PARTS Q'TY BSI SERIAL
PARTS NAME / / PRICE P I R TO FROM REMARKS
NO. NO. PAGE PACK IN NONE NO. NO.
8 4400 682210 K-BRKT-BLC-L 1 1/P
9 4842 700421 JOT-EDS-1208U 1 5/P
10 4400 682000 BALANCER-140L 1 1/P
11 4400 664230 FRAME-SUB-R 1 N/A***
12 4400 664220 BRKT-DRIVE-D/D 1 1/P
13 4400 664160 STUD-DRIVE-D/D 2 1/P 013 1
042
13 1 4400 664160 STUD-DRIVE-D/D 1 1/P D - J F97K079 013 CLK7
14 4400 664180 STUD-DRV-IDLE 2 1/P
15 4400 664120 G08H-40/G08H-24 1 1/P
16 4400 664140 GR-10H025-87-06 1 1/P
17 4400 664150 JOINT-DEV 1 1/P
18 4400 664130 GR-10S023-85-06 1 1/P
19 4400 664210 ARM-DRIVE-D/D 1 1/P
20 4400 664100 GR-10S020-75-06 1 1/P
21 4400 664170 STUD-GEAR-23 1 1/P
22 4400 664110 G10S-30/G08H-21 1 1/P
23 4400 664280 GR-10S025-85-06 1 1/P
24 4400 664260 TERMINAL-DEV-BI 1 1/P
25 4400 664270 SPC078-065-0230 1 5/P
26 4400 677800 WH-HVT-M-140 1 1/P
27 4400 664250 BLOCK-DRUM-TR 1 1/P
28 4400 678110 K-WH-LGCCLN-140 1 1/P
30 4400 664310 TERMINAL-HVT-CH 1 1/P
31 4400 664320 SPL030-S304-BIS 1 1/P
32 4400 664330 PL-TERMINAL-HVT 1 1/P
33 4843 390868 PWZ-SPLS-3U 1 5/P
34 4843 390872 PWZ-SPLS-8U 2 5/P
35A 4400 678510 PS-LRG-JU0411Y 1 1/C 100V SERIES
35B 4400 678520 PS-LRG-CE0411Y 1 1/C 200V SERIES
36 4400 682010 BALANCER-140R 1 1/P
38 4843 390858 PWZ-SPS-3U 1 5/P
39 4400 665210 STAY-BASE-OPT 1 1/P
40 4400 665980 STAY-BASE-OPT-2 1 1/P
41 4400 665970 STAY-BASE-OPT-3 1 1/P
42 4400 664080 STUD-DRIVE-DEV 1 1/P C B D F97K079 013 CLK7
43 4400 676080 SPACER-DRV-D/D 1 5/P F - D F97K079 1st Lot ONLY
51 4842 040370 TBID3006MSZN3L 20 50/P
52 7405 005031 ERR050SKZN3A 2 50/P
53 4842 040846 PTBR30*08MSZN3A 3 50/P
54 7043 300613 BID30*06MSCR1AI 1 50/P
55 4402 807030 SCREW-SOCKET 2 10/P
4
TOSHIBA
1560 ASM-REAR-FRAME DECEMBER 2002
5
1560 DECEMBER 2002
Q'TY SPE
ITEM PARTS Q'TY BSI SERIAL
PARTS NAME / / PRICE P I R TO FROM REMARKS
NO. NO. PAGE PACK IN NONE NO. NO.
1 4402 903100 FRAME-REAR 1 N/A*** 001 1
1 1 4402 903080 FRAME-REAR-141 1 N/A*** C - E F98C214 001 CLK7
2 4400 663630 NOZZLE-BTL-IN 1 1/P
3 4400 663640 NOZZLE-SLIDE 1 1/P
4 4400 663690 SPC260-100-0480 1 5/P
5 4400 663650 LID-NOZZLE 1 1/P
6 4400 663660 SPR-03-2.5-7.25 1 5/P
7 4400 663670 SEAL-NZL 1 1/P
8 4400 663680 SEAL-BLT-TNR 1 1/P
9 4400 808280 EDS-1717U 5 5/P
10 4843 390870 PWZ-SPLS-6U 2 5/P
11 4843 390871 PWZ-SPLS-7U 1 5/P
12 4843 390873 PWZ-SPLS-10U 2 5/P
14 4402 906020 PWA-F-LGC-141 1 1/SB F97I037
15 4402 906400 PRA-T141M-02 1 1/S F97I037 IC13
16A 4402 906270 K-SRAM-T141U-S 1 1/S F97I037 IC9,USA
16B 4402 906280 K-SRAM-T141E-S 1 1/S F97I037 IC9,EUR
17 4400 663620 COVER-BTL-IN 1 1/P 017 1
17 1 4400 682480 COVER-BTL-IN 1 1/P E - J F97K091 017
18 4400 679450 ASM-HVT-140 1 1/C
19A 4400 679880 PS-ACC-140U 1 1/C 100V SERIES
19B 4400 679890 PS-ACC-140E 1 1/SB 200V SERIES
20 4400 663180 BRKT-INLET 1 1/P
21 4843 390869 PWZ-SPLS-4U 3 5/P
22 4843 390941 BD/W-EDS-1 1 10/P
23A 4400 678450 K-INLT-FUS-140U 1 1/C 100V SERIES
23B 4400 678460 K-INLT-FUS-140E 1 1/C 200V SERIES
24 4400 663190 STOPPER-BRKT 2 1/P
25 4843 390869 PWZ-SPLS-4U 1 5/P
26 4400 663390 TRAY-FRAME-R 1 1/P
27 4843 390860 PWZ-SPS-6U 2 5/P 027 1
27 1 4843 390860 PWZ-SPS-6U 3 5/P D D E F98C214 027 CLK7
28 4843 390859 PWZ-SPS-4U 1 5/P
29 4843 390889 CLP/W-WS-3U 1 5/P
30 4400 663270 MYLAR-HOT 1 5/P
31A 4400 358210 CBL/P-INLET-UC 1 1/P 100V SERIES
31C 4400 395940 CBL/P-INLET-EUR 1 1/P EUD
31D 4400 395940 CBL/P-INLET-EUR 1 1/P MJD
31E 4400 395940 CBL/P-INLET-EUR 1 1/P MFD
31F 4400 494790 CBL/P-INLET-UK 1 1/P UKD
31G 4400 358230 CBL/P-INLET-AU 1 1/P AUD
31I 4402 906470 CBL/P-INLET-CN 1 1/P F97I037 CND
31J 4400 395940 CBL/P-INLET-EUR 1 1/P ASD
33 4400 663700 SEAL-NOZ-BTL-V 1 10/P
34 4400 682460 SEAL-FAN-OPT-R 1 5/P
40H 4400 683570 BRKT-FILT-140 1 1/P TWD
41H 4402 322610 FL-VU-215F3-M 1 1/D TWD
42H 4402 907040 WH-AC-NF-140T 1 1/P TWD
43 4400 664090 CUS-STD-DEV 1 5/P A B D F97K079 CLK7
51 4400 663380 SCREW-FULCRUM 2 10/P
52 4400 682310 SCREW-M4-8-R 1 10/P
53 4400 682360 SCREW-M4-8-L 1 10/P
54H 4842 040370 TBID3006MSZN3L 11 50/P TWD
54Z 4842 040370 TBID3006MSZN3L 10 50/P OTHERS
55 4842 041794 TBID-40*08-CP 1 50/P
56 7043 300613 BID30*06MSCR1AI 2 50/P
57 4842 040117 THPAN4006MSZN3L 1 50/P
58 4842 040687 TBID4008MSZN3A 6 50/P
5
TOSHIBA
1560 ASM-BASE-FRAME DECEMBER 2002
6
1560 DECEMBER 2002
Q'TY SPE
ITEM PARTS Q'TY BSI SERIAL
PARTS NAME / / PRICE P I R TO FROM REMARKS
NO. NO. PAGE PACK IN NONE NO. NO.
1A 4402 903050 FRAME-BASE 1 N/A***
1B 4400 684800 FRAME-BASE 1 N/A*** TSF PROD.
2 4400 663140 K-FOOT-R 1 1/PP
3 4400 682700 K-MYLAR-FOOT-F 1 1/KP
4 4400 682710 K-MYLAR-FOOT-R 1 1/KP
5 4402 811990 FOOT-8-20 2 1/P
6 4400 682880 HOLDER-SHAFT-S 1 1/P
7 4400 669850 K-SHAFT-SPT 1 1/P
8 4400 669940 ARBOR-SPT 1 1/P
9 4401 784210 SPR-1.0-15.60RF 1 5/P
10 4400 669910 K-ROLL-SPT 1 1/P
11 4400 670090 SPC073-050-0251 1 1/P
12 4400 661760 COVER-FEED 1 1/PP
13 4400 663280 K-FOOT-L 1 1/PP
14 4400 662120 BRKT-RCHT-FOOT 1 1/P
15 4400 662130 RCHT-FOOT-L 1 1/P
16 4400 662140 STUD-RCHT-FOOT 1 1/P
17 4400 682480 COVER-BTL-IN 1 1/P 017 1
17 1 4400 662160 SPR-RCHT-FOOT 1 1/P E - J F97K091 017
18 4400 663520 RAIL-BTL-R 1 1/P
19 4400 678080 K-WH-LGCFED-140 1 1/P 019 1
19 1 4402 906600 K-WH-LGCFED-140 1 1/P E B D F97K094 019
20 4400 678910 SNSR-PS-R11L1-B 1 1/D
21 4407 527950 SKB-1M 5 5/P
22 4400 663970 RAIL-BTL-L 1 1/P
23 4400 663510 HOLDER-BOTTLE 1 1/P
24 4400 663540 SHAFT-HLDR-BTL 1 1/P
26 4402 816610 SP-ESE-15404 1 1/C
27 4400 682080 GUIDE-BLC-P 2 1/P
28A 4400 664410 BRKT-LOCK-L-R 1 1/P
28B 4400 682070 BRKT-LOCK-L-L 1 1/P TSF PROD.
29 4400 664420 BRKT-LOCK-L-L 1 1/P
30 4400 674900 TERMINAL-HVT-TR 1 1/P
31 4400 674980 SPC034-045-0123 2 5/P
32 4400 674630 GUIDE-CH-TR 1 1/P
33 4400 674650 PL-GUIDE-BIAS 1 1/P
34 4400 674660 SPC068-080-0209 1 1/P
35H 4400 674680 BRKT-D-HTR 1 1/P AUD
36H 4400 678980 K-PTC-230-140-L 1 1/C AUD
37H 4400 679260 SHEET-PTC-140 1 5/KP AUD
38A 6608 4860 PS-TB1550E 1 SUPPLY EUR
38B 6608 4859 PS-TB1550 1 SUPPLY OTHERS
39 4400 663260 MYLAR-COV-FEED 1 5/P
40 4400 663720 GUARD-SIZE-SW 1 1/P
41 4400 674690 MYLAR-PTC-140 1 5/P
42 4400 670690 GUIDE-FED-IN-3 1 1/P
43 4400 682930 TAPE-COV-FEED 1 5/KP
44 4400 670330 COVER-SPE/ARBOR 1 1/P
45H 4400 679680 MYLAR-D-HTR-140 1 5/P AUD
46H 4400 674740 SEAL-D-HTR 1 5/P AUD
47 4400 674290 SPC068-080-0173 2 1/P
48 4402 902690 HOLDER-FEED-U 1 1/P F97I037
49 4843 524166 FLD-TFC16-8-13 1 1/P F B D F97K094
51 4842 040849 PTBR40*08MSZN3A 2 50/P
52 7043 400813 BID40*08MSCR1AI 2 50/P
53 4842 040687 TBID4008MSZN3A 4 50/P
54 4842 040846 PTBR30*08MSZN3A 2 50/P
55 4401 791080 SCREW-MR-M3-6 10 50/P
56 4842 040847 PTBR30*10MSZN3A 2 50/P
57 4401 787160 SCREW-M4-7-R 1 10/P
58H 7043 401011 BID40*10MSZN3AI 2 50/P AUD
59H 7043 300411 BID30*04MSZN3A 2 50/P AUD
60H 4842 041800 SCREW-M4-7-R 1 50/P AUD
6
TOSHIBA
1560 ASM-FEEDER DECEMBER 2002
7
1560 DECEMBER 2002
Q'TY SPE
ITEM PARTS Q'TY BSI SERIAL
PARTS NAME / / PRICE P I R TO FROM REMARKS
NO. NO. PAGE PACK IN NONE NO. NO.
1 4400 669620 K-FRAME-FEED-U 1 1/P
2 4400 682990 K-ROLL-RGT-L 1 1/KP
3 4400 682910 BUSH-RGT-R 1 1/P F96H744
4 4400 678700 CLT-30E-CW-40 1 1/D
5 4402 813120 GEAR-20-1.0 1 1/P
6 4400 669720 K-ROLL-RGT-U 1 1/KP
7 4402 813190 GEAR-15-1.0 1 1/P
8 4400 682900 BUSH-RGT-F 1 1/P
9 4400 682940 LEVER-FEED-U 2 1/P
10 4407 972860 STOP-RING-6-5 3 5/P
11 4400 682950 SPE053-080-0152 2 5/P
12 4400 669680 GR-10S30-50-06 2 1/P
13 4402 902600 K-GUIDE-FEED-U 1 1/C F97I037
14 4400 670220 SPL-ROL-ALIGN 1 1/P
15 4402 842640 SZ-RGT-121 1 1/C
16 4400 678050 K-WH-RGTUNT-140 1 1/P
18 4402 901790 MYLAR-FEED-U141 1 1/KP F97I037
19 4400 670550 K-BASE-FEED-L 1 1/P
20 4400 669860 GR-10S18-60-06 2 1/P
21 4400 669870 SHAFT-PICK/FEED 2 1/P
22 4400 678690 CLT-30E-CW-20 2 1/D
23 4400 682790 HOLDER-SHAFT-F 1 1/P
24 4400 670050 GR-10S24-210-06 1 1/P
25 4400 670040 BRKT-GEAR-24 1 1/P
26 4400 669960 K-ROL-PICK/FEED 2 1/P 026 1
26 1 4400 682770 K-ROL-PICK/FEED 2 1/P E B J F98B184 026 1ST LOT
27 4402 833110 CLUTCH-6-L 2 1/P
28 4407 734980 BUSH-6-GCB 2 5/P
29 4400 670610 COVER-FEED-L 1 1/P
30 4843 306485 J-0-175694-2 1 5/P
31 4843 308158 J-6-175694-2 1 1/P
32 4400 682840 K-BKT-BRUSH-ALN 1 1/C
33 4400 679630 K-VARISTER-140F 1 1/P
34 4400 670350 SPE051-060-0130 1 5/P
35 4400 670630 HOLDER-COV-CLT 1 1/P
36 4400 670950 K-GUIDE-FED-F 1 1/C
37 4400 670960 K-GUIDE-FED-R 1 1/C
41 4402 902610 K-GUIDE-FEED 1 1/PP F97I037
42 4400 682760 MYLAR-FEED-U 1 1/KP
43 4402 902660 MYLAR-FEED-SFB 1 1/KP F97I037
44 4402 902650 MYLAR-FEED-M 1 1/KP F97I037
45 4402 902640 MYLAR-FEED-SUB 1 1/KP F97I037
46 4402 902680 GUIDE-FEED-S-U 1 1/P F97I037
51 4842 040370 TBID3006MSZN3L 1 50/P
52 4842 040846 PTBR30*08MSZN3A 18 50/P
53 4842 040690 TZPAN3006MSZN3L 1 50/P
55 4842 041794 TBIDS-40*08-CP 1 50/P
56 4842 041799 SCREW-MR-M3-6 2 50/P
57 4842 011062 9HSS30/04MSFB 2 50/P
58 7405 004031 ERR040SKZN3A 1 50/P
7
TOSHIBA
1560 ASM-SCAN-DRIVE DECEMBER 2002
8
1560 DECEMBER 2002
Q'TY SPE
ITEM PARTS Q'TY BSI SERIAL
PARTS NAME / / PRICE P I R TO FROM REMARKS
NO. NO. PAGE PACK IN NONE NO. NO.
1 4402 903130 K-BASE-OPT-141 1 N/A***
2 4400 665450 K-BKT-SCAN-F 1 1/P
3 4400 665470 K-BKT-SCAN-R 1 1/P
4 4400 665900 K-M/P-L/M-140 2 1/C
5 4400 665510 SHAFT-DRIDE-SCN 1 1/P
6 4400 665770 KIT-PLY-WIRE 1 1/P 2PC./1PACK
7 4400 665550 WIRE-SCAN-F 1 1/P
8 4400 665610 WIRE-SCAN-R 1 1/P
9 4408 510800 BRG-688ZZNR 2 1/P
10 4400 336190 STOP-RING-8 1 5/P
11 4400 665600 PLY/T-2GT027F08 1 1/P
12 4400 665660 K-BRKT-MOT-SCAN 1 1/P
13 4400 665700 K-PLY/T-66-18 1 1/P
14 4400 665720 K-M/P-SCN-140 1 1/C
15 4400 665740 BLT/T-2GT112X40 1 1/P
16 4400 665750 BLT/T-2GT077X40 1 1/P
17 4400 665350 SPL-WIRE-SCAN-F 1 1/P
18 4400 665360 SPL-WIRE-SCAN-R 1 1/P
19 4400 667550 HLDR-CABLE-OPT 1 1/P
20 4400 665810 K-BKT-DRV-LENS 1 1/P
21 4400 665860 G05S-70/P2GT016 1 1/P
22 4400 665870 PLY/T-2GT016F06 1 1/P
23 4400 665890 BLT/T-2GT465X40 1 1/P
24 4400 666010 K-BRKT-MOT-MRR 1 1/P
25 4400 666070 G10S-10/G05S-70 1 1/P
27 4400 678850 SZ-HOME-140 1 1/C
28 4400 677240 PWA-F-AES-140 1 1/C
29 4400 677850 K-WH-OPTUNT-140 1 1/P
30 4400 667640 BRKT-WIRE-TENS 2 1/P
31 4400 665520 MAGNET-DF-SNSR 1 1/P
32 4843 391367 BD/W-EDS-0607M 1 5/P
33 4400 665920 K-M/P-LNS-140 1 1/C
34 4400 667570 BRKT-HLDR-CABLE 1 1/P
51 7040 301011 PAN30*10MSZN3A 3 50/P
52 4842 040370 TBID3006MSZN3L 17 50/P
53 7040 301211 PAN30*12MSZN3AI 2 50/P
54 7044 250665 FLT25*06BSNI3EI 1 50/P
8
TOSHIBA
1560 ASM-MAIN-DRIVE DECEMBER 2002
9
1560 DECEMBER 2002
Q'TY SPE
ITEM PARTS Q'TY BSI SERIAL
PARTS NAME / / PRICE P I R TO FROM REMARKS
NO. NO. PAGE PACK IN NONE NO. NO.
1 4400 678600 M/DC-MAIN-140 1 1/C
2 4400 663820 FRAME-DRIVE-R 1 1/P
3 4400 663840 STUD-DRIVE-D/L 1 1/P
4 4400 663830 G05H-75/G10S-20 1 1/P
5 4400 663870 STUD-DRIVE 3 1/P
6 4400 663850 G05H-75/G10S-16 1 1/P
7 4400 663860 GR-10S34-65-06 2 1/P
8 4400 663900 STUD-DRIVE-FUS 1 1/P
9 4400 663880 GR-10S34-75-06 1 1/P
10 4400 663890 GR-10S34-105-06 1 1/P
11 4400 663910 SPL-DRUM-EARTH 1 1/P
12 4400 663810 FRAME-DRIVE-F 1 1/P
13 4400 663960 MYLAR-DRIVE-L 1 5/P
14 4400 668850 BRKT-LOCK-FUSER 1 1/P
51 4842 040370 TBID3006MSZN3L 3 50/P
52 4842 040696 TZPAN3012MSZN3L 2 50/P
53 4842 040687 TBID4008MSZN3A 2 50/P
55 4842 041800 SCREW-M4-7-R 1 50/P
9
TOSHIBA
1560 ASM-CRG-1 DECEMBER 2002
10
1560 DECEMBER 2002
Q'TY SPE
ITEM PARTS Q'TY BSI SERIAL
PARTS NAME / / PRICE P I R TO FROM REMARKS
NO. NO. PAGE PACK IN NONE NO. NO.
1 4400 667620 K-HLDR-CRG1-F 1 1/P
2 4400 667630 K-HLDR-CRG1-R 1 1/P
3 4400 667240 K-BLD-LAMP-EXPF 1 1/P
4 4400 667300 BLADE-LAMP-EXPR 1 1/P
5 4400 678400 K-FU/T-EXPO-140 1 1/D
6 4400 667350 STAY-CRG1 1 1/P
7 4400 667360 TAPE-REF-SUB 1 1/KP
8 4400 667380 MIRROR-1-140 1 1/C
9 4400 667400 SPL-MIRROR1 2 1/P
10 4400 667420 PLATE-ADJ-EXPO 1 1/P
11 4400 667430 PL-ADJ-EXPO-FR 2 1/P
12 4400 667540 K-REFLECTOR-140 1 1/PP
13 4400 667560 STOPPER-WH-CRG1 1 1/P
14A 4400 679140 LP-92-300W-140 1 1/S 100V SERIES
14B 4400 679150 LP-184-300W-140 1 1/S 200V SERIES
15 4400 677410 WH-EXPO-140 1 1/P
17 4400 667450 REFL-SIDE-F 1 5/P
18 4400 667460 REFL-SIDE-R 1 5/P
51 4842 040846 PTBR30*08MSZN3A 5 50/P
52 7040 300411 PAN30*04MSZN3A 4 50/P
53 4842 040495 PTBR30*06MSZN3A 1 50/P
10
TOSHIBA
1560 ASM-CRG-2 DECEMBER 2002
11
1560 DECEMBER 2002
Q'TY SPE
ITEM PARTS Q'TY BSI SERIAL
PARTS NAME / / PRICE P I R TO FROM REMARKS
NO. NO. PAGE PACK IN NONE NO. NO.
1 4400 666820 BASE-CRG2 1 1/P
2 4400 666860 K-BKT-BRG-CRG2F 1 1/P
3 4400 665950 HLDR-MIR-2/3-F 1 1/P
4 4400 665940 HLDR-MIR2/3-R 1 1/P
5 4400 666950 MIRROR-2-140 2 1/C
7 4400 666940 SPL-MIRROR2-F 1 1/P
8 4400 667030 SPL-MIRROR3-F 1 1/P
9 4400 667000 SPL-MIR2/3-R 1 1/P
10 4400 667020 GUIDE-CABLE 1 1/P
11 4400 802090 FOOT-CRG 4 5/P
12 4400 666880 K-BKT-BRG-CRG2R 1 1/P
13 4400 666910 MYLAR-CRG2 1 5/P
51 4842 040370 TBID3006MSZN3L 4 50/P
52 4401 962790 SCREW-MIR-M3-10 1 10/P
53 7040 300411 PAN30*04MSZN3A 1 50/P
11
TOSHIBA
1560 ASM-OPTICS DECEMBER 2002
12
1560 DECEMBER 2002
Q'TY SPE
ITEM PARTS Q'TY BSI SERIAL
PARTS NAME / / PRICE P I R TO FROM REMARKS
NO. NO. PAGE PACK IN NONE NO. NO.
1 4400 665390 BRKT-MIRROR-6 1 1/P
3 4400 665370 MIRROR-6-140 1 1/C
4 4400 667940 COV-OPT-L-SLIT 1 1/P
5 4400 665200 GLASS-SLIT 1 1/C
6 4400 665170 COVER-OPT-L 1 1/PP
7 4400 666220 BASE-LENS 1 1/P
8 4400 666250 GUIDE-BASE-LENS 1 1/P
9 4400 666260 FOOT-BASE-LENS 1 1/P
10 4400 666290 LENS-180-8.0 1 1/C
11 4400 666280 BAND-LENS 1 1/P
12 4400 666380 COVER-LENS 1 1/PP
13 4400 666390 MYLAR-LENS 1 1/KP
14 4400 665070 MYLAR-BASE-OPT 1 1/P
15 4400 665140 K-COV-OPT-U 1 1/PP
16 4400 678850 SZ-HOME-140 2 1/C
17 4400 831600 CUSH-GLASS 6 5/P
18 4400 677860 WH-LNS-SW-140 1 1/P
19 4400 665620 SHEET-CRG1 2 1/KP
20 4400 665630 SHEET-CRG2 2 1/KP
21 4400 666350 STOP-BELT-LENS 1 1/P
22 4400 666520 BASE-CRG3 1 1/P
23 4400 666530 GUIDE-BASE-CRG3 1 1/P
24 4400 328470 FOOT-CRG 1 1/P
25 4400 666620 HLDR-MIR4/5 1 1/P
26 4400 666700 SPL-MIR4/5-F 1 1/P
27 4400 666710 SPL-MIR4/5-R 1 1/P
28 4400 666660 MIRROR-4-140 1 1/C
29 4400 666670 MIRROR-5-140 1 1/C
30 4400 666610 SHEET-MIR4/R-F 1 1/P
31 4400 666600 SHEET-M1R4/5-R 1 1/P
32H 4402 859390 SHEET-PTC-121 1 5/P AUD
33H 4400 678940 K-PTC-230-140-U 1 1/C AUD
34 4407 685930 HOLDER-WH 1 5/P
35 4400 666300 FILTER-OPT 1 1/C SERVICE ONLY
36 4400 666650 HLDR-MIR4/5-R 1 1/P
37 4400 666560 K-PLATE-CRG3 1 1/P
38 4400 665310 SPL-MIRROR6-R 2 1/P
39 4400 670920 BRKT-COV-OPT-U 1 1/P
40 4400 666360 SEAL-LENS-MYLAR 1 1/P
52 4842 040846 PTBR30*08MSZN3A 4 50/P
53H 4842 040370 TBID3006MSZN3L 9 50/P AUD
53Z 4842 040370 TBID3006MSZN3L 8 50/P OTHERS
54 4842 040495 PTBR30*06MSZN3A 1 50/P
55H 4842 040750 TBID4012MSZN3L 2 50/P AUD
56 4842 040666 TPAN3008MSZN3L 1 50/P
12
TOSHIBA
1560 ASM-PLATEN DECEMBER 2002
13
1560 DECEMBER 2002
Q'TY SPE
ITEM PARTS Q'TY BSI SERIAL
PARTS NAME / / PRICE P I R TO FROM REMARKS
NO. NO. PAGE PACK IN NONE NO. NO.
1 4400 683510 COVER-PLATEN 1 1/PP
2 4400 683520 POCKET-PLATEN 1 1/PP
3 4400 661730 SHEET-PLATEN 1 1/KP
4 4400 683500 HINGE-PLATEN-S 2 1/P
5 4400 665320 GLASS-447-338-4 1 1/S
6 4400 665300 PLATE-GLASS 1 1/PP
7A 4400 660540 LBL-INST-1550UC 1 1/KP SERVICE ONLY
7B 4400 660550 LBL-INST-1550GF 1 1/KP SERVICE ONLY
7C 4400 660560 LBL-INST-1550SI 1 1/KP SERVICE ONLY
51 4842 040867 PTBR40*14MSZN3A 4 50/P
52 7043 400813 BID40*08MSCR1AI 2 50/P
13
TOSHIBA
1560 ASM-DRUM DECEMBER 2002
14
1560 DECEMBER 2002
Q'TY SPE
ITEM PARTS Q'TY BSI SERIAL
PARTS NAME / / PRICE P I R TO FROM REMARKS
NO. NO. PAGE PACK IN NONE NO. NO.
1 6608 4854 ASM-OD1550 1 SUPPLY
2 4400 674150 SHAFT-DRUM-140 1 1/P
3 4400 674160 HANDLE-SFT-DRUM 1 1/P
4 4400 671910 COVER-PRC-F 1 1/P
5 4400 671920 HOOK-PRC-F 1 1/P
6 4400 660510 LBL-MEMORY-140 1 5/P
7 4400 662630 LBL-ARROW-ARM 1 5/P
51 7043 300613 BID30*06MSCR1AI 1 50/P
14
TOSHIBA
1560 ASM-CHARGER-M DECEMBER 2002
15
1560 DECEMBER 2002
Q'TY SPE
ITEM PARTS Q'TY BSI SERIAL
PARTS NAME / / PRICE P I R TO FROM REMARKS
NO. NO. PAGE PACK IN NONE NO. NO.
0 4400 674400 ASM-CHARGER-M 1 1/C F - J F97K084
1 4400 674510 HOLDER-M-ERS 1 1/P
2 4400 674470 SPL030-S631-GRD 1 1/P
3 4400 674430 CASE-CH-M 1 1/P
4 4400 674440 SPL030-S304-CHM 1 1/P
5 4400 674540 HLDR-PAD-WIRE-M 2 1/P
6 4400 674850 PAD-CLN-WIRE 2 5/P
7 4400 674550 SFT-WIRE-CLN-M 1 1/P
8 4400 674790 WIRE-CH-060*353 1 5/S
9 4407 402190 SPRING-TENS-CH 1 5/P
10 4401 764730 HANGER-WIRE-TR 1 1/P
11 4400 674450 LID-MAIN-F 1 1/P
12 4400 674460 LID-MAIN-R 1 1/P
13 4400 674520 GRID-140 1 1/KP
14 4400 678710 ASM-ERS-140 1 1/S
15 4400 679180 ASM-DCH-140 1 1/C
16 4400 674560 MYLAR-ERS 1 1/KP
17 4400 674570 MYLAR-CH-SCREEN 1 1/KP
51 4842 040846 PTBR30*08MSZN3A 3 50/P
15
TOSHIBA
1560 ASM-CHARGER-TR DECEMBER 2002
16
1560 DECEMBER 2002
Q'TY SPE
ITEM PARTS Q'TY BSI SERIAL
PARTS NAME / / PRICE P I R TO FROM REMARKS
NO. NO. PAGE PACK IN NONE NO. NO.
0 4400 674010 ASM-CHARGER-TR 1 1/C
1 4400 674720 CASE-CH-TR 1 1/P
2 4400 674210 TERMINAL-TR-F 1 1/P
3 4400 674770 TERMINAL-TR-R 1 1/P
4 4400 674840 SHAFT-WIRE-CLN 1 1/P
5 4400 674820 HLDR-PAD-WIRE 2 1/P
6 4400 674850 PAD-CLN-WIRE 2 5/P
7 4400 674750 HANGER-WIRE-140 2 1/P
8 4400 674240 PL-SEP-CH-140 1 1/P
9 4400 674790 WIRE-CH-060*353 2 5/S
10 4407 402190 SPRING-TENS-CH 2 5/P
11 4401 764730 HANGER-WIRE-TR 2 1/P
12 4400 674800 LID-TR-F 1 1/P
13 4400 674810 LID-TR-R 1 1/P
14 4400 915340 SUPPORTER-176 1 1/P
15 4400 674260 GUIDE-CH-ENT 1 1/P
16 4400 674250 SHEET-CH-TR 1 1/KP
17 4400 674870 KNOB-SHAFT-WIRE 1 1/P
19 4400 674370 GUIDE-CH-ENT-U 1 1/P
20 4400 674380 MYLAR-CH-ENT-U 1 1/KP
51 4842 040370 TBID3006MSZN3L 1 50/P
16
TOSHIBA
1560 ASM-PROCESS-UNIT DECEMBER 2002
17
1560 DECEMBER 2002
Q'TY SPE
ITEM PARTS Q'TY BSI SERIAL
PARTS NAME / / PRICE P I R TO FROM REMARKS
NO. NO. PAGE PACK IN NONE NO. NO.
1 4400 671400 FRAME-PRC-R 1 1/P
2 4400 672600 GUIDE-MG-SFT 1 1/P
3 4400 671410 STAY-PRC-U 1 1/P
4 4400 672560 PUSHER-DEV-F 1 1/P
5 4400 672570 PUSHER-DEV-R 1 1/P
7 4400 672630 SPE080-100-0262 1 1/P
8 4400 672640 SPE080-080-0234 1 1/P
9 4400 671420 STAY-PRC-L 1 1/P
10 4400 671120 K-FRAME-CLN 1 1/P
13 4400 671500 SEAL-CL-SIDE 2 5/P
14 4400 671790 SEAL-CL-SIDE-F2 1 5/P
15 4400 671550 SEAL-CL-SIDE-R2 1 5/P
16 4400 671800 SEAL-CL-ROOF 1 1/KP
17 4400 671590 K-BLADE-REC 1 1/S
18 4400 671480 AUGER-CLN 1 1/P
19 4400 671490 GR-08S025-50-04 1 1/P
20 4402 850480 SPC-AUG120 1 5/P
21 4400 671470 BRKT-SW-FULL 1 1/P
22 4402 859600 SP-CS3A-B2BA 1 1/D
23 4400 671140 K-NOZZLE-CLN-IN 1 1/P
24 4400 671540 SEAL-NOZZLE-1 1 5/P
25 4400 671530 SPC260-100-0700 1 1/P
26 4400 671520 NOZZLE-CLN-OUT 1 1/P
27 4400 671930 FRAME-PRC-F 1 1/PP
28 4400 671730 SEAL-PRC-F-U 1 5/P
29 4400 671740 SEAL-PRC-F-L 1 5/P
30 4400 671690 K-BKT-TNR-MOT 1 1/P
31 4400 678650 K-M/DC-TNR-140 2 1/C
32A 4400 671820 G05H-32-125-06U 1 1/P TAD
32B 4400 671820 G05H-32-125-06U 1 1/P CSD
32C 4400 671650 G05H-32-125-06E 1 1/P EUD
32D 4400 671650 G05H-32-125-06E 1 1/P MJD
32E 4400 671650 G05H-32-125-06E 1 1/P MFD
32F 4400 671650 G05H-32-125-06E 1 1/P UKD
32G 4400 671820 G05H-32-125-06U 1 1/P AUD
32H 4400 671820 G05H-32-125-06U 1 1/P TWD
32I 4400 671820 G05H-32-125-06U 1 1/P SAD
32J 4400 671820 G05H-32-125-06U 1 1/P ASD
33 4400 671880 SPC080-070-0230 1 5/P
34 4409 847890 BL-1550D 1 10/S
35 4400 671620 PIN-BLADE-CLN 2 5/P
36 4400 671610 HLDR-PIN-BLADE 1 1/P
37 4400 671600 SPE077-070-0299 1 1/P
38 4400 671640 DUCT-CLN 1 1/P
39 4400 678140 K-WH-CLNUNT-140 1 1/P
40 4400 671940 HOOK-TNR-140 1 1/P
41 4400 671750 MYLAR-PRC-F-U 1 5/P
42 4400 671760 MYLAR-PRC-F-L 1 5/P
43 4400 671710 SPR055-4.0-4.17 1 1/P
44 4400 671860 SEAL-CL-SIDE-3 2 5/P
45 4400 671870 TRAY-TNR-PRC 1 1/P
46 4400 671950 HOOK-CART-140 1 1/P
61 4842 040370 TBID3006MSZN3L 3 50/P
62 4842 040846 PTBR30*08MSZN3A 5 50/P
63 7400 104011 1HWAS040MSZN3A 2 50/P
64 7043 300813 BID30*08MSCR1AI 4 50/P
65 7040 300411 PAN30*04MSZN3A 1 50/P
66 4842 040685 TBID3008MSZN3A 2 50/P
67 4402 807030 SCREW-SOCKET 2 10/P
17
TOSHIBA
1560 ASM-DEVELOPER DECEMBER 2002
18
1560 DECEMBER 2002
Q'TY SPE
ITEM PARTS Q'TY BSI SERIAL
PARTS NAME / / PRICE P I R TO FROM REMARKS
NO. NO. PAGE PACK IN NONE NO. NO.
0 4400 672080 ASM-DEV-UNIT 1 1/C
1 4400 672130 K-CASE-DEV-140 1 N/A***
2 4400 672140 K-MIXER-2-140 1 1/P
3 4400 672400 MG-ROLL-140 1 1/C
4 4400 672470 PLY/T-2GT028F06 1 1/P
5 4400 672480 PLY-H20-H33-P20 1 1/P
6 4400 672420 BLT/T-2GT051Z40 1 1/P
7 4400 672580 BUSH-MG-ROL-F 1 1/P
8 4400 672500 ROL-GUIDE-21.08 2 1/P
9 4400 672680 MIXER-1-140 1 1/P
10 4400 672660 PLATE-DEV-R 1 1/P
11 4400 672590 ADJUSTER-MG 1 1/P
12 4400 672150 K-DOCTOR-140 1 1/P
13 4400 672160 K-COV-FRONT-DEV 1 1/P
14 4400 672650 PLATE-DEV-F 1 1/P
15 4400 672720 SEAL-MG-R-F 1 1/P
16 4400 672730 SEAL-MG-R-R 1 1/P
17 4400 672740 SEAL-MG-S-R 1 1/P
18 4407 728150 BUSH-6-GCB 4 5/P
19 4400 672840 MYLAR-DEV-CASE 1 1/KP
20 4400 672810 SEAL-CASE-SIDE 2 5/P
21 4400 672520 SPC060-065-0130 2 1/P
22 4400 672800 SCREW-DOCTOR 2 10/P
23 4400 672450 GR-08H033-43-06 1 1/P
24 4400 672820 SEAL-MYLAR-S-F 1 5/P
25 4400 672830 SEAL-MYLAR-S-R 1 5/P
26 4402 859550 SNR-ATC-121 1 1/D
27 4400 672770 SEAL-COV-DEV1 1 1/KP
28 4400 678160 WH-DEV-ATS-140 1 1/P
29 4400 672120 K-COV-DEV-140 1 1/S
30 4400 672880 SPL025-S631-DCT 2 1/P
31 4400 672850 SPL030-S631-DCF 2 1/P
32 4400 672950 SPACER-PL-DEV 2 5/P
51 7043 300613 BID30*06MSCR1AI 5 50/P
52 7405 004031 ERR040SKZN3A 1 50/P
53 7043 300664 BID30*06BSCR3CI 1 50/P
18
TOSHIBA
1560 ASM-FUSER-1 DECEMBER 2002
19
1560 DECEMBER 2002
Q'TY SPE
ITEM PARTS Q'TY BSI SERIAL
PARTS NAME / / PRICE P I R TO FROM REMARKS
NO. NO. PAGE PACK IN NONE NO. NO.
1 4400 668100 K-FRAME-FUS-140 1 1/P
2 4409 849370 HR-1550-U 1 1/S
3 4400 669090 BUSH-ROLL-HEAT 2 5/P
4 4400 669080 GEAR-60-40-H/R 1 1/P
5 4400 668200 RING-STOP-HR 2 5/P
6A 4400 679850 HTR-140-900WL-U 1 1/S 100V SERIES
6B 4400 679860 HTR-140-900WL-E 1 1/S 200V SERIES
7 4400 668240 BRKT-HLD-LAMP-F 1 1/P
8 4400 668480 COVER-HR-F 1 1/P
9 4400 668250 BRKT-HLD-LAMP-R 1 1/P
10 4400 668490 COVER-HR-R 1 1/P
11 4400 668370 K-BRKT-HOLD-CLN 1 1/P
12 4409 847880 SR-1550H 1 1/S
13 4402 211540 BUSH-6-4 2 5/P
14 4400 668270 GEAR-Z15-CLN 1 1/P
15 4400 668280 GEAR-19-14-IDLE 1 1/P
16 4400 669110 COVER-SCRAPER 1 1/P
17 4400 663470 ROLLER-EXIT-U 4 1/P
18 4400 663460 SPE-0.3-2.8 4 1/P
19 4400 668410 BRKT-SCRAPER 1 1/P
20 4400 668420 K-SCRAPER-140 6 6/P
21 4400 668950 SPR-0.7-14.5 2 5/P
22 4400 668960 SPR-0.7-26.5 2 5/P
23 4400 668930 BKT-SCRAPER-R 1 1/P
24 4400 668940 BKT-SCRAPER-L 1 1/P
25 4400 669020 GUIDE-SCR-R 1 1/P
26 4400 669030 GUIDE-SCR-L 1 1/P
27 4402 801770 BRUSH-EXIT-F170 1 1/KP
28 4843 391176 CLP/W-UAMS05L 1 5/P
29 4400 668830 LBL-HOT-140 1 5/P
30 4400 668840 SHEET-FUS-140 1 5/P
31 4400 345540 CLAMP-HARNESS 1 5/P
51 4842 040846 PTBR30*08MSZN3A 7 50/P
52 4842 040370 TBID3006MSZN3L 9 50/P
53 4400 325930 PIN-BKT-CON-H 1 10/P
19
TOSHIBA
1560 ASM-FUSER-2 DECEMBER 2002
20
1560 DECEMBER 2002
Q'TY SPE
ITEM PARTS Q'TY BSI SERIAL
PARTS NAME / / PRICE P I R TO FROM REMARKS
NO. NO. PAGE PACK IN NONE NO. NO.
1 4402 903260 GUIDE-ENT-FUS 1 1/P
2 4400 668210 ARM-PRESS-F 2 1/P
3 4400 668600 CAP-ARM-FUSER 2 5/P
4 4407 548100 BRG-608ZZ-HR 2 1/P
5 4409 840810 HR-2510-L 1 1/S
6 4400 668320 BRKT-HOLD-THMS 1 1/P
7 4402 903270 K-HLDR-THERM 1 1/P
8 4400 919520 K-THERMO-176 1 1/C
9 4400 678880 THMS-HTR-140 1 1/C
10 4400 536740 BRUSH-FUSER 1 1/C
11 4400 668510 GUIDE-EXIT-FUS 1 1/PP
12 4400 668530 ROLLER-EXIT-FUS 1 1/P
13 4400 668520 BUSH-ROLL-EXIT 2 5/P
14 4400 668550 GEAR-Z40-E/R 1 1/P
15 4400 678830 SZ-EX1T-140 1 1/C
16 4400 678150 WH-EXT-SW-140 1 1/P
17 4400 668340 COVER-FUSER 1 1/PP
18 4400 668330 SPL-ROLL-SI 2 1/P
19 4400 668610 BRADE-HR-F-140 1 1/KP
20 4400 668710 BRKT-EXIT-SW 1 1/P
21 4400 677440 WH-HTR-140 1 1/P
22 4400 668900 MYLAR-COV-FUSER 2 5/P
23 4843 306487 J-0-175694-4 1 5/P
24 4843 306486 J-0-175694-3 1 5/P
51 4842 040846 PTBR30*08MSZN3A 1 50/P
52 4842 040370 TBID3006MSZN3L 8 50/P
53 7043 300613 BID30*06MSCR1AI 2 50/P
54 4842 040694 TZPAN3010MSZN3L 1 50/P
20
TOSHIBA
1560 ASM-CASSETTE DECEMBER 2002
21
1560 DECEMBER 2002
Q'TY SPE
ITEM PARTS Q'TY BSI SERIAL
PARTS NAME / / PRICE P I R TO FROM REMARKS
NO. NO. PAGE PACK IN NONE NO. NO.
1 4402 903200 CASSETTE-141 1 1/PP
2 4400 661460 COVER-CST-140 1 1/PP
3 4400 662600 K-TRAY-140 1 1/PP
4 4400 670570 SPC310-120-0132 2 5/P
5 4400 661470 K-WALL-GUIDE-F 1 1/P
6 4400 661480 K-WALL-GUIDE-R 1 1/P
7 4400 661550 RACK-ADJ-CST 2 1/P
8 4407 726480 PINION-18-395 1 1/P
9 4400 661570 K-COV-BTM-CST 1 1/P
10 4400 661440 SPC072-080-0270 1 5/P
11 4400 661560 ARM-ADJUST 1 1/P
12 4400 661540 GUIDE-PLT-BACK 1 1/P
13 4400 662200 WIRE-CASET-R 1 1/P
14 4400 662290 BRKT-GUIDE-BACK 1 1/P
15 4400 662070 PLY-WIRE-CASET 2 1/P
16 4400 662060 HOLDER-PLY-WIRE 2 1/P
17 4400 662180 RACK-CASET 1 1/P
18 4400 662210 WIRE-CASET-L 1 1/P
19 4400 662100 RACK-CASET-L 1 1/P
20 4400 662150 SPE081-055-0575 1 5/P
21 4400 683110 RCHT-CASSETTE 1 1/P
22 4400 662170 SPR-RCHT-CST 1 5/P
23 4400 662030 BRKT-RCHT 1 1/P
24 4400 670490 SPE057-050-0253 2 5/P
25 4400 670420 LEVER-TRAY-R 1 1/P
26 4400 670410 LEVER-TRAY-F 1 1/P
27 4400 662270 PAD-BRAKE-TRAY 1 1/P 027 1
27 1 4400 683100 PAD-BRAKE-TRAY 1 1/P C E H F98B203 027
28 4400 662280 SPE082-120-0434 1 5/P
29 4400 662320 K-BKT-WIRE-R 1 1/P
30 4400 662330 K-BKT-WIRE-L 1 1/P
31 4400 662010 F-COV-SIZE-CST 1 1/P
32A 4400 662250 PLATE-SIZE-L 1 1/P USA SIZE
32B 4400 662230 PLATE-SIZE-A 1 1/P EUR SIZE
33 4400 662370 PLY-WIRE-TRAY 1 1/P
34 4400 662380 STUD-PLY-TRAY 1 1/P
35 4400 670590 MYLAR-CASET 1 1/KP
37A 4400 662260 PLATE-SIZE-S 1 1/P USA SIZE
37B 4400 662240 PLATE-SIZE-B 1 1/P EUR SIZE
38 4400 662760 LBL-EMPTY-140 1 5/P
39 4400 683080 LBL-LIMIT-140-1 1 5/P
40 4400 662720 LBL-INST-SIZE 1 1/KP
41 4400 662780 LBL-INST-CST 1 1/KP
42B 4400 662790 LBL-DIRECT-P 1 5/P FOR EUR
43 4402 202680 MG-CATCH-22 1 1/P
44 4400 662630 LBL-ARROW-ARM 1 5/P
45 4400 831600 CUSH-GLASS 1 5/P
46 4400 683090 LBL-LIMIT-140-2 1 5/P
51 4842 040849 PTBR40*08MSZN3A 5 50/P
52 4842 040495 PTBR30*06MSZN3A 3 50/P
53 7043 300813 BID30*08MSCR1A 3 50/P
54 7640 300551 ZPAN30*05MSZN3A 2 50/P
55 4400 662390 SCREW-CASET 1 10/P
56 4842 040148 12ZPAN3008MSZ3A 4 50/P
57 4842 040846 PTBR30*08MSZN3A 3 50/P
21
TOSHIBA
1560 ASM-STAY-SFB DECEMBER 2002
31
1560 DECEMBER 2002
Q'TY SPE
ITEM PARTS Q'TY BSI SERIAL
PARTS NAME / / PRICE P I R TO FROM REMARKS
NO. NO. PAGE PACK IN NONE NO. NO.
1 4402 901850 K-FRAME-F 1 N/A*** A - J F97I037
2 4401 981100 SZ-AJ8R2094ZU01 1 1/D F97I037
3 4400 682250 K-BRKT-SW-DOOR 1 1/P F97I037
4 4400 678360 SZ-DOOR-140 1 1/D F97I037
5 4400 682280 SPL035-S304-SWD 1 1/P F97I037
6 4408 354010 STOPPER-REAR 1 1/P F97I037
7 4402 907050 WH-AC-MAIN-141 1 1/P F97I037
8 4402 901900 COVER-SW 1 1/P F97I037
9 4402 901840 STAY-SFB 1 1/P F97I037
10 4400 678890 THMS-DRM-140 1 1/P F97I037
11 4400 902490 BAND-PS100 5 5/P F97I037
12 4843 391367 BD/W-EDS-0607M 1 5/P F97I037
13 4402 901880 FRAME-R 1 1/P F97I037
14 4402 203820 SCREW-BKT-DEV 1 50/P F97I037
16 4402 902200 GUIDE-ENT-SFB-R 1 1/PP F97I037
17 4402 902190 GUIDE-ENT-SFB-F 1 1/PP F97I037
18 4402 902160 GUIDE-SFB 1 1/PP F97I037
19 4401 965130 K-PAD-SPT-BYP 1 1/P F97I037
20 4402 902170 SPE057-070-0236 1 5/P F97I037
21 4402 901920 GUIDE-U-PFU 1 1/PP F97I037
22 4402 901910 GUIDE-U-CST 1 1/PP F97I037
23 4402 902240 K-BRKT-TRAY-R 1 1/P F97I037
24 4402 907020 K-WH-LGC0PT-141 1 1/P F97I037
25 4843 581215 Z-MA-S-5 1 10/P F97I037
26 4401 966660 PAD-LEVER-SPT 1 5/P F - J F98C215
51 4842 040370 TBID3006MSZN3L 12 50/P F97I037
52 4401 791080 SCREW-MR-M3-6 1 50/P F97I037
◦ Jabse Service Manual Search 2024 ◦ Jabse Pravopis ◦ onTap.bg ◦ Other service manual resources online : Fixya ◦ eServiceinfo
