Service Manuals, User Guides, Schematic Diagrams or docs for : TOSHIBA DVD-Video RD-XV50KF toshiba_rdxv50kf_dvd-vcr_recorder

<< Back | Home

Most service manuals and schematics are PDF files, so You will need Adobre Acrobat Reader to view : Acrobat Download Some of the files are DjVu format. Readers and resources available here : DjVu Resources
For the compressed files, most common are zip and rar. Please, extract files with Your favorite compression software ( WinZip, WinRAR ... ) before viewing. If a document has multiple parts, You should download all, before extracting.
Good luck. Repair on Your own risk. Make sure You know what You are doing.

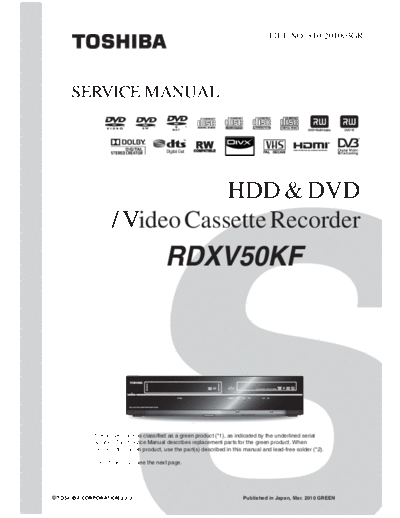

Image preview - the first page of the document
toshiba_rdxv50kf_dvd-vcr_recorder


>> Download toshiba_rdxv50kf_dvd-vcr_recorder documenatation <<

Text preview - extract from the document
                                                                                     FILE NO. 810-201003GR




    SERVICE MANUAL




                              HDD & DVD
                  / Video Cassette Recorder
                                         RDXV50KF




           The above model is classified as a green product (*1), as indicated by the underlined serial
           number. This Service Manual describes replacement parts for the green product. When
           repairing this green product, use the part(s) described in this manual and lead-free solder (*2).

           For (*1) and (*2), see the next page.




TOSHIBA CORPORATION 2010                                                 Published in Japan, Mar. 2010 GREEN
(*1)                   GREEN PRODUCT PROCUREMENT
The EC is actively promoting the WEEE & RoHS Directives that define standards for recycling
and reuse of Waste Electrical and Electronic Equipment and for the Restriction of the use of
certain Hazardous Substances. From July 1, 2006, the RoHS Directive will prohibit any
marketing of new products containing the restricted substances.
Increasing attention is given to issues related to the global environmental. Toshiba Corporation
recognizes environmental protection as a key management tasks, and is doing its utmost to
enhance and improve the quality and scope of its environmental activities. In line with this,
Toshiba proactively promotes Green Procurement, and seeks to purchase and use products,
parts and materials that have low environmental impacts.
Green procurement of parts is not only confined to manufacture. The same green parts used in
manufacture must also be used as replacement parts.



(*2)                              LEAD-FREE SOLDER
This product is manufactured using lead-free solder as a part of a movement within the consumer
products industry at large to be environmentally responsible. Lead-free solder must be used in the
servicing and repair of this product.

                                         WARNING
                    This product is manufactured using lead free solder.
       DO NOT USE LEAD BASED SOLDER TO REPAIR THIS PRODUCT !

The melting temperature of lead-free solder is higher than that of leaded solder by 86



◦ Jabse Service Manual Search 2020 ◦ Jabse Pravopis ◦ Other service manual resources online : FixyaeServiceinfo
