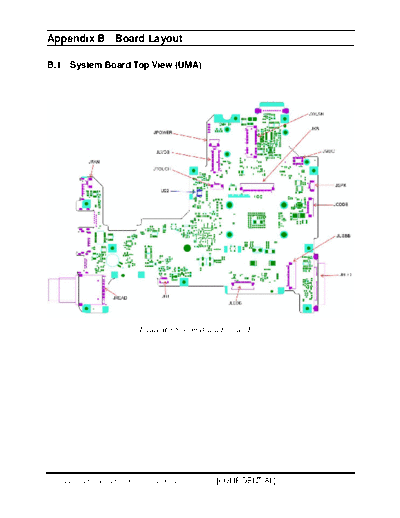

Image preview - the first page of the document
L675D..Schematics


>> Download L675D..Schematics documenatation <<

Text preview - extract from the document
Appendix B Board Layout

B.1 System Board Top View (UMA)




                               Figure B-1 System Board Layout (Top)




SatelliteL670/L675/Pro L670 Maintenance Manual       [CONFIDENTIAL]
B-1
B.2 System Board Bottom View (UMA)




                 Figure B-2 System Board Layout (Bottom)




B-2                  [CONFIDENTIAL]      SatelliteL670/L675/Pro L670 Maintenance Manual
                             Table B-1 System Board ICs (top and bottom)

                    Number                                       Name
                      U11              Platform Controller Hub (BD82HM55 SLGZS B3)
                       U5              Clock Generator (RTM890N-631-VB-GRT)
                      U19              EC (KB926QFE0)
                      U13              BIOS ROM (4MB SPI)
                      U22              EC ROM (256KB SPI)
                      UA1              CODEC (ALC259-VB5-GR)
                      UC1              Card Reader Controller (RTS5138-GR)
                      UL1              LAN Conroller (RTL8105E-VB-GR)
                      U10              HDMI Level Shift (ASM1442)



                       Table B-2 System Board Connectors (top and bottom)

                    Number                                       Name
                     JCPU                                     CPU Socket
                     JFAN                                      Fan conn.
                     JLVDS                                    LVDS conn.
                     JCRT                                      CRT conn.
                     JHDMI                                    HDMI conn.
                   JTOUCH                                 Touch Module conn.
                     JHDD                                  SATA HDD conn.
                    JODDB                                    ODD/B conn.
                    JESATA                          ESATA/USB Combo conn.
                      JBT                                   Bluetooth conn.
                    JWLAN                                     WLAN conn.
                     JLAN                                      LAN conn.
                     JUSBB                          Audio Jack & USB/B conn.
                JDDRH, JDDRL                                  DDRIII conn.
                      JKB                                   Keyboard conn.
                    JREAD                               3 in 1 Card Reader conn.
                     JSPK                                    Speaker conn.
                   JPOWER                                    Power/B conn.
                     JMDC                                     MDC conn.




Satellite L670/L675/ProL670 Series Maintenance Manual                   [CONFIDENTIAL]   B-3
      JLEDB              LED & Touch Button/B conn.
      PJP1                     AC Adaptor conn.
      PJP2                       Battery conn.




B-4           [CONFIDENTIAL]     SatelliteL670/L675/Pro L670 Maintenance Manual
B.3     System Board Top View (Discrete)




                               Figure B-1 System Board Layout (Top)




Satellite L670/L675/ProL670 Series Maintenance Manual         [CONFIDENTIAL]   B-5
B.4 System Board Bottom View (Discrete)




                  Figure B-2 System Board Layout (Bottom)




B-6                   [CONFIDENTIAL]      SatelliteL670/L675/Pro L670 Maintenance Manual
                             Table B-3 System Board ICs (top and bottom)

                    Number                                       Name
                      U11              Platform Controller Hub (BD82HM55 SLGZS B3)
                                       GPU (216-0774007 A11 PARK XT / 216-0772000
                      UV1              A11 MADISON PRO / 216-0728014 A12 M92-M2
                                       XTX)
                       U5              Clock Generator (RTM890N-631-VB-GRT)
                      U19              EC (KB926QFE0)
                      U13              BIOS ROM (4MB SPI)
                      U22              EC ROM (256KB SPI)
                      UA1              CODEC (ALC259-VB5-GR)
                      UC1              Card Reader Controller (RTS5138-GR)
                                       LAN Conroller (RTL8105E-VB-GR / RTL8111E-VB-
                      UL1
                                       GR)



                       Table B-4 System Board Connectors (top and bottom)

                    Number                                       Name
                     JCPU                                     CPU Socket
                     JFAN                                      Fan conn.
                     JLVDS                                    LVDS conn.
                     JCRT                                      CRT conn.
                     JHDMI                                    HDMI conn.
                   JTOUCH                                 Touch Module conn.
                     JHDD                                  SATA HDD conn.
                    JODDB                                    ODD/B conn.
                    JESATA                          ESATA/USB Combo conn.
                      JBT                                   Bluetooth conn.
                    JWLAN                                     WLAN conn.
                     JLAN                                      LAN conn.
                     JUSBB                          Audio Jack & USB/B conn.
                JDDRH, JDDRL                                  DDRIII conn.
                      JKB                                   Keyboard conn.
                    JREAD                               3 in 1 Card Reader conn.
                     JSPK                                    Speaker conn.
                   JPOWER                                    Power/B conn.
                     JMDC                                     MDC conn.




Satellite L670/L675/ProL670 Series Maintenance Manual                   [CONFIDENTIAL]   B-7
      JLEDB              LED & Touch Button/B conn.
      PJP1                     AC Adaptor conn.
      PJP2                       Battery conn.




B-8           [CONFIDENTIAL]     SatelliteL670/L675/Pro L670 Maintenance Manual
Appendix C              Pin Assignments

System Board

   C.1       JFAN

                          Table C-1 FAN I/F pin assignments (3-pin)

              Pin No.     Signal name        I/O      Pin No.     Signal Name      I/O
                 1       +FAN1                -             2    FAN_SPEED1        O
                 3       GND                  -




   C.2       JLVDS

                           Table C-2 LVDS I/F pin assignments (40-pin)

              Pin No.        Signal name      I/O     Pin No.        Signal Name    I/O
                 1      GND                       -     2       +3VS_LVDS_CAM          -
                 3      LCD_TXCLK+            O         4       USB20_P11_R          O
                 5      LCD_TXCLK-            O         6       USB20_N11_R          O
                 7      GND                       -     8       GND                    -
                 9      LCD_TZCLK+            O         10      LCD_TXOUT0+          O
                11      LCD_TZCLK-            O         12      LCD_TXOUT0-          O
                13      GND                       -     14      LCD_TXOUT1+          O
                15      LCD_EDID_CLK          O         16      LCD_TXOUT1-          O
                17      LCD_EDID_DATA         O         18      LCD_TXOUT2+          O
                19      INT_MIC_CLK               I     20      LCD_TXOUT2-          O
                21      INT_MIC_DATA              I     22      GND                    -
                23      NC                        -     24      LCD_TZOUT0+          O
                25      PCH_PWM               O         26      LCD_TZOUT0-          O
                        (INVT PWM R)
                27      +3VS                      -     28      LCD_TZOUT1+          O
                29      +LCDVDD_R                 -     30      LCD_TZOUT1-          O
                31      +LCDVDD_R                 -     32      LCD_TZOUT2+          O
                33      BKOFF#_R              O         34      LCD_TZOUT2-          O
                35      NC                        -     36      GND                    -
                37      +LCD_INV                  -     38      NC                     -




SatelliteL670/L675/Pro L670D Maintenance Manual                 [CONFIDENTIAL]             C-1
              39      +LCD_INV               -     40        +LCD_INV                   -


      C.3   JCRT

                           Table C-3 CRT pin assignments (15-pin)

            Pin No.    Signal name      I/O      Pin No.       Signal Name         I/O
              1       CRT_R_L            O         2        CRT_G_L                O
              3       CRT_B_L            O         4        NC                      -
              5       GND                -         6        GND                     -
              7       GND                -         8        GND                     -
              9       +CRT_VCC           O         10       GND                     -
              11      NC                 -         12       CRT_DDC_DAT             I
              13      HSYNC              O         14       VSYNC                  O
              15      CRT_DDC_CLK        I




      C.4   JHDMI

                      Table C-4 HDMI I/F pin assignments (19-pin)

            Pin No.    Signal name      I/O      Pin No.       Signal Name         I/O
              1       HDMI_R_D2+         O         2        GND                     -
              3       HDMI_R_D2-         O         4        HDMI_R_D1+             O
              5       GND                -         6        HDMI_R_D1-             O
              7       HDMI_R_D0+         O         8        GND                     -
              9       HDMI_R_D0-         O         10       HDMI_R_CK+             O
              11      GND                -         12       HDMI_R_CK-             O
              13      NC                 -         14       NC                      -
              15      HDMI_SCLK          I         16       HDMI_SDATA              I
              17      GND                          18       +HDMI_5V_OUT            -
              19      HDMI_HPD           I




C-2            [CONFIDENTIAL]                           SatelliteL670/L675/Pro L670 Maintenance Manual
    C.5      JTOUCH

                 Table C-5 Touch Module Connector pin assignments (6-pin)

             Pin No.       Signal name         I/O      Pin No.      Signal Name        I/O
                1        +5VS                      -        2      TP_CLK                I
                3        TP_DATA                   I        4      SW_L                  O
                5        SW_R                      O        6      GND                   -




    C.6      JHDD

                            Table C-6 HDD I/F pin assignments (22-pin)

               Pin No.     Signal name        I/O       Pin No.    Signal Name     I/O
                    1     GND                  -           2      SATA_PTX_C       O
                                                                  _DRX_P1
                    3     SATA_PTX_C           O           4      GND               -
                          _DRX_N1
                    5     SATA_PRX_D           I           6      SATA_PRX_D        I
                          TX_N1                                   TX_P1
                    7     GND                  -           8      +3VS              -
                    9     +3VS                 -          10      +3VS              -
                    11    GND                  -          12      GND               -
                    13    GND                  -          14      +5VS              -
                    15    +5VS                 -          16      +5VS              -
                    17    GND                  -          18      NC                -
                    19    GND                  -          20      NC                -
                    21    NC                              22      NC                -




Satellite L670/L675/ProL670 Series Maintenance Manual             [CONFIDENTIAL]              C-3
C.7          JODDB

                   Table C-7 SATA ODD/B Connector pin assignments (12-pin)

            Pin No.          Signal name    I/O   Pin No.          Signal Name         I/O
               1        GND                  -         2      SATA_PTX_C_DRX_          O
                                                              P4
               3        SATA_PTX_C_DRX      O          4      GND                       -
                        _N4
               5        SATA_PRX_DTX_N       I         6      SATA_PRX_DTX_P4           I
                        4
               7        GND                  -         8      NC                        -
               9        +5VS                 -         10     +5VS                      -
              11        +5VS                 -         12     +5VS                      -




C.8          JESATA

                       Table C-8 eSATA/USB I/F pin assignments (11-pin)

        Pin No.             Signal name     I/O   Pin No.            Signal Name             I/O
       1              +USB_VCCB              -    2           USB20_N3_R                     I/O
       3              USB20_P3_R            I/O   4           GND                             -
       5              GND                    -    6           SATA_PTX_C_DRX_P               O
                                                              5
       7              SATA_PTX_C_DRX_N      O     8           GND                             -
                              5
       9              SATA_PRX_DTX_N5        I    10          SATA_PRX_DTX_N5                 I
       11             GND                    -




      C.9    JBT

                      Table C-9 Bluetooth Connector pin assignments (6-pin)




C-4                [CONFIDENTIAL]                       SatelliteL670/L675/Pro L670 Maintenance Manual
             Pin No.       Signal name                   Pin No.         Signal Name     I/O
                1        +BT_VCC                 -             2     GND                     -
                3        USB20_P5              I/O             4     USB20_N5            I/O
                5        BT_RESET#              O              6     BT_DET#                 I




    C.10 JWLAN

                      Table C-10 WLAN Connector pin assignments (52-pin)

              Pin No.         Signal name      I/O      Pin No.      Signal Name       I/O
                 A1      NC                               A2       +3VS
                 A3      NC                               A4       GND
                 A5      BT_CTRL                          A6       +1.5VS
                 A7      CLKREQ_WLAN#                     A8       NC
                 A9      GND                             A10       NC
                A11      CLK_WLAN#                       A12       NC
                A13      CLK_WLAN                        A14       NC
                A15      GND                             A16       NC
                A17      NC                              A18       GND
                A19      NC                              A20       WL_OFF#
                A21      GND                             A22       PLT_RST#
                A23      PCIE_PRX_WLAN                   A24       +3VS
                         TX N2
                A25      PCIE_PRX_WLAN                   A26       GND
                         TX P2
                A27      GND                             A28       +1.5VS
                A29      GND                             A30       PM_SMBCLK
                A31      PCIE_PTX_C_WL                   A32       PM_SMBDATA
                         ANRX N2
                A33      PCIE_PTX_C_WL                   A34       GND
                         ANRX P2
                A35      GND                             A36       USB20_N13
                A37      GND                             A38       USB20_P13
                A39      +3VS                            A40       GND
                A41      +3VS                            A42       NC
                A43      GND                             A44       NC
                A45      NC                              A46       NC
                A47      NC                              A48       +1.5VS




Satellite L670/L675/ProL670 Series Maintenance Manual              [CONFIDENTIAL]                C-5
                 A49      E51_TXD                          A GND
                 A51      E51_RXD                          A +3VS




      C.11 JLAN

                       Table C-11 LAN Connector pin assignments (16-pin)

       Pin No.           Signal name      I/O    Pin No.             Signal Name       I/O
          1           RJ45_MIDI0+         I/O          2           RJ45_MIDI0-         I/O
          3           RJ45_MIDI1+         I/O          4           NC (RJ45_MIDI2+)     -
          5           NC (RJ45_MIDI2-)     -           6           RJ45_MIDI1-         I/O
          7           NC (RJ45_MIDI3+)     -           8           NC (RJ45_MIDI3-)     -
          9           +3V_LAN              -        10             LAN_SK_LINK#_R      O
         11           +3V_LAN              -        12             LAN_ACTIVITY#_R     O
         13           LANGND               -        14             LANGND               -
         15           LANGND               -        16             LANGND               -




      C.12 JUSBB

              Table C-12 Audio & USB/B Connector pin assignments (20-pin)

              Pin No.      Signal name    I/O   Pin No.       Signal Name        I/O
                 1        +USB_VCCA        -       2          +USB_VCCA            -
                 3        +USB_VCCA        -       4          +USB_VCCA            -
                 5        NC               -       6          USB20_N0_R         I/O
                 7        USB20_P0_R      I/O      8          GND                  -
                 9        GND              -      10          USB20_N1_R         I/O
                 11       USB20_P1_R      I/O     12          GND                  -
                 13       GND              -      14          HP_R                 O
                 15       HP_L            O       16          AGND                 -
                 17       MIC1_L           I      18          MIC1_R               I
                 19       NBA_PLUG         I      20          MIC_SENSE            I




C-6              [CONFIDENTIAL]                     SatelliteL670/L675/Pro L670 Maintenance Manual
    C.13 JDDRH

                     Table C-13 SODIMM I/F pin assignments (204-PIN)

          Pin No.       Signal name          I/O        Pin No.     Signal Name    I/O
             1          +VREF_DQA             -            2           GND          -
             3              GND               -            4         DDR_A_D4      I/O
             5           DDR_A_D0            I/O           6         DDR_A_D5      I/O
             7           DDR_A_D1            I/O           8           GND          -
             9              GND               -           10       DDR_A_DQS#0     O
            11          DDR_A_DM0             O           12       DDR_A_DQS0      O
            13              GND               -           14           GND          -
            15           DDR_A_D2            I/O          16         DDR_A_D6      I/O
            17           DDR_A_D3            I/O          18         DDR_A_D7      I/O
            19              GND               -           20           GND          -
            21           DDR_A_D8            I/O          22        DDR_A_D12      I/O
            23           DDR_A_D9            I/O          24        DDR_A_D13      I/O
            25              GND               -           26           GND          -
            27         DDR_A_DQS#1            O           28        DDR_A_DM1      O
            29         DDR_A_DQS1             O           30       SM_DRAMRST#     O
            31              GND               -           32           GND          -
            33          DDR_A_D10            I/O          34        DDR_A_D14      I/O
            35          DDR_A_D11            I/O          36        DDR_A_D15      I/O
            37              GND               -           38           GND          -
            39          DDR_A_D16            I/O          40        DDR_A_D20      I/O
            41          DDR_A_D17            I/O          42        DDR_A_D21      I/O
            43              GND               -           44           GND          -
            45         DDR_A_DQS#2            O           46        DDR_A_DM2      O
            47         DDR_A_DQS2             O           48           GND          -
            49              GND               -           50        DDR_A_D22      I/O
            51          DDR_A_D18            I/O          52        DDR_A_D23      I/O
            53          DDR_A_D19            I/O          54           GND          -
            55              GND               -           56        DDR_A_D28      I/O
            57          DDR_A_D24            I/O          58        DDR_A_D29      I/O
            59          DDR_A_D25            I/O          60           GND          -
            61              GND               -           62       DDR_A_DQS#3     O




Satellite L670/L675/ProL670 Series Maintenance Manual             [CONFIDENTIAL]         C-7
      63         DDR_A_DM3    O     64           DDR_A_DQS3             O
      65            GND        -    66                GND               -
      67         DDR_A_D26    I/O   68            DDR_A_D30            I/O
      69         DDR_A_D27    I/O   70            DDR_A_D31            I/O
      71            GND        -    72                GND               -
      73         DDRA_CKE0    O     74            DDRA_CKE1            I/O
      75            +1.5V      -    76               +1.5V              -
      77             NC        -    78           DDR_A_MA15             O
      79         DDR_A_BS2    O     80           DDR_A_MA14             O
      81            +1.5V      -    82               +1.5V              -
      83         DDR_A_MA12   O     84           DDR_A_MA11             O
      85         DDR_A_MA9    O     86            DDR_A_MA7             O
      87            +1.5V      -    88               +1.5V              -
      89         DDR_A_MA8    O     90            DDR_A_MA6             O
      91         DDR_A_MA5    O     92            DDR_A_MA4             O
      93            +1.5V      -    94               +1.5V              -
      95         DDR_A_MA3    O     96            DDR_A_MA2             O
      97         DDR_A_MA1    O     98            DDR_A_MA0             O
      99            +1.5V      -    100              +1.5V              -
      101        DDRA_CLK0    O     102           DDRA_CLK1             O
      103        DDRA_CLK0#   O     104          DDRA_CLK1#             O
      105           +1.5V      -    106              +1.5V              -
      107        DDR_A_MA10   O     108           DDR_A_BS1             O
      109        DDR_A_BS0    O     110          DDR_A_RAS#             O
      111           +1.5V      -    112              +1.5V              -
      113        DDR_A_WE#    O     114          DDRA_SCS0#             O
      115        DDR_A_CAS#   O     116           DDRA_ODT0             O
      117           +1.5V      -    118              +1.5V              -
      119        DDR_A_MA13   O     120           DDRA_ODT1             O
      121        DDRA_SCS1#   O     122                NC               -
      123           +1.5V      -    124              +1.5V              -
      125            NC        -    126        +DDR_VREF_CA_            -
                                                   DIMMA
      127           GND        -    128               GND               -
      129        DDR_A_D32    I/O   130           DDR_A_D36            I/O
      131        DDR_A_D33    I/O   132           DDR_A_D37            I/O
      133           GND        -    134               GND               -
      135       DDR_A_DQS#4   O     136           DDR_A_DM4             O




C-8         [CONFIDENTIAL]               SatelliteL670/L675/Pro L670 Maintenance Manual
            137        DDR_A_DQS4             O         138        GND          -
            139              GND              -         140     DDR_A_D38
            141         DDR_A_D34            I/O        142     DDR_A_D39      I/O
            143         DDR_A_D35            I/O        144        GND          -
            145              GND              -         146     DDR_A_D44      I/O
            147         DDR_A_D40            I/O        148     DDR_A_D45      I/O
            149         DDR_A_D41            I/O        150        GND          -
            151              GND              -         152    DDR_A_DQS#5     O
            153         DDR_A_DM5             O         154    DDR_A_DQS5      O
            155              GND              -         156        GND          -
            157         DDR_A_D42            I/O        158     DDR_A_D46      I/O
            159         DDR_A_D43            I/O        160     DDR_A_D47      I/O
            161              GND              -         162        GND          -
            163         DDR_A_D43            I/O        164     DDR_A_D52      I/O
            165         DDR_A_D49            I/O        166     DDR_A_D53      I/O
            167              GND              -         168        GND          -
            169        DDR_A_DQS#6            O         170     DDR_A_D53      I/O
            171        DDR_A_DQS6             O         172        GND          -
            173              GND              -         174     DDR_A_D54      I/O
            175         DDR_A_D50            I/O        176     DDR_A_D55      I/O
            177         DDR_A_D51            I/O        178        GND          -
            179              GND              -         180     DDR_A_D60      I/O
            181         DDR_A_D56            I/O        182     DDR_A_D61      I/O
            183         DDR_A_D57            I/O        184        GND          -
            185              GND              -         186    DDR_A_DQS#7     O
            187         DDR_A_DM7             O         188    DDR_A_DQS7      O
            189              GND              -         190        GND          -
            191         DDR_A_D58            I/O        192     DDR_A_D62      I/O
            193         DDR_A_D59            I/O        194     DDR_A_D63      I/O
            195              GND              -         196        GND          -
            197              GND              -         198     PM_EXTTS#      O
            199             +3VS              -         200    PM_SMBDATA      I/O
            201              GND              -         202     PM_SMBCLK      I/O
            203            +0.75VS            -         204       +0.75VS       -




Satellite L670/L675/ProL670 Series Maintenance Manual         [CONFIDENTIAL]         C-9
     C.14 JDDRL

                  Table C-14 SODIMM I/F pin assignments (204-PIN)

        Pin No.     Signal name    I/O   Pin No.        Signal Name           I/O
           1        +VREF_DQB       -       2                GND               -
           3           GND          -       4            DDR_B_D4             I/O
           5        DDR_B_D0       I/O      6            DDR_B_D5             I/O
           7        DDR_B_D1       I/O      8                GND               -
           9           GND          -      10          DDR_B_DQS#0            O
          11        DDR_B_DM0       O      12           DDR_B_DQS0            O
          13           GND          -      14                GND               -
          15        DDR_B_D2       I/O     16            DDR_B_D6             I/O
          17        DDR_B_D3       I/O     18            DDR_B_D7             I/O
          19           GND          -      20                GND               -
          21        DDR_B_D8       I/O     22            DDR_B_D12            I/O
          23        DDR_B_D9       I/O     24            DDR_B_D13            I/O
          25           GND          -      26                GND               -
          27       DDR_B_DQS#1      O      28           DDR_B_DM1             O
          29       DDR_B_DQS1       O      30          SM_DRAMRST#            O
          31           GND          -      32                GND               -
          33        DDR_B_D10      I/O     34            DDR_B_D14            I/O
          35        DDR_B_D11      I/O     36            DDR_B_D15            I/O
          37           GND          -      38                GND               -
          39        DDR_B_D16      I/O     40            DDR_B_D20            I/O
          41        DDR_B_D17      I/O     42            DDR_B_D21            I/O
          43           GND          -      44                GND               -
          45       DDR_B_DQS#2      O      46           DDR_B_DM2             O
          47       DDR_B_DQS2       O      48                GND               -
          49           GND          -      50            DDR_B_D22            I/O
          51        DDR_B_D18      I/O     52            DDR_B_D23            I/O
          53        DDR_B_D19      I/O     54                GND               -
          55           GND          -      56            DDR_B_D28            I/O
          57        DDR_B_D24      I/O     58            DDR_B_D29            I/O
          59        DDR_B_D25      I/O     60                GND               -
          61           GND          -      62          DDR_B_DQS#3            O
          63        DDR_B_DM3       O      64           DDR_B_DQS3            O
          65           GND          -      66                GND               -




C-             [CONFIDENTIAL]                   SatelliteL670/L675/Pro L670 Maintenance Manual
             67         DDR_B_D26            I/O        68      DDR_B_D30      I/O
             69         DDR_B_D27            I/O        70      DDR_B_D31      I/O
             71              GND               -        72         GND          -
             73         DDRB_CKE0             O         74      DDRB_CKE1      I/O
             75             +1.5V              -        76         +1.5V        -
             77               NC               -        78      DDR_B_MA15     O
             79         DDR_B_BS2             O         80      DDR_B_MA14     O
             81             +1.5V              -        82         +1.5V        -
             83         DDR_B_MA12            O         84      DDR_B_MA11     O
             85         DDR_B_MA9             O         86      DDR_B_MA7      O
             87             +1.5V              -        88         +1.5V        -
             89         DDR_B_MA8             O         90      DDR_B_MA6      O
             91         DDR_B_MA5             O         92      DDR_B_MA4      O
             93             +1.5V              -        94         +1.5V        -
             95         DDR_B_MA3             O         96      DDR_B_MA2      O
             97         DDR_B_MA1             O         98      DDR_B_MA0      O
             99             +1.5V              -        100        +1.5V        -
            101         DDRB_CLK0             O         102     DDRB_CLK1      O
            103         DDRB_CLK0#            O         104     DDRB_CLK1#     O
            105             +1.5V              -        106        +1.5V        -
            107         DDR_B_MA10            O         108     DDR_B_BS1      O
            109         DDR_B_BS0             O         110     DDR_B_RAS#     O
            111             +1.5V              -        112        +1.5V        -
            113         DDR_B_WE#             O         114     DDRB_SCS0#     O
            115         DDR_B_CAS#            O         116     DDRB_ODT0      O
            117             +1.5V              -        118        +1.5V        -
            119         DDR_B_MA13            O         120     DDRB_ODT1      O
            121         DDRB_SCS1#            O         122         NC          -
            123             +1.5V              -        124        +1.5V        -
            125               NC               -        126   +DDR_VREF_CA_     -
                                                                  DIMMB
            127              GND               -        128        GND          -
            129         DDR_B_D32            I/O        130     DDR_B_D36      I/O
            131         DDR_B_D33            I/O        132     DDR_B_D37      I/O
            133              GND               -        134        GND          -
            135        DDR_B_DQS#4            O         136     DDR_B_DM4      O
            137         DDR_B_DQS4            O         138        GND          -
            139              GND               -        140     DDR_B_D38




Satellite L670/L675/ProL670 Series Maintenance Manual         [CONFIDENTIAL]         C-11
     141        DDR_B_D34    I/O   142        DDR_B_D39            I/O
     143        DDR_B_D35    I/O   144            GND               -
     145           GND        -    146        DDR_B_D44            I/O
     147        DDR_B_D40    I/O   148        DDR_B_D45            I/O
     149        DDR_B_D41    I/O   150            GND               -
     151           GND        -    152      DDR_B_DQS#5             O
     153        DDR_B_DM5    O     154       DDR_B_DQS5             O
     155           GND        -    156            GND               -
     157        DDR_B_D42    I/O   158        DDR_B_D46            I/O
     159        DDR_B_D43    I/O   160        DDR_B_D47            I/O
     161           GND        -    162            GND               -
     163        DDR_B_D43    I/O   164        DDR_B_D52            I/O
     165        DDR_B_D49    I/O   166        DDR_B_D53            I/O
     167           GND        -    168            GND               -
     169       DDR_B_DQS#6   O     170        DDR_B_D53            I/O
     171       DDR_B_DQS6    O     172            GND               -
     173           GND        -    174        DDR_B_D54            I/O
     175        DDR_B_D50    I/O   176        DDR_B_D55            I/O
     177        DDR_B_D51    I/O   178            GND               -
     179           GND        -    180        DDR_B_D60            I/O
     181        DDR_B_D56    I/O   182        DDR_B_D61            I/O
     183        DDR_B_D57    I/O   184            GND               -
     185           GND        -    186      DDR_B_DQS#7             O
     187        DDR_B_DM7    O     188       DDR_B_DQS7             O
     189           GND        -    190            GND               -
     191        DDR_B_D58    I/O   192        DDR_B_D62            I/O
     193        DDR_B_D59    I/O   194        DDR_B_D63            I/O
     195           GND        -    196            GND               -
     197           GND        -    198        PM_EXTTS#             O
     199           +3VS       -    200      PM_SMBDATA             I/O
     201           +3VS       -    202       PM_SMBCLK             I/O
     203          +0.75VS     -    204          +0.75VS             -




C-         [CONFIDENTIAL]            SatelliteL670/L675/Pro L670 Maintenance Manual
    C.15 JKB

                  Table C-15 Keyboard Connector pin assignments (34-pin)

              Pin No.     Signal name         I/O       Pin No.    Signal Name     I/O
                 1      NUM_LED#                           2      NC
                 3      CAPS_LED#                          4      +3VS
                 5      KSI1                               6      KSI6
                 7      KSI5                               8      KSI0
                 9      KSI4                              10      KSI3
                 11     KSI2                              12      KSI7
                 13     KSO15                             14      KSO12
                 15     KSO11                             16      KSO10
                 17     KSO9                              18      KSO8
                 19     KSO13                             20      KSO7
                 21     KSO6                              22      KSO14
                 23     KSO5                              24      KSO3
                 25     KSO4                              26      KSO0
                 27     KSO1                              28      KSO2
                 29     NC                                30      NC
                 31     KSO17                             32      NC
                 33     KSO16                             34      +3VS




Satellite L670/L675/ProL670 Series Maintenance Manual             [CONFIDENTIAL]         C-13
     C.16 JREAD

          Table C-16CARD READER connector pin assignments (21-pin)

         Pin No.       Signal name     I/O   Pin No.     Signal Name         I/O
            1        SDWP_MSCLK_R      O        2      SD_DATA1              I/O
            3        SD_DATA0          I/O      4      GND MSBS              -O
            5        GND                -       6      MS_DATA1_SD_D         I/O
                                                       ATA3
            7        MS_DATA2_SDCL     I/O      8
                     K_R                               +VCC_3IN1                 -
            9        MS_DATA0_SD_D     I/O     10
                     ATA5                              GND                       -
           11        MS_DATA2_SDCL     I/O     12
                     K_R                               MS_DATA3_SD_D         I/O
                                                       ATA7
           13        MSCD#              I      14
                                                       SDWP_MSCLK_R           O
           15        SDCMD             O       16      MS_DATA1_SD_D         I/O
                                                       ATA3
           17        +VCC_3IN1          -      18
                                                       SD_DATA2_MS_D         I/O
                                                       ATA5
           19        GND                -      20

           21        SDCD#              I




     C.17 JSPK

                   Table C-17 SPK connector pin assignments (4-pin)

         Pin No.       Signal name     I/O   Pin No.    Signal Name         I/O
            1        SPK_R1            O        2      SPK_R2                O
            3        SPK_L1            O        4      SPK_L2                O




     C.18 JPOWER

                Table C-18 Power/B connector pin assignments (4-pin)

         Pin No.       Signal name     I/O   Pin No.    Signal Name         I/O
            1        ON/OFFBTN#         I       2      NC                    -
            3        GND                -       4      GND                   -




C-          [CONFIDENTIAL]                     SatelliteL670/L675/Pro L670 Maintenance Manual
    C.19 JMDC

                      Table C-19 MDC connector pin assignments (12-pin)

            Pin No.        Signal name          I/O     Pin No.      Signal Name      I/O
               1        GND                      -         2       +MDC_VCC            -
               3        AZ_SDOUT_MD              O         4       NC                  -
               5        GND                      -         6       +3VALW              -
               7        AZ_SYNC_MD               O         8       GND                 -
               9        AZ_SDIN1_MD               I       10       GND                 -
               11       AZ_RST_MD#               O        12       AZ_BITCLK_MD       O




    C.20 JLEDB

          Table C-20 LED & Touch Button/B connector pin assignments (16-pin)

            Pin No.        Signal name          I/O     Pin No.         Signal Name   I/O
               1        GND                      -        2        GND                 -
               3        LID_SW#_R                I        4        ACIN_LED#          O
               5        PWR_ON_LED#              O        6        PWR_SUSP_LED#      O
               7        HDD_LED#                 O        8        CR_LED#            O
               9        BATT_FULL_LED#           O        10       BATT_CHG_LOW_      O
                                                                   LED#
               11       SW_L                     I        12       SW_R                I
               13       WL_BT_LED#               O        14       +3VALW              -
               15       +5VS                     -        16       +5VALW              -




    C.21 PJP1

                    Table C-21 AC Adaptor connector pin assignments (4-pin)

            Pin No.        Signal name          I/O     Pin No.      Signal Name      I/O
               1        DC_IN_S1                 -         2       DC_IN_S1            -
               3        GND                      -         4       GND                 -




Satellite L670/L675/ProL670 Series Maintenance Manual             [CONFIDENTIAL]            C-15
     C.22 PJP2

                   Table C-22 Battery connector pin assignments (9-pin)

         Pin No.        Signal name      I/O   Pin No.      Signal Name         I/O
            1        BATT_S1              -       2      BATT_S1                 -
            3        BATT_P3              -       4      BATT_P4                 -
            5        BATT_P5              -       6      EC_SMDA                I/O
            7        EC_SMCA             I/O      8      GND                     -
            9        GND                  -




C-              [CONFIDENTIAL]                    SatelliteL670/L675/Pro L670 Maintenance Manual
Appendix D           Keyboard Scan/Character Codes

                             Table D-1 Scan codes (set 1 and set 2) (1/4)

            Cap                       Code set 1             Code set 2
                      Keytop                                                       Note
            No.                     Make     Break    Make            Break
             01         ` ~          29        A9       0E       F0           0E
             02         1 !          02        82       16       F0           16
             03        2 @           03        83       1E       F0           1E
             04        3 #           04        84       26       F0           26
             05        4 $           05        85       25       F0           25
             06        5 %           06        86       2E       F0           2E
             07         6 ^          07        87       36       F0           36
             08        7 &           08        88       3D       F0           3D    *2
             09         8 *          09        89       3E       F0           3E    *2
             10         9 (          0A        8A       46       F0           46    *2
             11         0 )          0B        8B       45       F0           45
             12         - _          0C        8C       4E       F0           4E
             13        = +           0D        8D       55       F0           55
             15        BkSp          0E        8E       66       F0           66
             16        Tab           0F        8F       0D       F0           0D
             17         Q            10        90       15       F0           15
             18         W            11        91       1D       F0           1D
             19         E            12        92       24       F0           24
             20         R            13        93       2D       F0           2D
             21          T           14        94       2C       F0           2C
             22         Y            15        95       35       F0           35
             23         U            16        96       3C       F0           3C    *2
             24          I           17        97       43       F0           43    *2
             25         O            18        98       44       F0           44    *2
             26         P            19        99       4D       F0           4D    *2
             27         [ {          1A        9A       54       F0           54
             28         ] }          1B        9B       5B       F0           5B




SatelliteL670/L675/Pro L670 Maintenance Manual [CONFIDENTIAL]                             D-1
                  Table D-1 Scan codes (set 1 and set 2) (2/4)

     Cap                   Code set 1             Code set 2
           Keytop                                                       Note
     No.                 Make     Break    Make            Break
     29    \ | Caps       2B       AB        5D       F0           5D     *5
     30    Lock A         3A       BA        58       F0           58
     31       S           1E        9E       1C       F0           1C
     32       D           1F        9F       1B       F0           1B
     33       F           20        A0       23       F0           23
     34       G           21        A1       2B       F0           2B
     35       H           22        A2       34       F0           34
     36       J           23        A3       33       F0           33
     37       K           24        A4       3B       F0           3B     *2
     38       L           25        A5       42       F0           42     *2
     39       ; :         26        A6       4B       F0           4B     *2
     40    ` " Enter      27        A7       4C       F0           4C     *2
     41    Shift (L)      28        A8       52       F0           52
     43    No.102         1C       9C        5A       F0           5A     *3
            key
     44                   2A       AA        12       F0           12
             ZX
     45                   56       D6        61       F0           61
              C
     46       V           2C       AC        1A       F0           1A
     47       B           2D       AD        22       F0           22
     48       N           2E       AE        21       F0           21
     49       M           2F        AF       2A       F0           2A
     50      , <          30        B0       32       F0           32
     51      . >          31        B1       31       F0           31
     52    / ? Shift      32        B2       3A       F0           3A     *2
     53      (R)          33        B3       41       F0           41     *2
     54                   34        B4       49       F0           49     *2
     55                   35        B5       4A       F0           4A     *2
     57                   36        B6       59       F0           59




D-                      [CONFIDENTIAL]       SatelliteL670/L675/Pro L670 Maintenance Manual
                             Table D-1 Scan codes (set 1 and set 2) (3/4)

         Cap                          Code set 1                         Code set 2
                  Keytop                                                                         Note
         No.                      Make          Break      Make                   Break
          58       Ctrl(L)           1D             9D         14            F0           14      *3
          60       Alt (L)           38             B8         11            F0           11      *3
          61       Space             39             B9         29            F0           29
          62      ALT (R)       E0    38       E0    B8   E0    11         E0     F0      11
          64       Ctrl(R)      E0    1D       E0    9D   E0    14         E0     F0      14
          75        Ins         E0        52   E0    D2   E0    70         E0     F0      70      *1
          76        Del         E0    53       E0    D3   E0    71         E0     F0      71      *1
          79                    E0    4B       E0    CB   E0        6B     E0     F0        6B    *1
          80       Home         E0    47       E0    C7   E0        6C     E0     F0        6C    *1
          81        End         E0    4F       E0    CF   E0    69         E0     F0      69      *1
          83                    E0    48       E0    C8   E0    75         E0     F0      75      *1
          84                    E0    50       E0    D0   E0    72         E0     F0      72      *1
          85       PgUp         E0    49       E0    C9   E0        7D     E0     F0        7D    *1
          86       PgDn         E0    51       E0    D1   E0        7A     E0     F0        7A    *1
          89                    E0    4D       E0    CD   E0    74         E0     F0      74      *1
         110        Esc              01             81         76          F0          76
         112         F1              3B             BB         05          F0          05
         113         F2              3C             BC         06          F0          06
         114         F3              3D             BD         04          F0          04
         115         F4              3E             BE         0C          F0          0C
         116         F5              3F             BF         03          F0          03
         117         F6              40             C0         0B          F0          0B
         118         F7              41             C1         83          F0          83
         119         F8              42             C2         0A          F0          0A
         120         F9              43             C3         01          F0          01
         121        F10              44             C4         09          F0          09         *3




SatelliteL670D/L675D/Pro L670D Maintenance Manual [CONFIDENTIAL]                                        D-3
                           Table D-1 Scan codes (set 1 and set 2) (4/4)

      Cap                           Code set 1                      Code set 2
                 Keytop                                                                    Note
      No.                       Make       Break       Make                Break
      122            F11      57          D7          78              F0         78         *3
      123            F12      58          D8          07              F0         07         *3
      124        PrintSc      *6          *6          *6              *6                    *6
      126        Pause        *7          *7          *7              *7                    *7
      X              Fn       --          --          --              --                    *4
      X              Win      E0     5B   E0     DB   E0       1F     E0    F0        1F
      x              App      E0     5D   E0     DD   E0       2F     E0    F0        2F

       Notes:

            1.   *    Scan codes differ by mode.
            2.   *    Scan codes differ by overlay function.
            3.   *    Combination with the Fn key gives different codes.
            4.   *    The Fn key does not generate a code by itself.
            5.   *    This key corresponds to key No. 42 in a 102-key model.
            6.   *    Refer to Table D-6, No. 124 key scan code.
            7.   *    Refer to Table D-7, No. 126 key scan code.




D-4                                [CONFIDENTIAL]          SatelliteL670/L675/Pro L670 Maintenance Manual
                             Table D-2 Scan codes with left Shift key

      Cap     Key               Code set 1                                     Code set 2
      No.     top        Make                Break                 Make                          Break

      55      / INS   E0 AA E0 35 E0         B5   E0 2A E0    F0     12   E0     4A E0      F0    4A E0       12
      75      DEL     E0 AA E0 52 E0         D2    E0 2A E0   F0     12   E0    70   E0     F0    70     E0   12
      76              E0 AA E0 53 E0         D3   E0 2A E0    F0     12   E0    71   E0     F0    71     E0   12
      79      Home    E0 AA E0 4B E0 CB E0 2A E0              F0     12   E0     6B E0      F0    6B E0       12
      80      End     E0 AA E0 47 E0         C7   E0 2A E0    F0     12   E0    6C E0       F0 6C E0          12
      81              E0 AA E0 4F E0 CF E0 2A E0              F0     12   E0    69   E0     F0    69     E0   12
      83              E0 AA E0 48 E0         C8    E0 2A E0   F0     12   E0    75   E0     F0    75     E0   12
      84      PgUp    E0 AA E0 50 E0         D0    E0 2A E0   F0     12   E0    72   E0     F0    72     E0   12
      85      PgDn    E0 AA E0 49 E0         C9   E0 2A E0    F0     12   E0    7D E0       F0 7D E0          12
      86              E0 AA E0 51 E0         D1   E0 2A E0    F0     12   E0     7A E0      F0    7A E0       12
      89      Win     E0 AA E0 4D E0 CD E0 2A E0              F0     12   E0    74   E0     F0    74     E0   12
       X      App     E0 AA E0 5B E0 DB E0 2A E0              F0     12   E0    1F   E0     F0    1F     E0   12
       X              E0 AA E0 5D E0 DD E0 2A E0              F0     12   E0    2F   E0     F0    2F     E0   12

           Note : The table above shows scan codes with the left Shift key. In combination
           with the right Shift key, scan codes are changed as listed below:
                      With left Shift             With right Shift
           Set 1      E0 AA                       E0 B6
                      E0 2A                       E0 36
           Set 2      E0 F0 12                    E0 F0 59
                      E0 12                       E0 59




SatelliteL670D/L675D/Pro L670D Maintenance Manual [CONFIDENTIAL]                                                   D-5
                                    Table D-3 Scan codes in Numlock mode

      Cap        Key                     Code set 1                                               Code set 2
      No.        top             Make                       Break                 Make                         Break

      75         INS      E0 2A E0           52    E0       D2   E0    AA E0 12        E0    70       E0 F0    70    E0   F0 12
      76         DEL      E0 2A E0           53    E0       D3   E0    AA E0 12        E0    71       E0 F0    71    E0   F0 12
      79                  E0 2A E0 4B E0 CB                      E0    AA E0 12        E0    6B E0 F0          6B E0      F0 12
      80         Home     E0 2A E0           47    E0       C7   E0    AA E0 12        E0    6C E0 F0 6C E0               F0 12
      81         End      E0 2A E0           4F    E0       CF   E0    AA E0 12        E0    69       E0 F0    69    E0   F0 12
      83                  E0 2A E0           48    E0       C8   E0    AA E0 12        E0    75       E0 F0    75    E0   F0 12
      84                  E0 2A E0           50    E0       D0   E0    AA E0 12        E0    72       E0 F0    72    E0   F0 12
      85         PgUp     E0 2A E0           49    E0       C9   E0    AA E0 12        E0    7D E0 F0 7D E0               F0 12
      86         PgDn     E0 2A E0           51    E0       D1   E0    AA E0     12    E0    7A E0 F0          7A E0      F0 12
      89                  E0 2A E0 4D E0 CD E0                         AA E0 12        E0    74       E0 F0    74    E0   F0 12
       X         Win      E0 2A E0 5B E0 DB E0                        AA E0 12         E0    1F       E0 F0    1F    E0   F0 12
       X         App      E0 2A E0 5D E0 DD E0                        AA E0 12         E0    2F       E0 F0    2F    E0   F0 12



                                         Table D-4 Scan codes with Fn key

        Cap                                            Code set 1                                     Code set 2
           No.          Keytop                Make                    Break                Make                Break
           43            ENT            E0             1C        E0         9C        E0         5A      E0         F0        5A
            58         L-CTRL L-    E0                 1D        E0         9D        E0         14      E0         F0        14
            60           ALT        E0                 38        E0      B8           E0         11      E0         F0        11
           121          ARROW                     45                   C5                   77                F0         77
           122         NUMERIC                    45                   C5                   77                F0         77
           123           Scrl                     46                   C6                   7E                F0         7E




D-6                                          [CONFIDENTIAL]                   SatelliteL670/L675/Pro L670 Maintenance Manual
                                     Table D-5 Scan codes in overlay mode

         Cap                                       Code set 1                                      Code set 2
                        Keytop
         No.                              Make                    Break              Make                       Break
         09         8        (8)              48                   C8                    75              F0             75
         10         9        (9)              49                   C9                    7D              F0             7D
         11         0        (*)              37                   B7                    7C              F0             7C
         23         U        (4)              4B                   CB                    6B              F0             6B
         24         I        (5)              4C                   CC                    73              F0             73
         25         O        (6)              4D                   CD                    74              F0             74
         26         P        (



◦ Jabse Service Manual Search 2019 ◦ Jabse Pravopis ◦ Other service manual resources online : FixyaeServiceinfo
