   Toshiba/others NEC/TOKIN 0E907 and 0E128 FIX

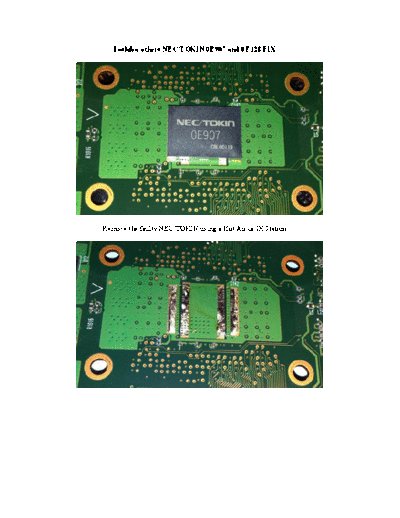

Remove the faulty NEC/TOKIN using a Hot Air or IR Station
             Remove the solder and clean the motherboard ...




For best results and an easy way to do the job, I recommend you to remove the
    varnish, apply solder and clean again as the following picture shows...




















Finally...
  install
  the
  tantalum
  capacitors!

    Make
  sure
  to
  install
  it
  correctly!











                JOB
  DONE!
