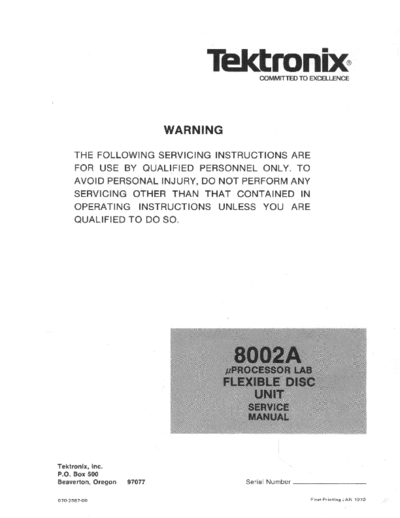

                                 ~ronoo    COMMITTED TO EXCELLENCE




                            WARNING

      THE FOLLOWING SERVICING INSTRUCTIONS ARE
      FOR USE BY QUALIFIED PERSONNEL ONLY. TO
      AVOID PERSONAL INJURY, DO NOT PERFORM ANY
      SERVICING OTHER THAN THAT CONTAINED IN
      OPERATING INSTRUCTIONS UNLESS YOU ARE
      QUALIFIED TO DO SO.




                                       8002A
                                      pPROCESSOR LAB
                                      FLEXIBLE DISC
                                          UNIT
                                         SERVICE
                                         MANUAL



Tektronix, Inc.
P.O. Box 500
Beaverton, Oregon   97077                Se rial Number _ _ _ _ __


0 70-2587-00                                            First Printing JAN 1979
                                        WARRANTY
The S001 /S002ApProcessor Lab System and options. excluding customer supplied equipment,
is warranted against defective materials and workmanship. under normal use. for a period of
ninety (90) days from date of shipment. CRTs found to be defective after the ninety (90) day
period and up to twelve (12) months from date of shipment will be exchanged at no charge for the
material. Tektronix will repair or replace. at its option. those System componeots which
Tektronix determines to be defective within the warranty period.

In addition. in those areas where Tektronix has service centers available for this system, on-site
warranty repair is provided at no charge during the first ninety (90) days from date of shipment.

Tektronix shall be under no obligation to furnish warranty service if:
    a. Attempts to install. repair. or service the equipmen are made by perso nel other then
       Tektronix service representatives.
    b. Modifications are made to the hardware or software by personnel other than Thktronix
       service representatives.
    c. Damage results rom connecting the SOOl/8002A pProcessor Lab System                       0
       incompatible equipment.

There is no implied warranty for fitness of purpose. Tektronix is not liable for consequential
damages.                                                                              -1
