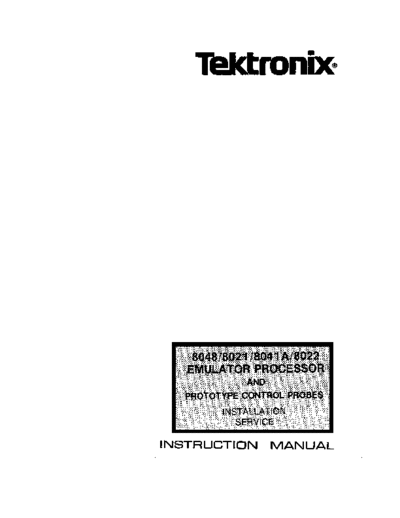

Image preview - the first page of the document
>> Download 070-3671-00_8500_8048_Emulator_Processor_Nov81 documenatation <<
Text preview - extract from the document
1l!ktronoo
INSTRUCTION MANUAL
COMMITTED TO EXCELLENCE
WARNING
THE FOLLOWING SERVICING INSTRUCTIONS
ARE FOR USE BY QUALI FI ED PERSONNEL ONLY.
TO AVOID PERSONAL INJURY, DO NOT
PERFORM ANY SERVICING OTHER THAN THAT
CONTAINED IN OPERATING INSTRUCTIONS
UNLESS YOU ARE QUALIFIED TO DO SO.
PLEASE CHECK FOR CHANGE INFORMATION
AT THE REAR OF THIS MANUAL.
This manual supports the fol-
lowing TEKTRONIX products:
Factory Field
Installed Installed
Product Option Option
EMULATOR PROCESSOR
8550 2H 8300E10
PROTOTYPE CONTROL PROBES
8550 3K 8300P10
8550 3L 8300P11
8550 3M 8300P12
8550 3N 8300P13
INSTRUCTION MANUAL
Tektronix, Inc.
P.O. Box 500
Beaverton, Oregon 97077 Serial Number _ _ _ _ _ __
070-3671-00 First Printing FEB 1981
Product Group 61 Revised NOV 1981
LIMITED RIGHTS LEGEND
Software License No. __
Contractor: Tektronix, Inc.
Explanation of Limited Rights Data Identification Method
Used: Entire document subject to limited rights.
Those portions of this technical data indicated as limited rights data shall not,
without the written permission of the above Tektronix, be either (a) used,
released or disclosed in whole or in part outside the Customer, (b) used in whole
or in part by the Customer for manufacture or, in the case of computer software
documentation, for preparing the same or similar computer software, or (c) used
by a party other than the Customer, except for: (i) emergency repair or overhaul
work only, by or for the Customer, where the item or process concerned is not
otherwise reasonably available to enable timely performance of the work,
provided that the release or disclosure hereof outside the Customer shall be
made subject to a prohibition against further use, release or disclosure; or (ii)
release to a foreign government, as the interest of the United States may
require, only for information or evaluation within such gov6inment Oi fOi
emergency repair or overhaul work by or for such government under the
conditions of (i) above. This legend, together with the indications ofthe portions
of this data which are subject to such limitations shall be included on any
reproduction hereof which includes any part of the portions subject to such
limitations.
RESTRICTED RIGHTS IN SOFTWARE
The software described in this document is licensed software and subject to
restricted rights. The software may be used with the computer for which or with
which it was acquired. The software may be used with a backup computer if the
computer for which or with which it was acquired is inoperative. The software
may be copied for archive or backup purposes. The software may be modified or
combined with other software, subject to the provision that those portions of the
derivative software incorporating restricted rights software are subject to the
same restricted rights.
