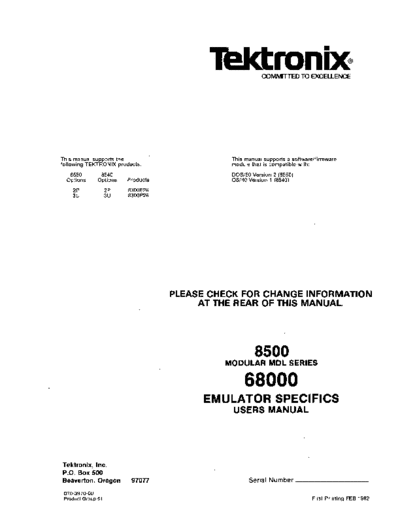

Image preview - the first page of the document
>> Download 070-3970-00_68000_Emulator_Specifics_Users_Manual_Feb82 documenatation <<
Text preview - extract from the document
COMMITTED TO EXCELLENCE
This manual supports the This manual supports a software/firmware
following TEKTRONIX products: module that is compatible with:
8550 8540 005/50 Version 2 (8550)
Options Options Products 05/40 Version 1 (8540)
2P 2P 8300E26
3U 3U 8300P26
PLEASE CHECK FOR CHANGE INFORMATION
AT THE REAR OF THIS MANUAL.
8500
MODULAR MOL SERIES
68000
EMULATOR SPECIFICS
USERS MANUAL
Tektronix, Inc.
P.O. Box 500
Beaverton, Oregon 97077 Serial Number - - - - - - - -
070-3970-00
Product Group 61 First Printing FEB 1982
LIMITED RIGHTS LEGEND
Software License No. _ _ _ _ _ _ _ _ _ _ _ _ __
Contractor: Tektronix, Inc.
Explanation of Limited Rights Data Identification Method
Used: .Entire document subject to limited rights.
Those portions of this technical data indicated as limited rights data shall not,
without the written permission of the above Tektronix, be either (a) used,
released or disclosed in whole or in part outside the Customer, (b) used in whole
or in part by the Customer for manufacture or, in the case of computer software
documentation, for preparing the same or similar computer software, or (c) used
by a party other than the Customer, except for: (i) emergency repair or overhaul
work only, by or for the Customer, where the item or process concerned is not
otherwise reasonably available to enable timely performance of the work,
provided that the release or disclosure hereof outside the Customer shall be
made subject to a prohibition against further use, release or disclosure; or (ii)
release to a foreign government, as the interest of the United States may
require, only for information or evaluation within such government or for
emergency repair or overhaul work by or for such government under the
conditions of (i) above. This legend, together with the indications ofthe portions
of this data which are subject to such limitations shall be included on any
reproduction hereof which includes any part of the portions subject to such
limitations.
RESTRICTED RIGHTS IN SOFTWARE
The software described in this document is licensed software and subject to
restricted rights. The software may be used with the computer for which orwith
which it was acquired. The software may be used with a backup computer ifthe
computer for which or with which it was acquired is inoperative. The software
may be copied for archive or backup purposes. The software may be modified or
combined with other software, subject to the provision that those portions of the
derivative software incorporating restricted rights software are subject to the
same restricted rights.
