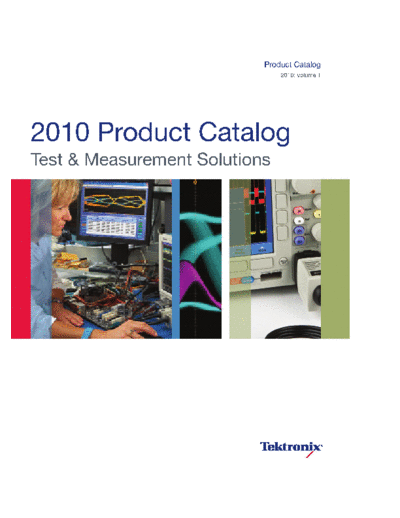

Image preview - the first page of the document
>> Download 49W_19265_8 documenatation <<
Text preview - extract from the document
Product Catalog
2010: Volume 1
2010 Product Catalog
Test & Measurement Solutions
Table of Contents
2010 Product Catalog, Volume 1
Table of Contents
Oscilloscopes ............................ 3-10
Selection Guides ..................................3-6
Table of Contents
Visit: www.tektronix.com/oscilloscopes
Probes and Accessories .......... 11-12
Selection Guide ..................................... 11
Visit: www.tektronix.com/accessories
Digital Multimeters .........................13 Tektronix: The World's Standard in Oscilloscopes
Selection Guide ..................................... 13 8 out of 10 engineers around the world trust Tektronix to help them speed debug and
Visit: www.tektronix.com/dmm test of tomorrow's designs. With the broadest portfolio of scopes available, the richest
set of product features, the most extensive analysis capability and our award-winning
Signal Generators ..........................15 service and support, Tektronix has the right oscilloscope to meet your need. Innovators
Visit: www.tektronix.com/signal_generators like you, committed to using the best, have made Tektronix the dominant provider of
oscilloscopes around the world for more than 60 years.
Spectrum Analyzers ................ 16-17
Basic Oscilloscopes for lowest cost signal visualization and troubleshooting.
Selection Guide ..................................... 16
Visit: www.tektronix.com/spectrum_analyzers Bench Oscilloscopes up to 1 GHz bandwidth for debug and analysis of embedded
system designs with analog, digital, and serial signals.
Logic Analyzers ....................... 18-19 Performance Oscilloscopes for analysis, characterization and automated compliance
Selection Guide ..................................... 18 test of 1st and 2nd generation serial data standards, memory and RF devices includ-
Visit: www.tektronix.com/logic_analyzers ing up to 20 GHz bandwidth for 3rd generation serial data standards and the fastest
optical and electrical technologies.
Software .................................. 20-27
Video Products ........................ 28-29 Tektronix Online:
Visit: www.tektronix.com/video www.tektronix.com
Tektronix website is a reliable resource for the latest information on products, application
Technology/Applications
and technology solutions, with online selection tools to guide you to the appropriate
Solutions................................... 30-35
product to fulfill your need. You will also find a library of educational materials to help you
Service ..................................... 36-37 master the challenges of your application and get the best out of your tools, including
Visit: www.tektronix.com/service Primers, How-To Videos and Webinars.
Technical Content Product Demos
Enhance your understanding of technology, Test-drive products on-line.
application and product with the latest resources www.tektronix.com
covering fundamentals and advanced topics.
www.tektronix.com/techpapers Webinars
Learn the latest tips and tricks to address your
Service application challenges.
Online look-up Tool www.tektronix.com/tutorials
Calibration
www.tektronix.com/service Videos
See and hear expert demonstrations and discussions.
MyTekResources www.tektronix.com
Download Manuals
Access to Software and Drivers Tektronix RSS Feeds
Check on Order Status All the latest information
when you want it.
Review Service Status
www.tektronix.com/rss
My Product Support
Webinars
www.tektronix.com/mytek
2 www.tektronix.com
Oscilloscope Selection
2010 Product Catalog, Volume 1
Oscilloscope Selection Guide
TDS2000B Series TPS2000 Series TDS3000C Series
Basic Oscilloscope Product Selection
To accurately visualize the intricate details of fast changing signals, you need an oscilloscope with uncompromised performance. Tektronix basic oscilloscopes feature
digital real-time sampling with at least x5 oversampling on all channels, all the time, to precisely capture today's complex signals.
TDS1000B/TDS2000B TPS2000 TDS3000C
Channels 2, 4 2, 4 (isolated) 2, 4
Bandwidth 40 MHz to 200 MHz 100 MHz to 200 MHz 100 MHz to 500 MHz
Rise Time 5.8 ns to 2.1 ns 3.5 ns to 2.1 ns 3.5 ns to 700 ps
Sample Rate 500 MS/s to 2 GS/s 1 GS/s to 2 GS/s 1.25 GS/s to 5 GS/s
Max Record Length 2.5 k points 2.5 k points 10 k points
Trigger Types Edge, Pulse (width), Video Edge, Pulse (width), Video Edge, Logic (Pattern, State), Pulse (Glitch,
Width, Runt, Slew Rate), Video, Extended
Video*, Comm*
*Optional
Connectivity USB Host, USB Device, GPIB* RS-232, Centronics, CompactFlash USB Host, LAN (10Base-T Ethernet), GPIB*,
RS-232*, Video Out*
*Optional
*Optional
Waveform Math 12 Automated Measurements, Arithmetic 11 Automated Measurements, Arithmetic 25 Automated Measurements, Arithmetic
and Analysis Waveform Math, FFT Waveform Math, FFT Waveform Math, FFT, Advanced Math*
*Optional
Software PC Communications Software: PC Communications Software: PC Communications Software:
