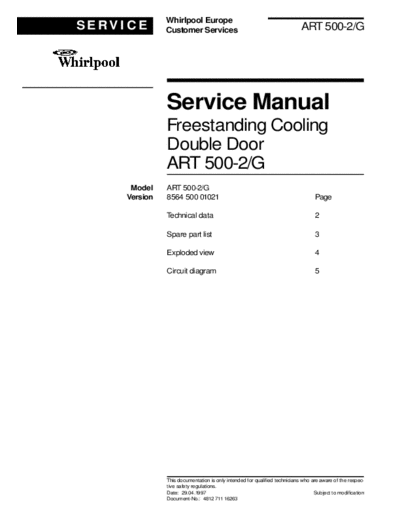

Image preview - the first page of the document
>> Download ART5002G_ET-SB-EX-SI_1290516803 documenatation <<
Text preview - extract from the document
Whirlpool Europe
SERVICE Customer Services ART 500-2/G
Service Manual
Freestanding Cooling
Double Door
ART 500-2/G
Model ART 500-2/G
Version 8564 500 01021 Page
Technical data 2
Spare part list 3
Exploded view 4
Circuit diagram 5
This documentation is only intended for qualified technicians who are aware of the respec-
tive safety regulations.
Date: 29.04.1997 Subject to modification
Document-No.: 4812 711 16263
29.04.1997 / Page 2 Whirlpool Europe
Doc. No: 4812 711 16263 Customer Service SERVICE
Technical data
Dimensions Compressor (for service)
Height 127,0 cm Type H12 AF 67
Width 51,5 cm Capacity (CECOMAF) 100 W
Depth 60,0 cm
Cooling agent
Capacity
Type R 134 a
Quantity 115 g
Total
gross 189 l Thermostat
net 187 l
Switching value
Cooling
Switch on temperature
gross 147 l min. + 4,5 ◦ Jabse Service Manual Search 2024 ◦ Jabse Pravopis ◦ onTap.bg ◦ Other service manual resources online : Fixya ◦ eServiceinfo
