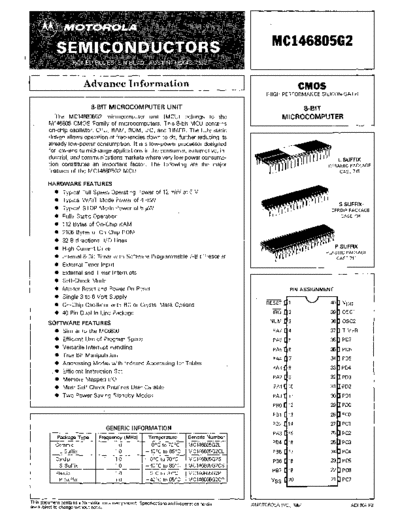

Image preview - the first page of the document
146805G2_Nov84


>> Download 146805G2_Nov84 documenatation <<

Text preview - extract from the document
                                                                                                       MC14680SG2

                          Advance Information                                                                    CMOS
                                                                                                     (HIGH-PERFORMANCE SILICON-GATE)

                               8-BIT MICROCOMPUTER UNIT                                                            8-BIT
            The MC146805G2 microcomputer unit (MCU) belongs to the                                            MICROCOMPUTER
         M146805 CMOS Family of microcomputers. This 8-bit MCU contains
         on-chip oscillator, CPU, RAM, ROM, 1/0, and TIMER. The fully static
         design allows operation at frequencies down to dc, further reducing its
         already low-power consumption. It is a low-power processor designed
         for low-end to mid-range applications in the consumer, automotive, in-
         dustrial, and communications markets where very low power consump-
         tion constitutes an important factor. The following are the major
         features of the MC146805G2 MCU.

        HARDWARE FEATURES
