www.iFixit.com

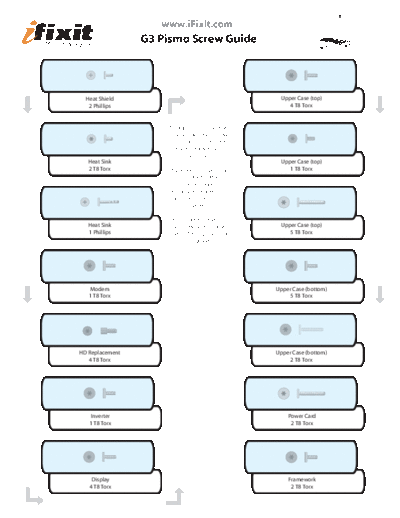

G3 Pismo Screw Guide
Heat Shield Upper Case (top)
2 Phillips 4 T8 Torx
To organize your screws,
simply place each screw
in the appropriate box
as you remove them
from your laptop.
Heat Sink Upper Case (top)
2 T8 Torx If you are not planning 1 T8 Torx
on immediately
reassembling your
laptop, you may want to
tape the screws to this
paper.
Due to model variations,
Heat Sink the screws you remove Upper Case (top)
1 Phillips may differ slightly from 5 T8 Torx
this guide.
Modem Upper Case (bottom)
1 T8 Torx 5 T8 Torx
HD Replacement Upper Case (bottom)
4 T8 Torx 2 T8 Torx
Inverter Power Card
1 T8 Torx 2 T8 Torx
Display Framework
4 T8 Torx 2 T8 Torx
www.iFixit.com
G3 Pismo Screw Guide
Page 2
PC Card Cage PC Card Cage
2 Phillips 2 Phillips
