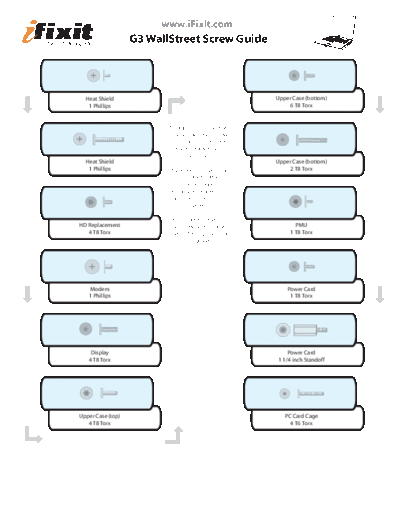

Image preview - the first page of the document
>> Download G3-Wallstreet-Screw-Guide-uMByVeMRY2vUPNFv documenatation <<
Text preview - extract from the document
www.iFixit.com
G3 WallStreet Screw Guide
Heat Shield Upper Case (bottom)
1 Phillips 6 T8 Torx
To organize your screws,
simply place each screw
in the appropriate box
as you remove them
from your laptop.
Heat Shield Upper Case (bottom)
1 Phillips If you are not planning 2 T8 Torx
on immediately
reassembling your
laptop, you may want to
tape the screws to this
paper.
Due to model variations,
HD Replacement the screws you remove PMU
4 T8 Torx may differ slightly from 1 T8 Torx
this guide.
Modem Power Card
1 Phillips 1 T8 Torx
Display Power Card
4 T8 Torx 1 1/4 inch Standoff
Upper Case (top) PC Card Cage
4 T8 Torx 4 T6 Torx
