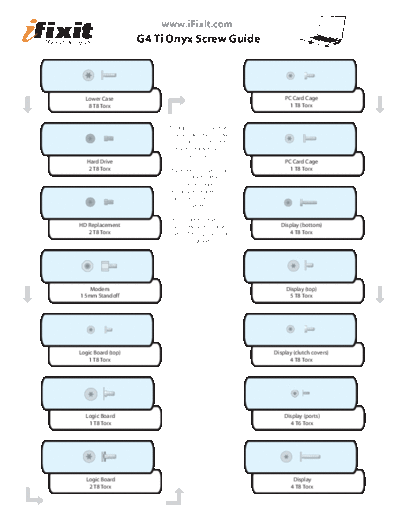

Image preview - the first page of the document
>> Download G4-Ti-Onyx-Screw-Guide-LGMPZUKaULZ3ydmN documenatation <<
Text preview - extract from the document
www.iFixit.com
G4 Ti Onyx Screw Guide
Lower Case PC Card Cage
8 T8 Torx 1 T8 Torx
To organize your screws,
simply place each screw
in the appropriate box
as you remove them
from your laptop.
Hard Drive PC Card Cage
2 T8 Torx If you are not planning 1 T8 Torx
on immediately
reassembling your
laptop, you may want to
tape the screws to this
paper.
Due to model variations,
HD Replacement the screws you remove Display (bottom)
2 T8 Torx may differ slightly from 4 T8 Torx
this guide.
Modem Display (top)
1 5mm Standoff 5 T8 Torx
Logic Board (top) Display (clutch covers)
1 T8 Torx 4 T8 Torx
Logic Board Display (ports)
1 T8 Torx 4 T6 Torx
Logic Board Display
2 T8 Torx 4 T8 Torx
