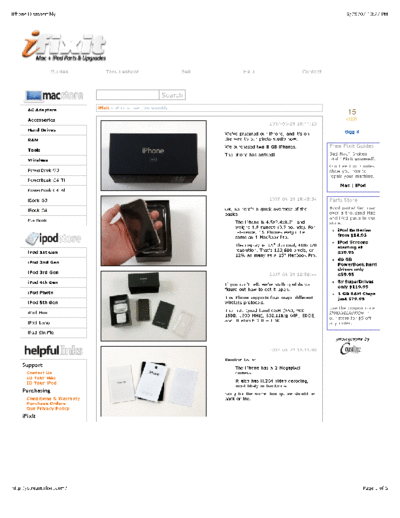

Image preview - the first page of the document
>> Download iPhone-2G_Disassembly_SVCM_en documenatation <<
Text preview - extract from the document
iPhone Disassembly 6/29/07 10:27 PM
Guides Troubleshoot Sell Help Contact
Search
iFixit> iPhone Live Disassembly
AC Adapters
15
Accessories diggs
2007-06-29 18:44:13
Hard Drives digg it
We've procured our iPhone, and it's on
RAM the way to our photo studio now.
We purchased two 8 GB iPhones. Free Fixit Guides
Tools
The phone has arrived! Sad Mac? Broken
Wireless iPod? Fixit yourself.
Our free Fixit Guides
PowerBook G3 show you how to
repair your machine.
PowerBook G4 Ti
Mac | iPod
PowerBook G4 Al
iBook G3 2007-06-29 18:49:34 Parts Store
OK, so here's a quick overview of the Need parts? We have
iBook G4
basics. over a thousand Mac
and iPod parts in our
MacBook The iPhone is 4.5x2.4x0.5", and store.
weighs 4.8 ounces (0.3 pounds). For
iPod Batteries
reference, 18 iPhones weigh the
from $14.95
same as 1 MacBook Pro.
iPod Screens
The display is 3.5" diagonal, 480x320
starting at
resolution. That's 153,600 pixels, or
iPod 1st Gen $39.95
12% as many as a 15" MacBook Pro.
60 GB
iPod 2nd Gen
PowerBook hard
drives only
iPod 3rd Gen
2007-06-29 18:50:44 $59.95
iPod 4th Gen 8x SuperDrives
If you can't tell, we're stalling while we only $119.95
figure out how to get it open.
iPod Photo 1 GB RAM Chips
The iPhone supports four major different just $79.95
iPod 5th Gen wireless protocols.
Use the coupon code
The List: Quad-band GSM (850, 900,
iPod Mini IPHONELAUNCH in
1800, 1900 MHz), 802.11b/g WiFi, EDGE,
our store for $5 off
iPod Nano and Bluetooth 2.0 + EDR.
any order.
iPod Shuffle
photography by
2007-06-29 19:11:08
Random facts:
Support The iPhone has a 2 Megapixel
Contact Us camera.
ID Your Mac
It also has H.264 video decoding,
ID Your iPod
most likely in hardware.
Purchasing
Sorry for the server hiccup, we should be
Conditions & Warranty back online.
Purchase Orders
Our Privacy Policy
iFixit
About Us
http://stream.ifixit.com/ Page 1 of 5
iPhone Disassembly 6/29/07 10:27 PM
About Us 2007-06-29 19:13:33
Press Releases
Why? Front of the iPhone. The battery was
partially charged when we got it.
2007-06-29 19:14:23
iPhone's back.
2007-06-29 19:27:25
We've got the iPhone apart. It was a little
bit tricky.
We removed the black antenna plate first.
You can see the grounding screw on the
back panel holding the antenna cable and
connecting the front and back case.
2007-06-29 19:21:20
Separating the front and back case.
There's a headphone jack cable to
disconnect before you can completely
remove the back panel.
2007-06-29 19:30:33
At last! The moment you've all been
waiting for.
The battery is huge, and soldered to the
logic board.
You can see the SIM card bracket and
headphone jack on the rear panel.
2007-06-29 19:27:41
The battery has Apple model # 616-0290
L1S1376APPC.
3.7 V Li-Ion Polymer battery
You can see at least two antenna cables
connecting to the logic board.
http://stream.ifixit.com/ Page 2 of 5
iPhone Disassembly 6/29/07 10:27 PM
2007-06-29 19:29:35
Disconnecting the two antenna cables.
There's a dab of glue underneath both of
the antenna connectors, presumably for
reliability.
One has to imagine that Apple was extra-
paranoid about reliability on this phone.
They've certainly learned their lessons
from the iPod.
2007-06-29 19:35:37
Removing three Phillips #00 screws
securing the logic board to the front
panel. The screws are:
Where the screwdriver is
Underneath the black camera in the
upper right hand corner.
To the left of the battery wires that
are soldered to the logic board.
2007-06-29 19:38:34
Removing the camera, on the top of the
phone. This is the standard camera.
2007-06-29 19:38:59
Removing ten Phillips #00 screws around
the perimeter of the iPhone.
2007-06-29 19:38:59
Lifting up the logic board. There are three
connectors underneath. They are speaker,
touch sensor, and display cables.
Disconnect the two connectors on the left
side of the image.
http://stream.ifixit.com/ Page 3 of 5
iPhone Disassembly 6/29/07 10:27 PM
2007-06-29 19:38:59
Disconnect the remaining connector.
2007-06-29 19:38:59
Flip up the retaining bar to free the dock
connector cable.
2007-06-29 19:38:59
Close-up shot of the logic board. The logic
board is two layers thick, so it's difficult to
see components.
We haven't found a way to pry the two
sections apart without damaging the logic
board, so it's virtually impossible to tell
you what's in there.
2007-06-29 19:38:59
View of the iPhone with the logic board
and battery removed.
2007-06-29 19:38:59
Disconnect the antenna cable to the left
of the dock connector.
2007-06-29 19:38:59
Peel up the antenna ribbon sheet from the
large black plastic piece
You can now see why the iPhone has
the black lower section of the back
case. The antenna encompasses this
entire region.
http://stream.ifixit.com/ Page 4 of 5
iPhone Disassembly 6/29/07 10:27 PM
2007-06-29 19:38:59
Remove the hollow black plastic piece
that was covered by the antenna.
There is some empty space within it
-- the only open internal space.
2007-06-29 19:38:59
The iPhone is completely apart!
The phone had about 16 screws total,
unlike many iPods. The iPod Nano only
has three screws.
