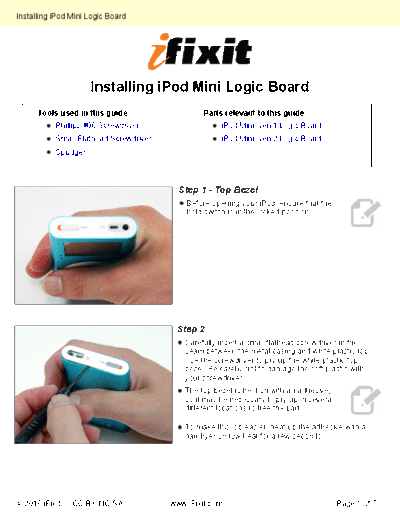

Image preview - the first page of the document
>> Download Installing-Logic-Board-416 documenatation <<
Text preview - extract from the document
Installing iPod Mini Logic Board
Installing iPod Mini Logic Board
Tools used in this guide Parts relevant to this guide
Phillips #00 Screwdriver iPod Mini Gen 1 Logic Board
Small Flathead Screwdriver iPod Mini Gen 2 Logic Board
Spudger
Step 1 - Top Bezel
Before opening your iPod, ensure that the
hold switch is in the locked position.
Step 2
Carefully insert a small flathead screwdriver in the
seam between the metal casing and white plastic top.
Use the screwdriver to pry up the white plastic top
bezel. Be careful not to damage the soft plastic with
your screwdriver.
The top bezel is held on with an adhesive,
so it may be necessary to pry up in several
different locations to free the part.
To make this job easier, heat up the adhesive with a
hairdryer on low heat for a few seconds.
