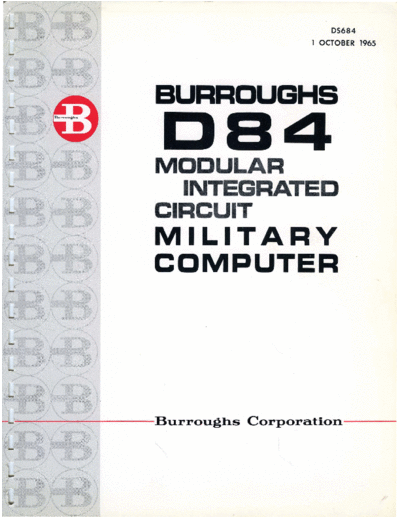

Image preview - the first page of the document
DS684_Burroughs_D84_Modular_Integrated_Circuit_Military_Computer_Oct65


>> Download DS684_Burroughs_D84_Modular_Integrated_Circuit_Military_Computer_Oct65 documenatation <<

Text preview - extract from the document
                          05684
                      1 OCTOBER 1965




        BURROUGHS

        MODULAR
          INTEGRATED
        CIRCUIT
        MILITARY
        COMPUTER




~~~-Burroughs   Corporation- -
                                                      05684
                                                  1 OCTOBER 1965




        BURROUGHS

       MODULAR
         INTEGRATED
       CIRCUIT
       MILITARY
       COMPUTER

          CHARTS   1   THROUGH   11   INTRODUCTION
          CHARTS 12    THROUGH 27     LOGIC/SYSTEM
          CHARTS 28    THROUGH 37     CIRCUITS
          CHARTS 38    THROUGH 51     PACKAGING
          CHARTS 52    THROUGH 54     SUMMARY




;.......!----Burroughs Corporation - - - -
          1. FUNCTIONAL MODULARITY
              -MATRIX ORGANIZATION
                         0825 -1962
                         0830 -1964
                         88500-1966


         2. ADVANCED MICROCIRCUIT TECHNIQUES*, AND

         3.    ADVANCED MAULER COMPUTER DESIGN**

*   FEB. 164 COMPLETION OF 12-BIT ARITHMETIC UNIT (700 I.C"s ) -
      LIFE-TEST CONTINUING.

** TO   IMPROVE T. E.C. (REDUCE IN SIZE, INCREASE MTBF)
                                                                   1.
COMBINED TO PRODUCE D84                               *
FEATURING                PHYSICALLY INDEPENDENT FUNCTIONAL MODULES
                         ALL LOGIC IMPL~M
