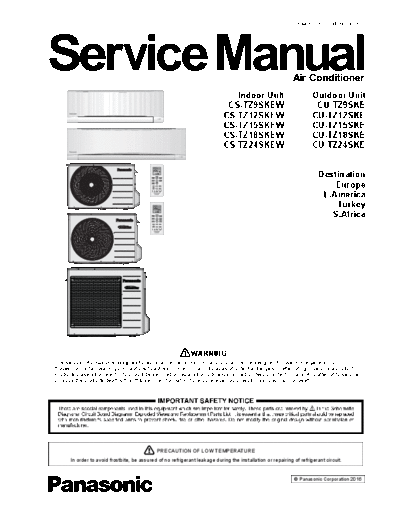

Image preview - the first page of the document
PAPAMY1603029CE


>> Download PAPAMY1603029CE documenatation <<

Text preview - extract from the document
                                                                                                              Order No: PAPAMY1603029CE




                                                                                 Indoor Unit                           Outdoor Unit
                                                                               CS-TZ9SKEW                               CU-TZ9SKE
                                                                              CS-TZ12SKEW                              CU-TZ12SKE
                                                                              CS-TZ15SKEW                              CU-TZ15SKE
                                                                              CS-TZ18SKEW                              CU-TZ18SKE
                                                                              CS-TZ24SKEW                              CU-TZ24SKE


                                                                                                                          Destination
                                                                                                                              Europe
                                                                                                                           L.America
                                                                                                                              Turkey
                                                                                                                             S.Africa




                                                               WARNING
This service information is designed for experienced repair technicians only and is not designed for use by the general public.
It does not contain warnings or cautions to advise non-technical individuals of potential dangers in attempting to service a product.
Products powered by electricity should be serviced or repaired only by experienced professional technicians. Any attempt to service
or repair the products dealt with in this service information by anyone else could result in serious injury or death.




                                               PRECAUTION OF LOW TEMPERATURE
       In order to avoid frostbite, be assured of no refrigerant leakage during the installation or repairing of refrigerant circuit.
