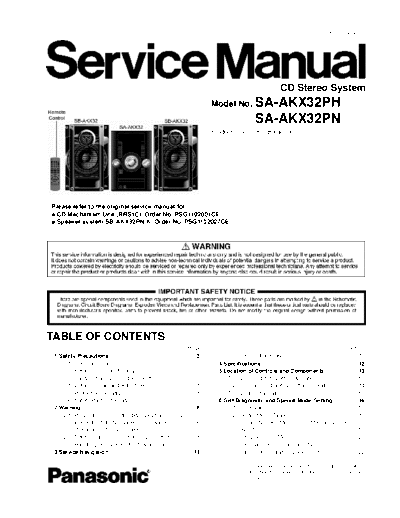

Image preview - the first page of the document
MS_SC-AKX32LB-K


>> Download MS_SC-AKX32LB-K documenatation <<

Text preview - extract from the document
                                                                                                                                      PSG1102025CE




                                                                                                              CD Stereo System
                                                                              Model No. SA-AKX32PH
                                                                                                 SA-AKX32PN
                                                                              Product Color: (K)...Black Type




Please refer to the original service manual for:
  CD Mechanism Unit (BRS1C), Order No. PSG1102001CE
  Speaker system SB-AKX32PN-K, Order No. PSG1102027CE




TABLE OF CONTENTS
                                                                    PAGE                                                                         PAGE
 1 Safety Precautions----------------------------------------------- 3             3.1. Service Information -------------------------------------- 11
    1.1. General Guidelines---------------------------------------- 3           4 Specifications ---------------------------------------------------- 12
    1.2. Before Use (For PH only)-------------------------------- 3             5 Location of Controls and Components------------------ 13
    1.3. Caution For Fuse Replacement------------------------ 3                    5.1. Main Unit Key Button Operation---------------------- 13
    1.4. Before Repair and Adjustment ------------------------- 4                  5.2. Remote Control Key Button Operation ------------- 14
    1.5. Protection Circuitry ---------------------------------------- 4           5.3. Media Information---------------------------------------- 15
    1.6. Safety Parts Information --------------------------------- 5           6 Self-Diagnostic and Special Mode Setting ------------- 16
 2 Warning -------------------------------------------------------------- 6        6.1. Cold-Start -------------------------------------------------- 16
    2.1. Prevention of Electrostatic Discharge (ESD)                               6.2. Doctor Mode Table--------------------------------------- 17
         to Electrostatic Sensitive (ES) Devices -------------- 6                  6.3. Reliability Test Mode (CD Mechanism Unit
    2.2. Precaution of Laser Diode------------------------------- 7                     (BRS1C))--------------------------------------------------- 19
    2.3. Service caution based on Legal restrictions -------- 8                    6.4. Self-Diagnostic Mode ----------------------------------- 20
    2.4. Handling Precautions for Traverse Unit-------------- 9                    6.5. Self-Diagnostic Error Code Table -------------------- 21
 3 Service Navigation ----------------------------------------------11             6.6. Sales Demonstration Lock Function ---------------- 22
