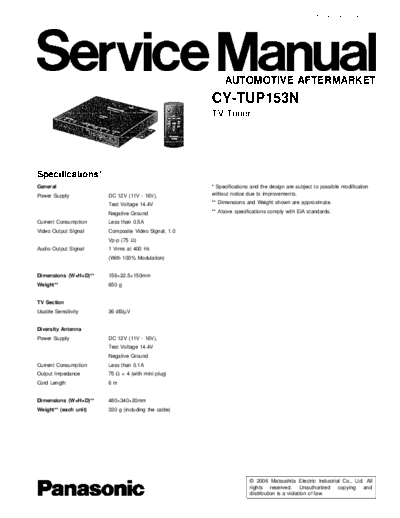

Image preview - the first page of the document



>> Download sm00cytup153n documenatation <<

Text preview - extract from the document

                                                                                             ORDER NO. ACED060117C8




                                                          AUTOMOTIVE AFTERMARKET
                                                     CY-TUP153N
                                                     TV Tuner




Specifications*
General                                              * Specifications and the design are subject to possible modification
Power Supply           DC 12V (11V - 16V),           without notice due to improvements.

                       Test Voltage 14.4V            ** Dimensions and Weight shown are approximate.

                       Negative Ground               ** Above specifications comply with EIA standards.

Current Consumption    Less than 0.5A
Video Output Signal    Composite Video Signal, 1.0
                       Vp-p (75 )
Audio Output Signal    1 Vrms at 400 Hz
                       (With 100% Modulation)


Dimensions (W
