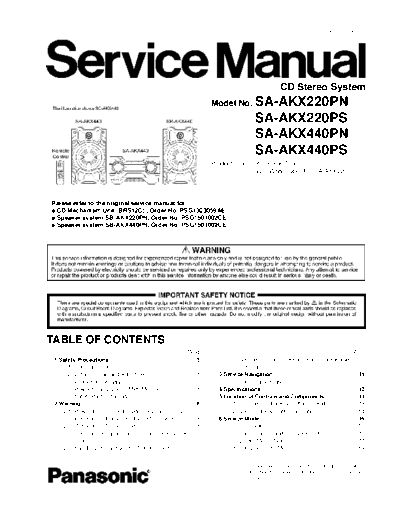

Image preview - the first page of the document
>> Download PSG1601001CE_PRINTDB documenatation <<Text preview - extract from the document PSG1601001CE
CD Stereo System
Model No. SA-AKX220PN
SA-AKX220PS
SA-AKX440PN
SA-AKX440PS
Product Color: (K)...Black Type
(W)...White Type (For SA-AKX220)
Please refer to the original service manual for:
CD Mechanism Unit (BRS12C) , Order No. PSG1303059AE
Speaker system SB-AKX220PN, Order No. PSG1601002CE
Speaker system SB-AKX440PN, Order No. PSG1601002CE
TABLE OF CONTENTS
PAGE PAGE
1 Safety Precautions----------------------------------------------- 3 2.5. Grounding for electrostatic breakdown
1.1. General Guidelines---------------------------------------- 3 prevention-------------------------------------------------- 10
1.2. Before Repair and Adjustment ------------------------- 4 3 Service Navigation --------------------------------------------- 11
1.3. Protection Circuitry ---------------------------------------- 4 3.1. Service Information -------------------------------------- 11
1.4. Power Supply using SMPS Module------------------- 4 4 Specifications ---------------------------------------------------- 12
1.5. Safety Parts Information --------------------------------- 7 5 Location of Controls and Components------------------ 13
2 Warning -------------------------------------------------------------- 8 5.1. Remote Control Key Button Operation ------------- 13
2.1. Prevention of Electrostatic Discharge (ESD) 5.2. Main Unit Key Button Operation---------------------- 14
to Electrostatically Sensitive (ES) Devices---------- 8 6 Service Mode ----------------------------------------------------- 16
2.2. Precaution of Laser Diode------------------------------- 8 6.1. Cold-Start -------------------------------------------------- 16
2.3. General description about Lead Free Solder 6.2. Sales Demonstration Lock Function ---------------- 16
(PbF)---------------------------------------------------------- 9 6.3. Doctor Mode Table--------------------------------------- 17
2.4. Handling Precautions for Traverse Unit-------------- 9 6.4. Self-Diagnostic Mode ----------------------------------- 19
