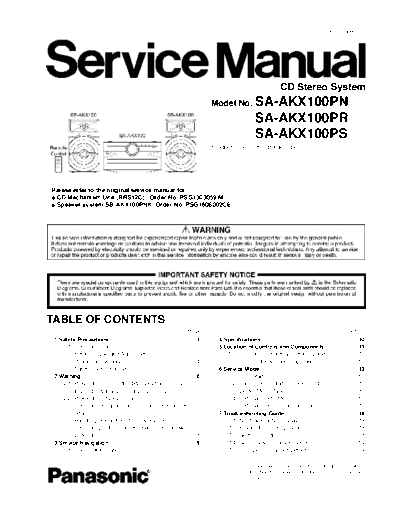

Image preview - the first page of the document
Panasonic_SA_AKX100PN_SA_AKX100PR_SA_AKX100PS


>> Download Panasonic_SA_AKX100PN_SA_AKX100PR_SA_AKX100PS documenatation <<

Text preview - extract from the document
                                                                                                                                      PSG1608001CE




                                                                                                              CD Stereo System
                                                                              Model No. SA-AKX100PN
                                                                                                 SA-AKX100PR
                                                                                                 SA-AKX100PS
                                                                              Product Color: (K)...Black Type




Please refer to the original service manual for:
  CD Mechanism Unit (BRS12C) , Order No. PSG1303059AE
  Speaker system SB-AKX100PNK, Order No. PSG1608002CE




TABLE OF CONTENTS
                                                                    PAGE                                                                          PAGE
 1 Safety Precautions----------------------------------------------- 3          4 Specifications ---------------------------------------------------- 10
    1.1. General Guidelines---------------------------------------- 3           5 Location of Controls and Components------------------ 11
    1.2. Before Repair and Adjustment ------------------------- 4                   5.1. Remote Control Key Button Operation ------------- 11
    1.3. Protection Circuitry ---------------------------------------- 4            5.2. Main Unit Key Button Operation---------------------- 12
    1.4. Safety Parts Information --------------------------------- 5           6 Service Mode ----------------------------------------------------- 13
 2 Warning -------------------------------------------------------------- 6         6.1. Cold-Start -------------------------------------------------- 13
    2.1. Prevention of Electrostatic Discharge (ESD)                                6.2. Sales Demonstration Lock Function ---------------- 13
         to Electrostatically Sensitive (ES) Devices---------- 6                    6.3. Doctor Mode Table--------------------------------------- 14
    2.2. Precaution of Laser Diode------------------------------- 6                 6.4. Self-Diagnostic Mode ----------------------------------- 16
    2.3. General description about Lead Free Solder                                 6.5. Self-Diagnostic Error Code Table -------------------- 16
         (PbF)---------------------------------------------------------- 7      7 Troubleshooting Guide --------------------------------------- 18
    2.4. Handling Precautions for Traverse Unit-------------- 7                     7.1. No Power or No Display-------------------------------- 18
    2.5. Grounding for electrostatic breakdown                                      7.2. Bluetooth
