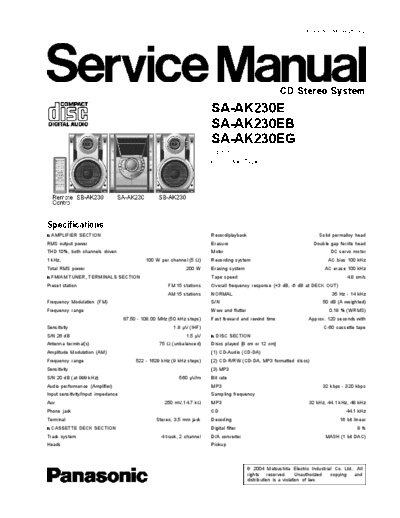

Image preview - the first page of the document
MD0412604C2_A_SA-AK230E


>> Download MD0412604C2_A_SA-AK230E documenatation <<

Text preview - extract from the document
                                                                                                                   ORDER NO. MD0412604C2




                                                                                                         CD Stereo System
                                                                         SA-AK230E
                                                                         SA-AK230EB
                                                                         SA-AK230EG
                                                                         Colour
                                                                         (S)... Silver Type




Specifications
n AMPLIFIER SECTION                                                      Record/playback                                  Solid permalloy head
RMS output power                                                         Erasure                                        Double gap ferrite head
THD 10%, both channels driven                                            Motor                                                  DC servo motor
1 kHz,                                       100 W per channel (5 )      Recording system                                      AC bias 100 kHz
Total RMS power                                                200 W     Erasing system                                      AC erase 100 kHz
n FM/AM TUNER, TERMINALS SECTION                                         Tape speed                                                    4.8 cm/s
Preset station                                         FM 15 stations    Overall frequency response (+3 dB, -6 dB at DECK OUT)
                                                       AM 15 stations    NORMAL                                                 35 Hz - 14 kHz
Frequency Modulation (FM)                                                S/N                                                50 dB (A weighted)
Frequency range                                                          Wow and flutter                                       0.18 % (WRMS)
                                    87.50 - 108.00 MHz (50 kHz steps)    Fast forward and rewind time                 Approx. 120 seconds with
Sensitivity                                              1.8
