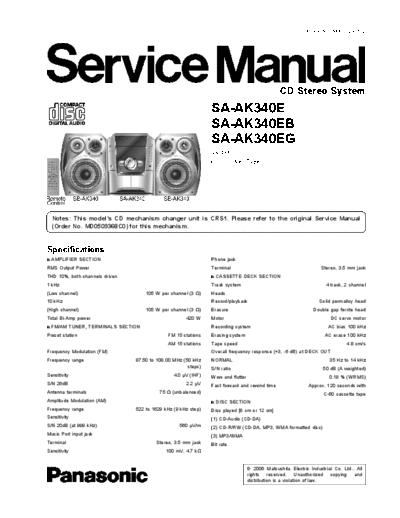

Image preview - the first page of the document
>> Download MD0512471C2_A_SA-AK340E documenatation <<
Text preview - extract from the document
ORDER NO. MD0512471C2
CD Stereo System
SA-AK340E
SA-AK340EB
SA-AK340EG
Colour
(S)... Silver Type
Notes: This model's CD mechanism changer unit is CRS1. Please refer to the original Service Manual
(Order No. MD0509368C0) for this mechanism.
Specifications
n AMPLIFIER SECTION Phone jack
RMS Output Power Terminal Stereo, 3.5 mm jack
THD 10%, both channels driven n CASSETTE DECK SECTION
1 kHz Track system 4 track, 2 channel
(Low channel) 105 W per channel (3 ) Heads
10 kHz Record/playback Solid permalloy head
(High channel) 105 W per channel (3 ) Erasure Double gap ferrite head
Total Bi-Amp power 420 W Motor DC servo motor
n FM/AM TUNER, TERMINALS SECTION Recording system AC bias 100 kHz
Preset station FM 15 stations Erasing system AC erase 100 kHz
AM 15 stations Tape speed 4.8 cm/s
Frequency Modulation (FM) Overall frequency response (+3, -6 dB) at DECK OUT
Frequency range 87.50 to 108.00 MHz (50 kHz NORMAL 35 Hz to 14 kHz
steps) S/N ratio 50 dB (A weighted)
Sensitivity 4.0 ◦ Jabse Service Manual Search 2024 ◦ Jabse Pravopis ◦ onTap.bg ◦ Other service manual resources online : Fixya ◦ eServiceinfo
