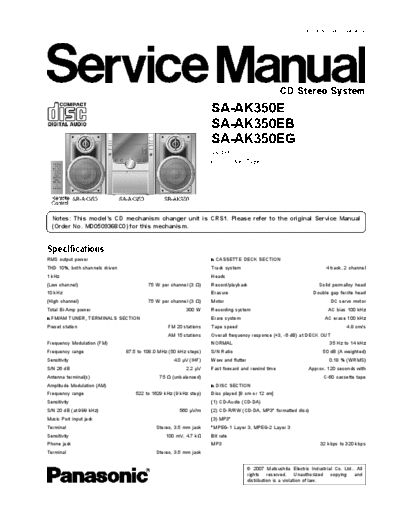

Image preview - the first page of the document
>> Download MD0704048CE_A_SA-AK350E documenatation <<
Text preview - extract from the document
ORDER NO. MD0704048CE
CD Stereo System
SA-AK350E
SA-AK350EB
SA-AK350EG
Colour
(S)... Silver Type
Notes: This model's CD mechanism changer unit is CRS1. Please refer to the original Service Manual
(Order No. MD0509368C0) for this mechanism.
Specifications
RMS output power n CASSETTE DECK SECTION
THD 10%, both channels driven Track system 4 track, 2 channel
1 kHz Heads
(Low channel) 75 W per channel (3 ) Record/playback Solid permalloy head
10 kHz Erasure Double gap ferrite head
(High channel) 75 W per channel (3 ) Motor DC servo motor
Total Bi-Amp power 300 W Recording system AC bias 100 kHz
n FM/AM TUNER, TERMINALS SECTION Erare system AC erase 100 kHz
Preset station FM 20 stations Tape speed 4.8 cm/s
AM 15 stations Overall frequency response (+3, -6 dB) at DECK OUT
Frequency Modulation (FM) NORMAL 35 Hz to 14 kHz
Frequency range 87.5 to 108.0 MHz (50 kHz steps) S/N Ratio 50 dB (A weighted)
