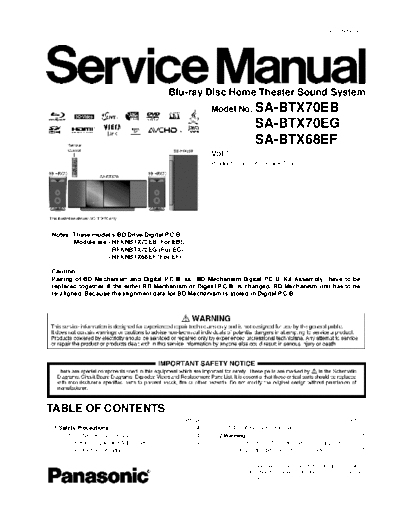

Image preview - the first page of the document
>> Download PSG0905004CE_PRINTDB documenatation <<Text preview - extract from the document PSG0905004CE
Blu-ray Disc Home Theater Sound System
Model No. SA-BTX70EB
SA-BTX70EG
SA-BTX68EF
Vol.1
Product Color: (K)...Black Type
Notes: These model's BD Drive/Digital P.C.B.
Module are - RFKNBTX70EB (For EB);
- RFKNBTX70EG (For EG);
- RFKNBTX68EF (For EF)
Caution:
Pairing of BD Mechanism and Digital P.C.B. as "BD Mechanism/Digital P.C.B. Kit Assembly" have to be
replaced together. If the either BD Mechanism or Digital P.C.B. is changed, BD Mechanism unit has to be
re-aligned. Because the alignment data for BD Mechanism is stored in Digital P.C.B.
TABLE OF CONTENTS
PAGE PAGE
1 Safety Precautions----------------------------------------------- 4 1.4. Safety Parts Information----------------------------------6
1.1. GENERAL GUIDELINES -------------------------------- 4 2 Warning --------------------------------------------------------------7
1.2. Before Repair and Adjustment ------------------------- 4 2.1. Prevention of Electrostatic Discharge (ESD)
1.3. Protection Circuitry ---------------------------------------- 4 to Electrostatic Sensitive (ES) Devices---------------7
