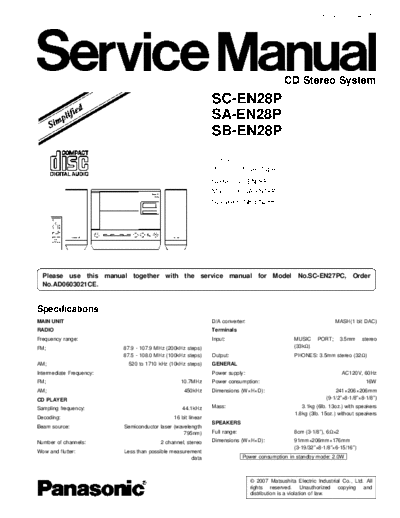

Image preview - the first page of the document
>> Download panasonic_sa-en28_ssm documenatation <<
Text preview - extract from the document
ORDER NO.AD0704007AE
A6
CD Stereo System
SC-EN28P
SA-EN28P
SB-EN28P
Colour
(S)............Silver Type
System SC-EN28P
Main Unit: SA-EN28P
Speakers: SB-EN28P
Please use this manual together with the service manual for Model No.SC-EN27PC, Order
No.AD0603021CE.
Specifications
MAIN UNIT D/A converter: MASH(1 bit DAC)
RADIO Terminals
Frequency range: Input: MUSIC PORT; 3.5mm stereo
FM; 87.9 - 107.9 MHz (200kHz steps) (33k)
87.5 - 108.0 MHz (100kHz steps) Output: PHONES: 3.5mm stereo (32)
AM; 520 to 1710 kHz (10kHz steps) GENERAL
Intermediate Frequency: Power supply: AC120V, 60Hz
FM; 10.7MHz Power consumption: 16W
AM; 450kHz Dimensions (W◦ Jabse Service Manual Search 2024 ◦ Jabse Pravopis ◦ onTap.bg ◦ Other service manual resources online : Fixya ◦ eServiceinfo
