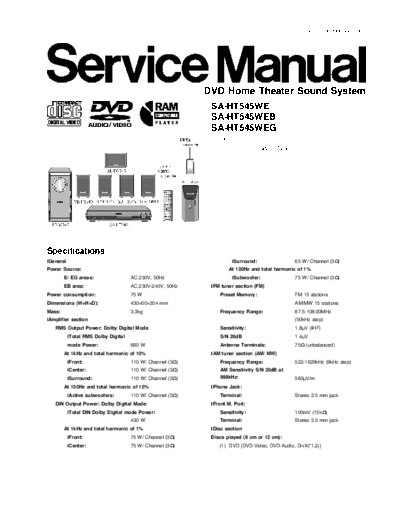

Image preview - the first page of the document
hfe_panasonic_sa-ht545_service


>> Download hfe_panasonic_sa-ht545_service documenatation <<

Text preview - extract from the document
                                                                                                        ORDER NO.MD0604129C2




                                                           DVD Home Theater Sound System
                                                            SA-HT545WE
                                                            SA-HT545WEB
                                                            SA-HT545WEG
                                                            Colour
                                                            (S).......................Silver Type




Specifications
lGeneral                                                             lSurround:                     65 W/ Channel (3)
Power Source:                                                       At 100Hz and total harmonic of 1%
        E/ EG areas:                  AC 230V, 50Hz                  lSubwoofer:                    75 W/ Channel (3)
        EB area:                      AC 230V-240V, 50Hz    lFM tuner section (FM)
Power consumption:                    75 W                      Preset Memory:                      FM 15 stations
