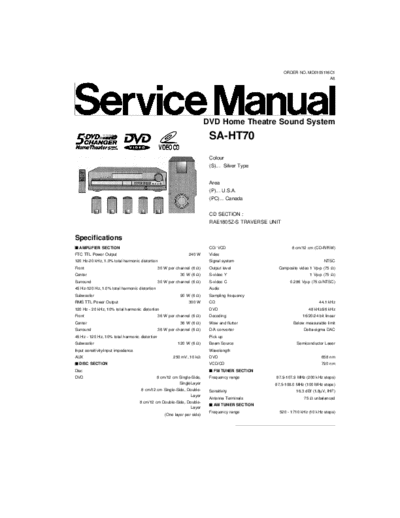

Image preview - the first page of the document
>> Download hfe_panasonic_sa-ht70_service_en documenatation <<Text preview - extract from the document ORDER NO. MD0105116C1
A6
DVD Home Theatre Sound System
SA-HT70
Colour
(S)... Silver Type
Area
(P)... U.S.A.
(PC)... Canada
CD SECTION :
RAE1805Z-S TRAVERSE UNIT
Specifications
s AMPLIFIER SECTION CD/ VCD 8 cm/12 cm (CD-R/RW)
FTC TTL Power Output 240 W Video
120 Hz-20 kHz, 1.0% total harmonic distortion Signal system NTSC
Front 30 W per channel (6 ) Output level Composite video 1 Vp-p (75 )
Center 30 W (6 ) S-video Y 1 Vp-p (75 )
Surround 30 W per channel (6 ) S-video C 0.286 Vp-p (75 /NTSC)
45 Hz-120 Hz, 1.0% total harmonic distortion Audio
Subwoofer 90 W (6 ) Sampling frequency
RMS TTL Power Output 300 W CD 44.1 kHz
120 Hz - 20 kHz, 10% total harmonic distortion DVD 48 kHz/96 kHz
Front 36 W per channel (6 ) Decoding 16/20/24 bit linear
Center 36 W (6 ) Wow and flutter Below measurable limit
Surround 36 W per channel (6 ) D/A converter Delta-sigma DAC
45 Hz - 120 Hz, 10% total harmonic distortion Pick up
Subwoofer 120 W (6 ) Beam Source Semiconductor Laser
Input sensitivity/input impedance Wavelength
AUX 250 mV, 10 k DVD 658 nm
s DISC SECTION VCD/CD 790 nm
Disc s FM TUNER SECTION
DVD 8 cm/12 cm Single-Side, Frequency range 87.9-107.9 MHz (200 kHz steps)
SingleLayer 87.5-108.0 MHz (100 MHz steps)
8 cm/12 cm Single-Side, Double- Sensitivity 16.3 dBf (1.8
