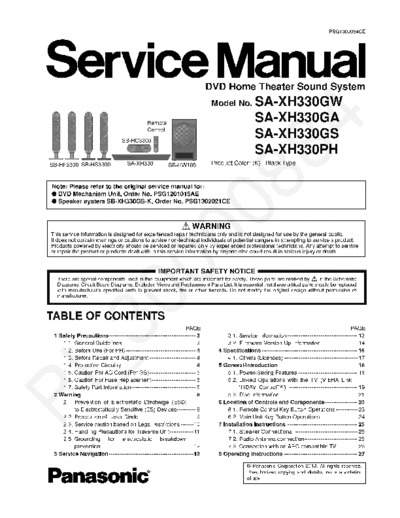

Image preview - the first page of the document
panasonic_sa_hx330


>> Download panasonic_sa_hx330 documenatation <<

Text preview - extract from the document
                                                                                                                                         PSG1303054CE




                                                                              DVD Home Theater Sound System
                                                                               Model No. SA-XH330GW
                                                                                                    SA-XH330GA
                                                                                                    SA-XH330GS
                                                                                                    SA-XH330PH
                                                                               Product Color: (K)...Black Type


Note: Please refer to the original service manual for:
  DVD Mechanism Unit, Order No. PSG1201015AE
  Speaker system SB-XH330GS-K, Order No. PSG1302021CE




TABLE OF CONTENTS
                                                                    PAGE                                                                            PAGE
 1 Safety Precautions----------------------------------------------- 3                 3.1. Service Information -------------------------------------- 13
    1.1. General Guidelines---------------------------------------- 3                  3.2. Firmware Version-Up Information-------------------- 14
    1.2. Before Use (For PH) -------------------------------------- 4            4   Specifications ---------------------------------------------------- 16
    1.3. Before Repair and Adjustment ------------------------- 4                      4.1. Others (Licences) ---------------------------------------- 17
    1.4. Protection Circuitry ---------------------------------------- 4         5   General/Introduction------------------------------------------- 18
    1.5. Caution For AC Cord (For GS)------------------------- 5                       5.1. Power-Saving Features -------------------------------- 18
    1.6. Caution For Fuse Replacement------------------------ 6                        5.2. Linked Operations with the TV (VIERA Link
    1.7. Safety Part Information----------------------------------- 6                       "HDAVI ControlTM") ------------------------------------- 19
 2 Warning -------------------------------------------------------------- 8            5.3. Disc Information ------------------------------------------ 21
    2.1. Prevention of Electrostatic Discharge (ESD)                             6   Location of Controls and Components------------------ 23
         to Electrostatically Sensitive (ES) Devices---------- 8                       6.1. Remote Control Key Button Operations------------ 23
    2.2. Precaution of Laser Diode------------------------------- 9                    6.2. Main Unit Key Button Operations -------------------- 24
    2.3. Service caution based on Legal restrictions -------10                   7   Installation Instructions -------------------------------------- 25
    2.4. Handling Precautions for Traverse Unit------------- 11                        7.1. Speaker Connections ---------------------------------- 25
    2.5. Grounding for electrostatic breakdown                                         7.2. Radio Antenna connection----------------------------- 25
         prevention --------------------------------------------------12               7.3. Connection with an ARC compatible TV ----------- 26
 3 Service Navigation ----------------------------------------------13           8   Operating Instructions ---------------------------------------- 27
