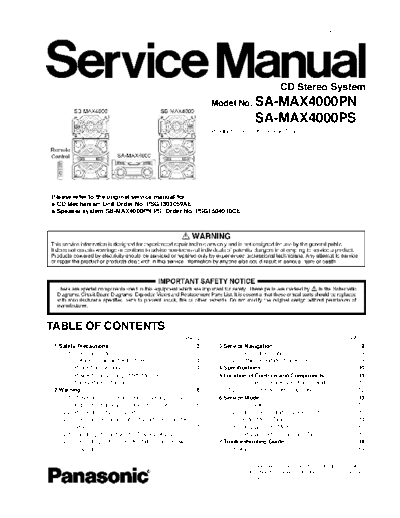

Image preview - the first page of the document
>> Download PSG1504011CE_PRINTDB documenatation <<
Text preview - extract from the document
PSG1504011CE
CD Stereo System
Model No. SA-MAX4000PN
SA-MAX4000PS
Product Color: (K)...Black Type
Please refer to the original service manual for:
CD Mechanism Unit Order No. PSG1303059AE
Speaker system SB-MAX4000PN/PS, Order No. PSG1504010CE
TABLE OF CONTENTS
PAGE PAGE
1 Safety Precautions----------------------------------------------- 3 3 Service Navigation -----------------------------------------------9
1.1. General Guidelines---------------------------------------- 3 3.1. Service Information ----------------------------------------9
1.2. Before Repair and Adjustment ------------------------- 4 3.2. Software Update Procedure-----------------------------9
1.3. Protection Circuitry ---------------------------------------- 4 4 Specifications ---------------------------------------------------- 10
1.4. Power Supply using SMPS Module------------------- 5 5 Location of Controls and Components------------------ 11
1.5. Safety Parts Information -------------------------------- 5 5.1. Remote Control Key Button Operation ------------- 11
2 Warning -------------------------------------------------------------- 6 5.2. Main Unit Key Button Operation---------------------- 12
2.1. Prevention of Electrostatic Discharge (ESD) 6 Service Mode ----------------------------------------------------- 13
to Electrostatically Sensitive (ES) Devices---------- 6 6.1. Cold-Start -------------------------------------------------- 13
2.2. Precaution of Laser Diode------------------------------- 6 6.2. Sales Demonstration Lock Function ---------------- 13
2.3. General description about Lead Free Solder 6.3. Doctor Mode Table--------------------------------------- 14
(PbF)---------------------------------------------------------- 7 6.4. Self-Diagnostic Mode ----------------------------------- 16
2.4. Handling Precautions for Traverse Ass'y------------ 7 6.5. Self-Diagnostic Error Code Table -------------------- 16
2.5. Grounding for electrostatic breakdown 7 Troubleshooting Guide --------------------------------------- 19
prevention --------------------------------------------------- 8 7.1. Audio -------------------------------------------------------- 19
