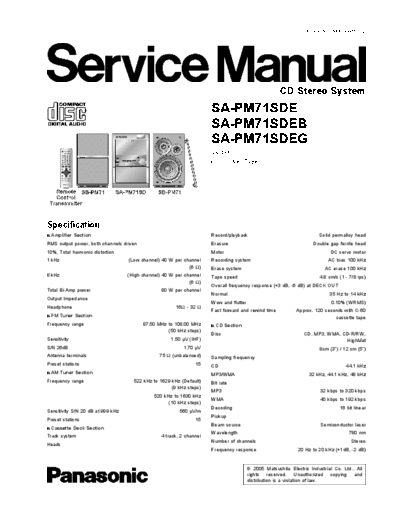

Image preview - the first page of the document



>> Download MD0504157C2_A_SA-PM71SDE documenatation <<

Text preview - extract from the document

                                                                                                                ORDER NO. MD0504157C2




                                                                                                      CD Stereo System
                                                                      SA-PM71SDE
                                                                      SA-PM71SDEB
                                                                      SA-PM71SDEG
                                                                      Colour
                                                                      (S)... Silver Type




Specification
n Amplifier Section                                                   Record/playback                                  Solid permalloy head
RMS output power, both channels driven                                Erasure                                        Double gap ferrite head
10%, Total harmonic distortion                                        Motor                                                  DC servo motor
1 kHz                              (Low channel) 40 W per channel     Recording system                                      AC bias 100 kHz
                                                            (6 )      Erase system                                        AC erase 100 kHz
8 kHz                              (High channel) 40 W per channel    Tape speed                                        4.8 cm/s (1 - 7/8 ips)
                                                             (6 )
                                                                      Overall frequency response (+3 dB, -6 dB) at DECK OUT
Total Bi-Amp power                               80 W per channel
                                                                      Normal                                                35 Hz to 14 kHz
Output Impedance
                                                                      Wow and flutter                                        0.10% (WRMS)
Headphone                                              16 - 32
                                                                      Fast forward and rewind time           Approx. 120 seconds with C-60
n FM Tuner Section                                                                                                           cassette tape
Frequency range                          87.50 MHz to 108.00 MHz      n CD Section
                                                   (50 kHz steps)
                                                                      Disc                                       CD, MP3, WMA, CD-R/RW,
Sensitivity                                          1.50
