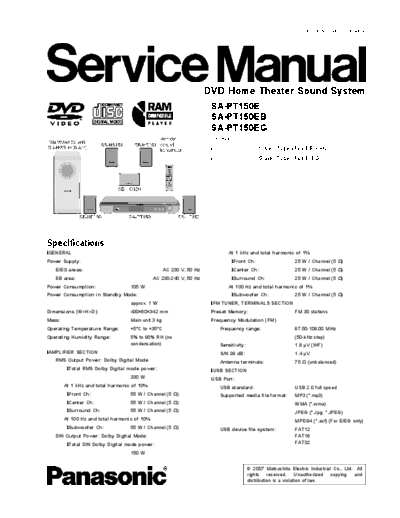

Image preview - the first page of the document
>> Download MD0703044CE_A_SA-PT150E documenatation <<Text preview - extract from the document ORDER NO. MD0703044CE
DVD Home Theater Sound System
SA-PT150E
SA-PT150EB
SA-PT150EG
Colour
(S).......................Silver Type (For EB only)
(K).......................Black Type (For E/EG)
Specifications
lGENERAL At 1 kHz and total harmonic of 1%
Power Supply: lFront Ch: 25 W / Channel (5 )
E/EG areas: AC 230 V, 50 Hz lCenter Ch: 25 W / Channel (5 )
EB area: AC 230-240 V, 50 Hz lSurround Ch: 25 W / Channel (5 )
Power Consumption: 105 W At 100 Hz and total harmonic of 1%
Power Consumption in Standby Mode: lSubwoofer Ch: 25 W / Channel (5 )
approx. 1 W lFM TUNER, TERMINALS SECTION
