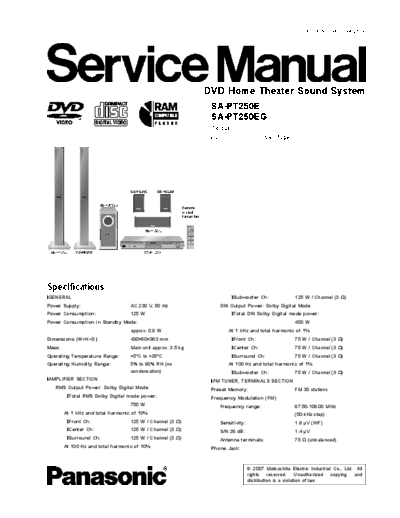

Image preview - the first page of the document



>> Download MD0704021CE_A_SA-PT250E documenatation <<

Text preview - extract from the document

                                                                                                          ORDER NO. MD0704021CE




                                                              DVD Home Theater Sound System
                                                               SA-PT250E
                                                               SA-PT250EG
                                                               Colour
                                                               (S).......................Silver Type




Specifications
lGENERAL                                                                lSubwoofer Ch:                 125 W / Channel (3 )
Power Supply:                      AC 230 V, 50 Hz                 DIN Output Power: Dolby Digital Mode
Power Consumption:                 125 W                                lTotal DIN Dolby Digital mode power:
Power Consumption in Standby Mode:                                                                     450 W
                                   approx. 0.8 W                       At 1 kHz and total harmonic of 1%
Dimensions (W
