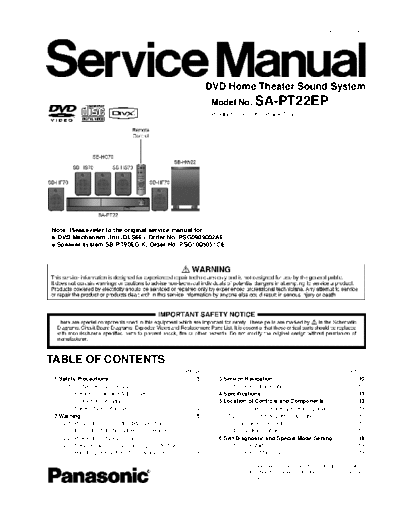

Image preview - the first page of the document



>> Download PSG1007013CE_PRINTDB documenatation <<

Text preview - extract from the document

                                                                                                                                       PSG1007013CE




                                                                              DVD Home Theater Sound System
                                                                               Model No. SA-PT22EP
                                                                               Product Color: (K)...Black Type




Note: Please refer to the original service manual for:
 DVD Mechanism Unit (DLS6E), Order No. PSG0909002AE
 Speaker system SB-PT90EG-K, Order No. PSG1005051CE




TABLE OF CONTENTS
                                                                    PAGE                                                                          PAGE
 1 Safety Precautions----------------------------------------------- 3           3 Service Navigation --------------------------------------------- 10
    1.1. GENERAL GUIDELINES -------------------------------- 3                      3.1. Service Information -------------------------------------- 10
    1.2. Before Repair and Adjustment ------------------------- 3                4 Specifications ---------------------------------------------------- 11
    1.3. Protection Circuitry ---------------------------------------- 4         5 Location of Controls and Components------------------ 13
    1.4. Safety Parts Information --------------------------------- 4               5.1. Remote Control Key Button Operations------------ 13
 2 Warning -------------------------------------------------------------- 5         5.2. Main Unit Key Button Operations -------------------- 14
    2.1. Prevention of Electrostatic Discharge (ESD)                                5.3. Speaker Connection------------------------------------- 15
         to Electrostatic Sensitive (ES) Devices -------------- 5                   5.4. Disc Information ------------------------------------------ 16
    2.2. Precaution of Laser Diode------------------------------- 6              6 Self-Diagnostic and Special Mode Setting ------------- 18
    2.3. Service caution based on Legal restrictions -------- 7                     6.1. Cold-Start -------------------------------------------------- 18
    2.4. Handling Precautions for Traverse Unit-------------- 8                     6.2. Service Mode Table ------------------------------------- 18
