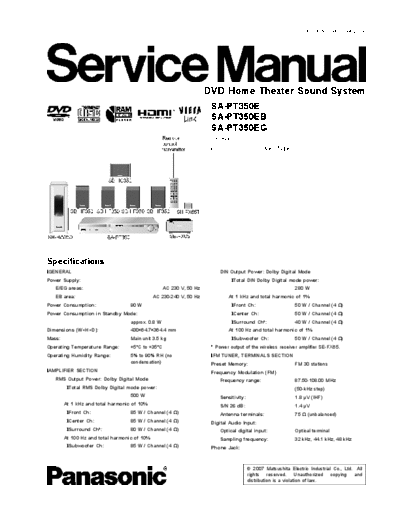

Image preview - the first page of the document



>> Download panasonic_sa-pt350_[ET] documenatation <<

Text preview - extract from the document

                                                                                                                 ORDER NO. MD0704027CE




                                                                     DVD Home Theater Sound System
                                                                      SA-PT350E
                                                                      SA-PT350EB
                                                                      SA-PT350EG
                                                                      Colour
                                                                      (S).......................Silver Type




Specifications
lGENERAL                                                                  DIN Output Power: Dolby Digital Mode
Power Supply:                                                                  lTotal DIN Dolby Digital mode power:
   E/EG areas:                                     AC 230 V, 50 Hz                                            280 W
   EB area:                                   AC 230-240 V, 50 Hz             At 1 kHz and total harmonic of 1%
Power Consumption:                 90 W                                        lFront Ch:                     50 W / Channel (4 )
Power Consumption in Standby Mode:                                             lCenter Ch:                    50 W / Channel (4 )
                                   approx. 0.8 W                               lSurround Ch*:                 40 W / Channel (4 )
Dimensions (W
