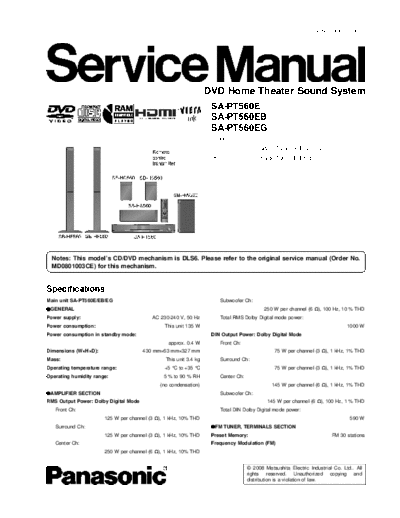

>> Download MD0801008CE_PRINTDB documenatation <<Text preview - extract from the document ORDER NO. MD0801008CE
DVD Home Theater Sound System
SA-PT560E
SA-PT560EB
SA-PT560EG
Colour
(S).......................Silver Type (E/EG only)
(K).......................Black Type (E/EB/EG)
Notes: This model's CD/DVD mechanism is DLS6. Please refer to the original service manual (Order No.
MD0801003CE) for this mechanism.
Specifications
Main unit SA-PT560E/EB/EG Subwoofer Ch:
GENERAL 250 W per channel (6 ), 100 Hz, 10 % THD
Power supply: AC 230-240 V, 50 Hz Total RMS Dolby Digital mode power:
Power consumption: This unit 135 W 1000 W
Power consumption in standby mode: DIN Output Power: Dolby Digital Mode
approx. 0.4 W Front Ch:
Dimensions (W
