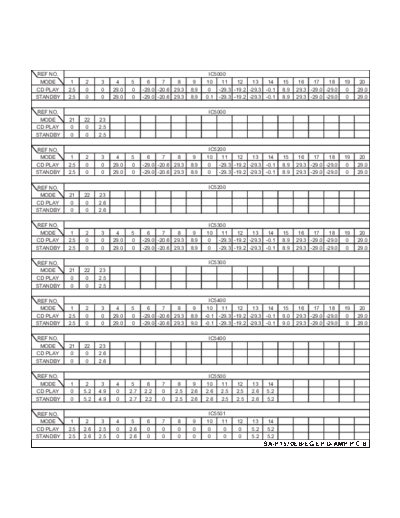

Text preview - extract from the document
REF NO.                                                            IC5000
 MODE      1    2     3      4     5       6     7    8      9    10     11    12    13    14    15     16   17    18     19    20
CD PLAY   2.5   0     0     29.0   0     -29.0 -20.6 29.3   8.9    0    -29.3 -19.2 -29.3 -0.1   8.9   29.3 -29.0 -29.0    0   29.0
STANDBY   2.5   0     0     29.0   0     -29.0 -20.6 29.3   8.9   0.1   -29.3 -19.2 -29.3 -0.1   8.9   29.3 -29.0 -29.0    0   29.0

REF NO.                                                            IC5000
 MODE     21    22    23
CD PLAY    0     0    2.5
STANDBY    0     0    2.5

REF NO.                                                            IC5200
 MODE      1    2     3      4     5       6     7    8      9    10     11    12    13    14    15     16   17    18     19    20
CD PLAY   2.5   0     0     29.0   0     -29.0 -20.6 29.3   8.9    0    -29.3 -19.2 -29.3 -0.1   8.9   29.3 -29.0 -29.0    0   29.0
STANDBY   2.5   0     0     29.0   0     -29.0 -20.6 29.3   8.9    0    -29.3 -19.2 -29.3 -0.1   8.9   29.3 -29.0 -29.0    0   29.0

REF NO.                                                            IC5200
 MODE     21    22    23
CD PLAY    0     0    2.6
STANDBY    0     0    2.6

REF NO.                                                            IC5300
 MODE      1    2     3      4     5       6     7    8      9    10     11    12    13    14    15     16   17    18     19    20
CD PLAY   2.5   0     0     29.0   0     -29.0 -20.6 29.3   8.9    0    -29.3 -19.2 -29.3 -0.1   8.9   29.3 -29.0 -29.0    0   29.0
STANDBY   2.5   0     0     29.0   0     -29.0 -20.6 29.3   8.9    0    -29.3 -19.2 -29.3 -0.1   8.9   29.3 -29.0 -29.0    0   29.0

REF NO.                                                            IC5300
 MODE     21    22    23
CD PLAY    0     0    2.5
STANDBY    0     0    2.5

REF NO.                                                            IC5400
 MODE      1    2     3      4     5       6     7    8      9     10   11    12    13    14     15     16   17    18     19    20
CD PLAY   2.5   0     0     29.0   0     -29.0 -20.6 29.3   8.9   -0.1 -29.3 -19.2 -29.3 -0.1    9.0   29.3 -29.0 -29.0    0   29.0
STANDBY   2.5   0     0     29.0   0     -29.0 -20.6 29.3   9.0   -0.1 -29.3 -19.2 -29.3 -0.1    9.0   29.3 -29.0 -29.0    0   29.0

REF NO.                                                            IC5400
 MODE     21    22    23
CD PLAY    0     0    2.6
STANDBY    0     0    2.6

REF NO.                                                            IC5500
 MODE     1      2     3     4      5     6     7     8      9    10    11    12    13     14
CD PLAY   0     5.2   4.9    0     2.7   2.2    0    2.5    2.6   2.6   2.5   2.5   2.6    5.2
STANDBY   0     5.2   4.9    0     2.7   2.2    0    2.5    2.6   2.6   2.5   2.5   2.6    5.2

REF NO.                                                            IC5501
 MODE      1     2     3     4      5     6     7     8     9     10     11    12   13     14
CD PLAY   2.5   2.6   2.5    0     2.6    0     0     0     0      0      0     0   5.2    5.2
STANDBY   2.5   2.6   2.5    0     2.6    0     0     0     0      0      0     0   5.2    5.2
                                                                                          SA-PT570EB/EG/EP D-AMP P.C.B.
REF NO.       Q5101               Q5102             Q5601           Q5602               Q5603
 MODE     E     C     B     E       C     B     E     C    B    E     C    B       E      C      B
CD PLAY   0    5.2    0     0      5.1    0     0     0   0.7   0    0.1  0.6     5.2    5.2    4.5
STANDBY   0    5.2    0     0      5.2    0     0     0   0.7   0    0.1  0.7     5.2    5.2    4.5

REF NO.       Q5604               Q5640             Q5641           Q5642               Q5644
 MODE     E    C       B     E     C       B    E     C     B   E     C      B    E       C      B
CD PLAY   0    0      0.7   7.2   17.1    7.7   0    5.2    0   0    0.1    0.7   0      3.9    0.4
STANDBY   0    0      0.7   7.2   17.1    7.7   0    5.2    0   0    0.1    0.7   0      3.9    0.3
                                                                    SA-PT570EB/EG/EP D-AMP P.C.B.
