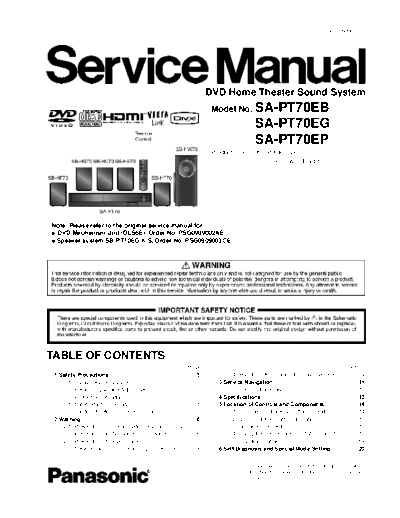

Image preview - the first page of the document
>> Download PSG0909001CE_PRINTDB documenatation <<Text preview - extract from the document PSG0909001CE
DVD Home Theater Sound System
Model No. SA-PT70EB
SA-PT70EG
SA-PT70EP
Product Color: (K)...Black Type
(S)...Silver Type (EG/EP)
Note: Please refer to the original service manual for:
DVD Mechanism Unit (DLS6E), Order No. PSG0909002AE
Speaker system SB-PT70EG-K/S, Order No. PSG0909003CE
TABLE OF CONTENTS
PAGE PAGE
1 Safety Precautions----------------------------------------------- 3 2.4. Handling Precautions for Traverse Unit --------------9
1.1. GENERAL GUIDELINES -------------------------------- 3 3 Service Navigation --------------------------------------------- 11
1.2. Before Repair and Adjustment ------------------------- 3 3.1. Service Information -------------------------------------- 11
1.3. Protection Circuitry ---------------------------------------- 4 4 Specifications ---------------------------------------------------- 12
1.4. Safety Parts Information --------------------------------- 4 5 Location of Controls and Components------------------ 14
1.5. Caution for AC Cord (For EB only)-------------------- 5 5.1. Remote Control Key Button Operations------------ 14
2 Warning -------------------------------------------------------------- 6 5.2. Main Unit Key Button Operations -------------------- 15
2.1. Prevention of Electrostatic Discharge (ESD) 5.3. Speaker Connection------------------------------------- 15
to Electrostatic Sensitive (ES) Devices -------------- 6 5.4. Using the VIERA Link "HDAVI ControlTM"---------- 16
2.2. Precaution of Laser Diode------------------------------- 7 5.5. Disc Information ------------------------------------------ 18
2.3. Service caution based on Legal restrictions -------- 8 6 Self-Diagnosis and Special Mode Setting -------------- 20
